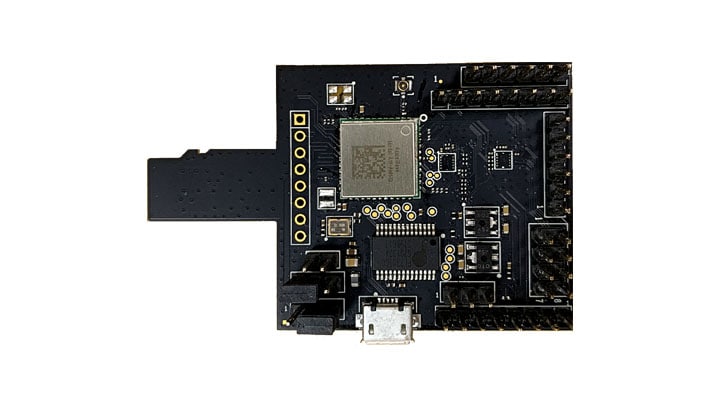

AW-AM510 Evaluation Board

AW-AM510-USD

画像にカーソルを合わせると拡大表示されます。

AW-AM510-uSD is the evaluation board of AW-AM510, which supports 802.11a/b/g/n 1x1 2.4GHz/5GHz with 12x12 LGA form-factor. It has one antenna to support 1 (Transmit) x 1 (Receive) communications. The host interface supports SDIO for Wi-Fi® and UART for Bluetooth®.

対応製品

ワイヤレス・コネクティビティ

Wi-Fi®＋Bluetooth®＋802.15.4

  • IW416: 2.4/5 GHzデュアルバンド1x1 Wi-Fi® 4 (802.11n) およびBluetooth® 5.2ソリューション

Features

Wi-Fi

  • Wi-Fi 4 802.11a/b/g/n 1x1

Bluetooth

  • Bluetooth 5.1

Interface

  • Wi-Fi for SDIO and Bluetooth for UART

Antenna Pin No.

  • 1 (Wi-Fi + Bluetooth)

Buy Options

Click to expand

  • AW-AM510-uSD

  • Azurewave AW-AM510-uSD evaluation board enables evaluation and development of the AW-AM510 802.11a/b/g/n 2.4GHz/5GHz 12x12 LGA module based on NXP's IW416 solution.

  • Kit Contains:

    • AW-AM510-uSD (with AW-AM510 module on board)
    • 75mm, 20 contacts, 0.5mm pitch FFC Cable
    • PIFA Antenna
