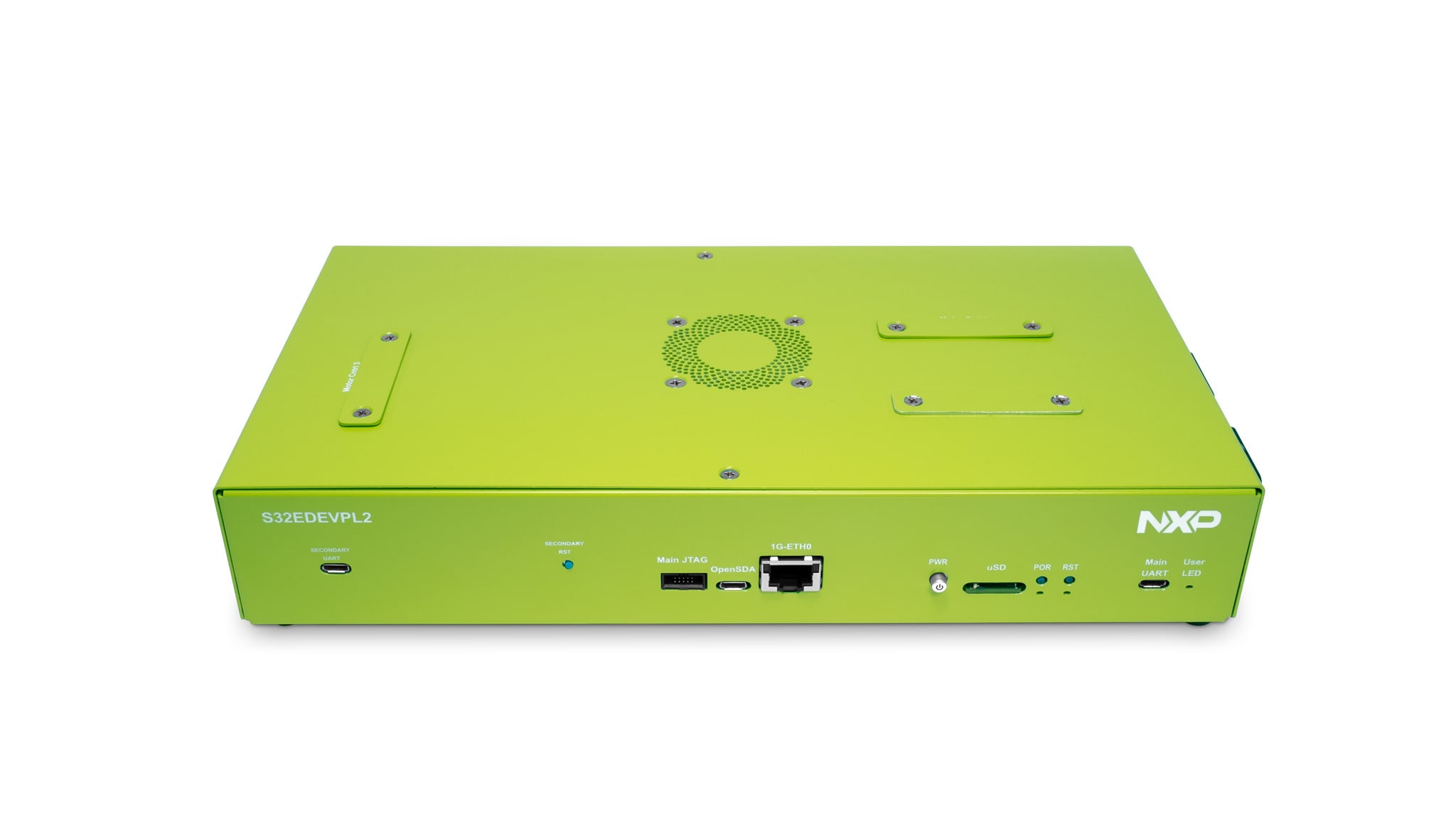

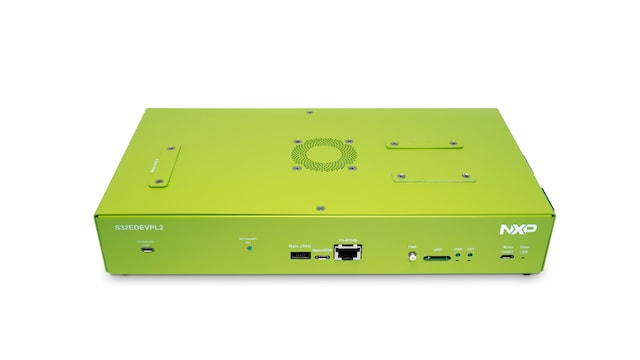

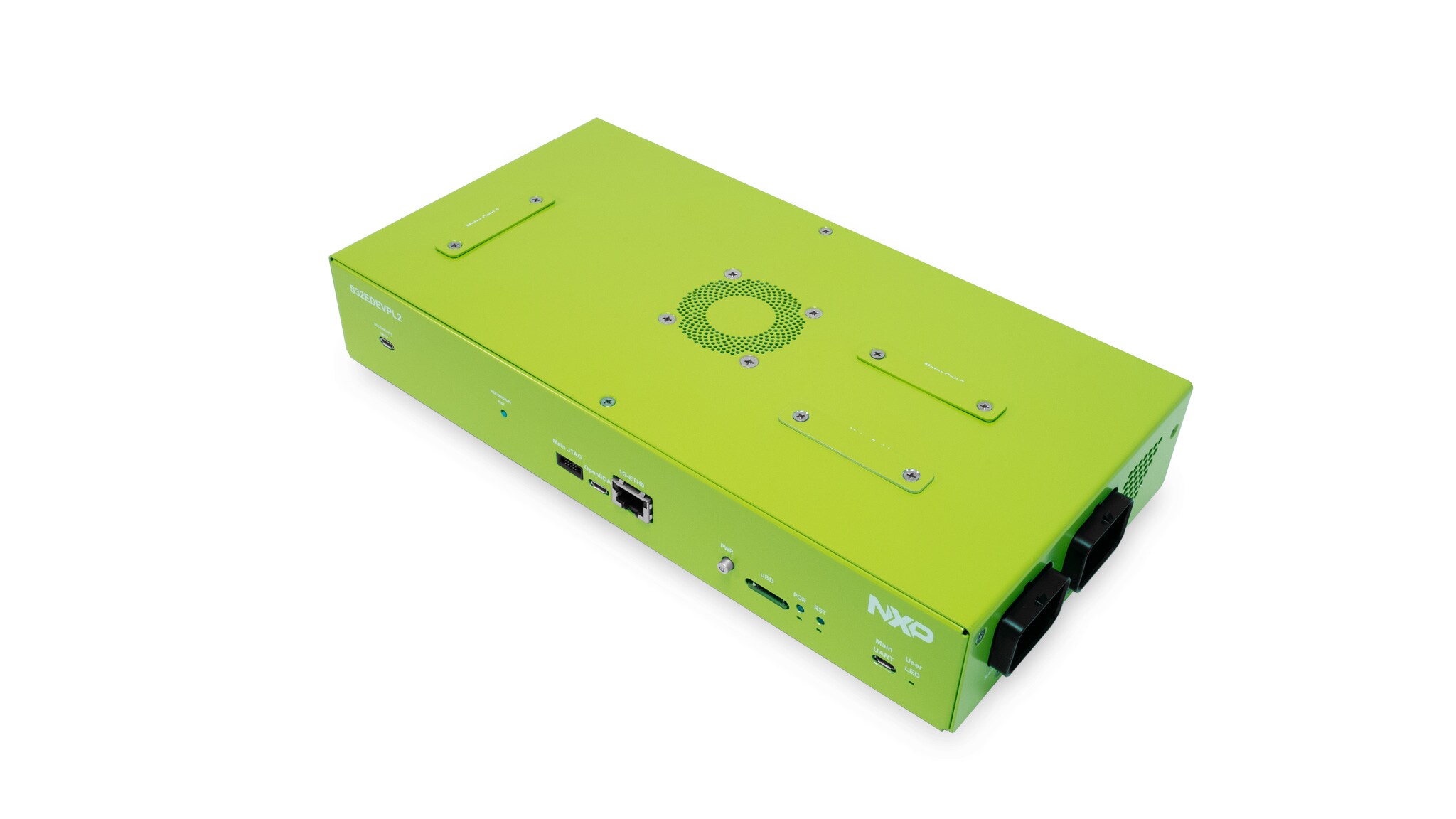

GreenBox 2 for Vehicle Electrification Development Platform
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The GreenBox 2 is no longer recommended for new designs.
For new designs please visit the GreenBox 3 webpage.

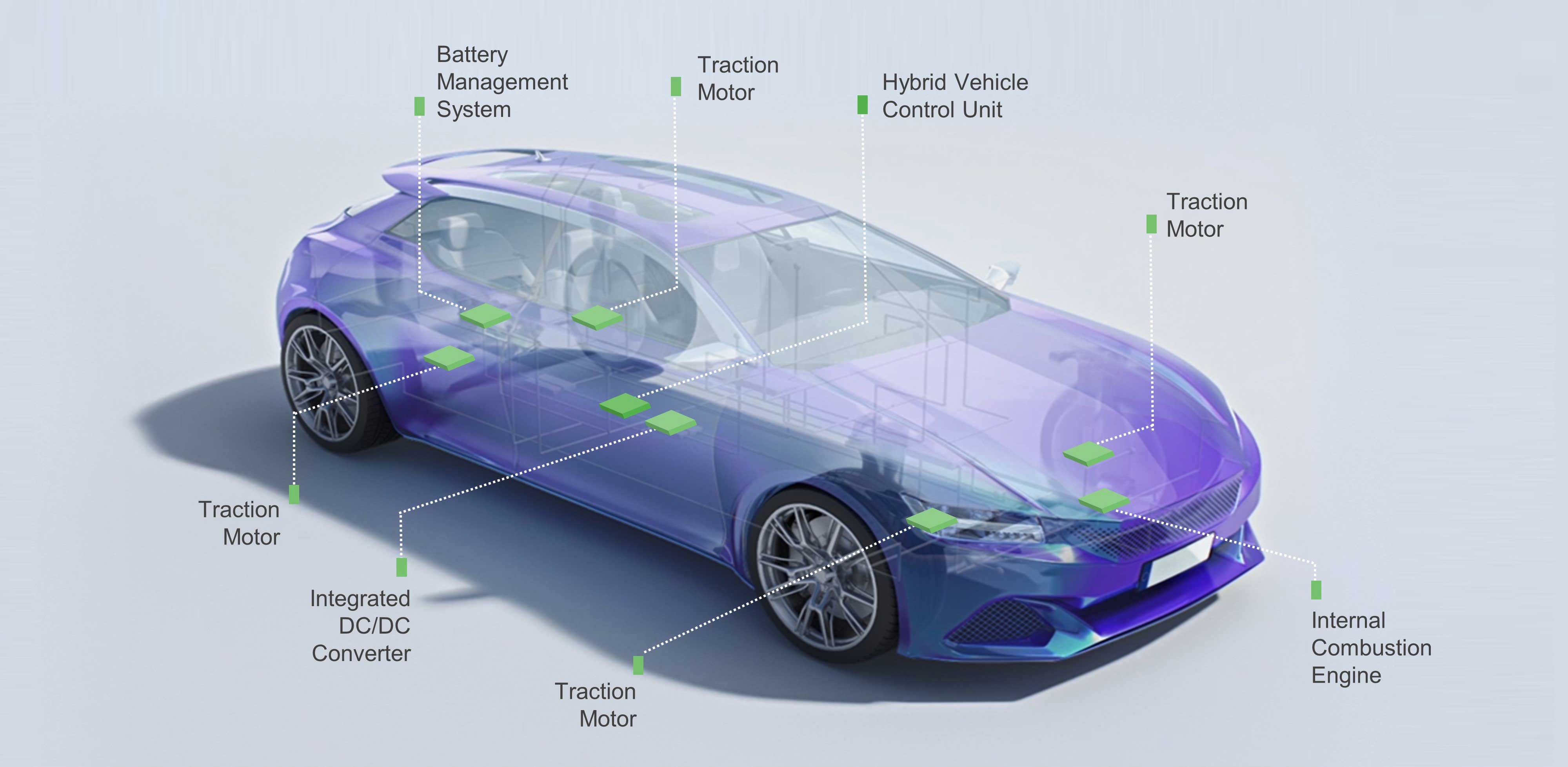

The NXP GreenBox is a development platform providing advanced performance, peripherals, and multi-core Arm® ecosystem for engineers to begin development on NXP's next generation of Hybrid Electric Vehicle (HEV) and internal combustion engine microcontrollers.
GreenBox is only available for purchase for approved customers. Please contact your local NXP sales representative for approval prior to ordering. Each order will be reviewed before being fulfilled. We apologize for any experienced inconvenience as a result of this approval process.
製品詳細

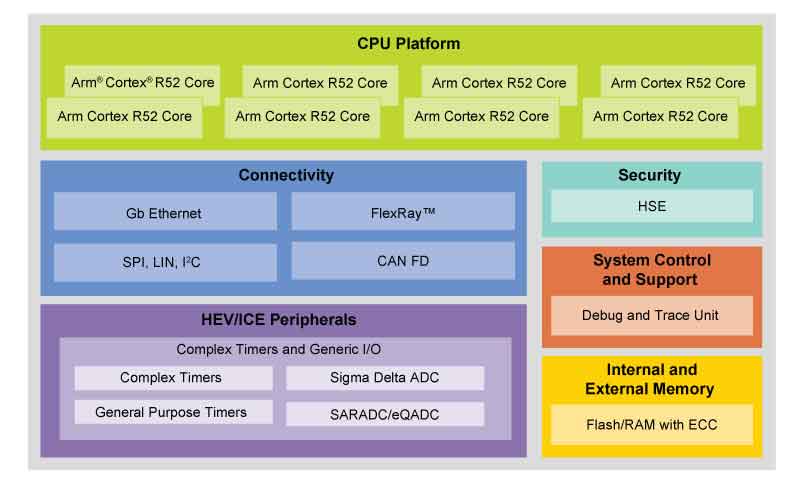

Features
Microcontroller (MCU)
- High-performance computing board with 4 x Arm® Cortex® R52-based cores running in lock-step at up to 800 MHz
Interfaces
- Gb Ethernet
- CAN FD, LIN, SDHC
- Peripheral Sensor Interface 5 (PSI5)
- Single Edge Nibble Transmission (SENT)
Connectors
- UART
- JTAG
Power
- Fully regulated switching power supply with 12 V power input
GreenBox Features
- Peripheral control board with the complex timers, filters, and analog modules to support HEV or motor control application
- Interfaces directly to standard and complex timers and ADC modules
