JN5169XK010
アクティブ -
ZigBee Generic Node Expansion Kit.
ZigBee Generic Node Expansion Kit
Note: JN5189/88T is preferred for any new design. No new software releases planned
The JN5169XK010 expansion kit contains components that form a ZigBee node based on the NXP® JN5169 wireless microcontroller. The node provides switch, level control and LED functionality. It can participate in a ZigBee wireless network which may, for example, be created using components of the JN516x-EK004 or JN516x-EK001 ZigBee Evaluation Kit. It can be introduced into the network via ZigBee commissioning or, optionally, via NFC commissioning using the NTAG® I²C kit (available separately).
Pre-programmed software:
The JN5169 module supplied in this kit is pre-programmed as a Dimmer Switch for use in the ZigBee Smart Home Demonstration provided in the JN516x-EK004 Evaluation Kit.
Re-programming:
The JN5169 module can be re-programmed via a serial connection from a PC running a JN51xx Flash Programmer utility to download a new application to the Flash memory on the JN5169 device. A suitable utility is provided in the "BeyondStudio for NXP" toolchain (JN-SW-4141).
製品詳細
対応製品
ワイヤレス・コネクティビティ
ZigBee
- JN5169: ZigBee and IEEE802.15.4 Wireless Microcontroller with 512 KB Flash, 32 KB RAM
Features

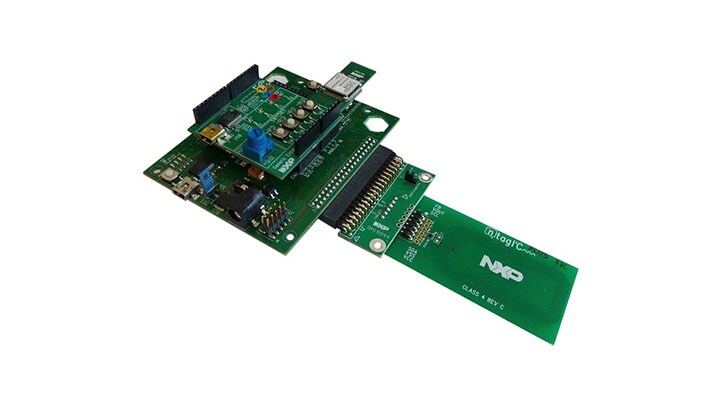

- Carrier Board (OM15043) to accommodate the expansion board and JN5169 module
Connectivity
- Adaptor (OM15044) for connecting an NTAG® I²C antenna board (not included) to the Carrier Board
- USB cable for connecting the node to a PC (e.g. for programming purposes)
- JN5169 module (JN5169-001-T00) with integrated PCB antenna for 2.4 GHz operation
Expansion Ports
- Generic Expansion Board (DR1199) featuring 4 switches, 4 LEDs, and a potentiometer
Target Applications
- ZigBee On/Off Switch or On/Off Light Switch
- ZigBee Dimmer Switch
- ZigBee Occupancy Sensor (simulated)
- ZigBee On/Off Sensor (simulated)
