Evaluation Kit - MC17XS6500, Penta High Side Switch

KIT17XS6500EVB 製造開始前

画像にカーソルを合わせると拡大表示されます。

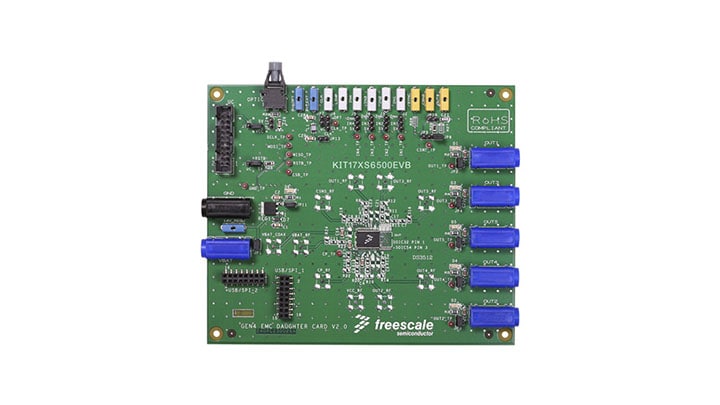

NXP’s KIT17XS6500EVB is a hardware tool for evaluation and development. This evaluation board can be used to evaluate the MC17XS6500 which is a 12 V penta high-side device that features integrated control with high flexibility, and a high number of protection and diagnostic functions.
This device is designed for low-voltage automotive lighting applications and can drive a wide range of sources, including LEDs. Programming, control and diagnostics are accomplished using a 16-bit SPI interface, which makes possible a large array of configurations, diagnostics and protection features.

製品詳細

対応製品

パワーマネージメント

ハイサイド・スイッチ

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Features

Evaluation module features

  • This evaluation board consists of an MC17XS6500 IC in a 32-pin SOICW-EP with exposed pads
  • This board can control
    • Five separate 28 W bulbs
    • Five separate LED modules
    • Five separate loads of other types
  • Device can be driven by the 16-bit SPI using KITUSBSPI with SPIGen software or with direct input signals in Fail-safe mode operation. It also offers the possibility to apply an external clock in order to drive outputs in PWM operation

MC17XS6500 features

  • Penta 17 mOhm high side switches with high transient current capability
  • 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty cycles, output-ON and -OFF OpenLoad detections, thermal shutdown and prewarning, and fault reporting
  • Output current monitoring with programmable synchronization signal and battery voltage feedback
  • Limp Home mode
  • External smart power switch control
  • Operating voltage is 7.0 to 18 V with sleep current < 5.0 µA, extended mode from 6.0 to 28 V
  • -16 V reverse polarity and ground disconnect protections
  • Compatible PCB foot print and SPI software driver among the family
