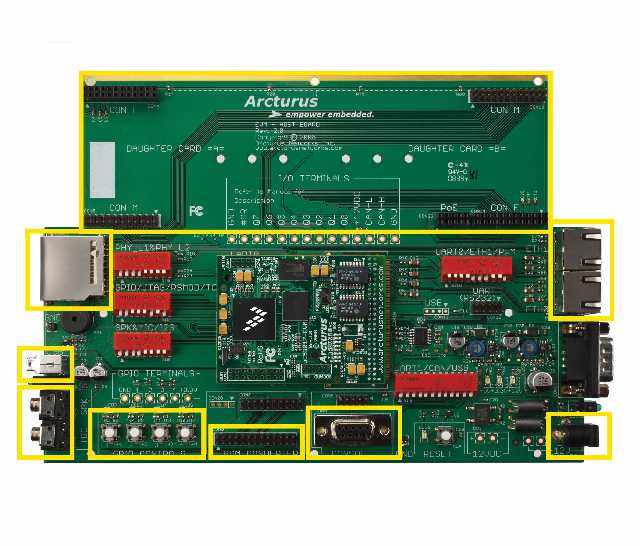

MCF5301x Development Kit

M53017KIT アーカイブス
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

Digital Voice solution kit including an NRE free full software and hardware solution specifically designed for intercom and public address applications, also suitable for IP telephony. Includes Ethernet and WiFi connectivity.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

ColdFire® V3 Processors

  • MCF5301x: Low-Power MPU with dual Ethernet, USB, and audio sub-system

Features

Microprocessor

  • MCF53017CVMJ240J processor

Memory

  • 64 MB DDR-SDRAM
  • 32 MB NOR Flash
  • CAN Transceiver

Connectivity

  • Ethernet PHY or Dual PHY

Audio

  • Audio codec/amplifier

Wireless

  • Redpine Signals RS9110 WiFi SD card

Tools and OS Support

  • VoIP software
  • All licenses for VoIP software use
