Integrated Communications Processor Development System
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

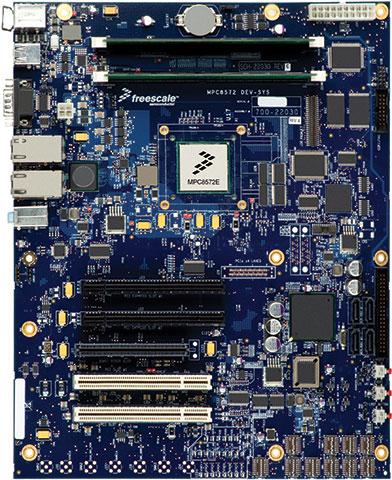

The ATX form-factor NXP® MPC8572E development system (MPC8572DS) is ideal for hardware and software development for embedded applications. It leverages NXP’s highly integrated MPC8572E processor, built on Power Architecture® technology, and leading-edge external components.
製品詳細
Features
Microcontroller
- MPC8572 at 1500 MHz
Memory
- Two 512 MB DDR2 DIMMs at 800 MHz data rate
Connectivity
- Four RJ45 Ethernet connectors
- Two PCI Express® x2 slots
- ULI/nVidia M1575 south bridge supporting SATA, IDE, PCI, USB, other
- Serial connection
