Development System Based on QorIQ® P1022 Processor with COM Express Module

P1022COME-DS アクティブ

NXP® COM Express development systems provide an I/O-rich carrier blade emulating the QorIQ® processor embedded in a plug-in module based on the COM Express form factor. This module/carrier combination provides unparalleled development flexibility. The P1022COME-DS-PB development includes a production-ready P1022 COM Express module with all of its functionality available on the carrier card. The P1022COM Express module is shown in the displayed block diagram.

製品詳細

ブロック図

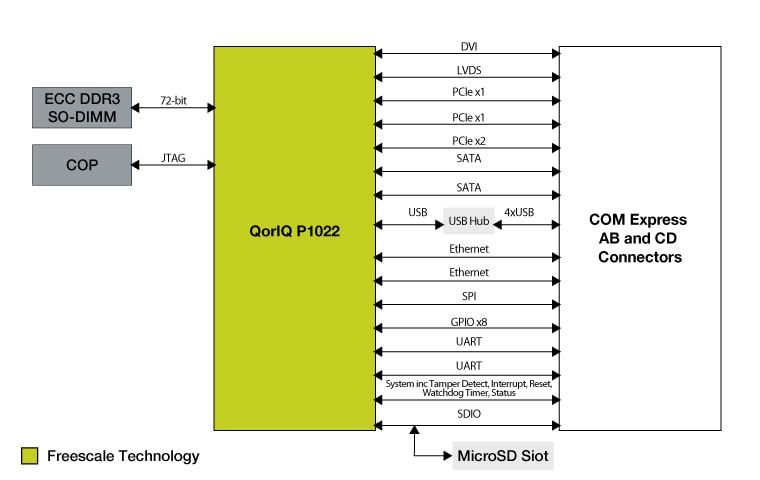

P1022COME-DS Block Diagram

図を取得する PDF

Features

Core Complex

  • QorIQ® based P1022 operating at 1 GHz
  • Number of cores: 2

Connectivity and Networking

  • Ethernet: 2x 1G with integrated PHY

Memory System

  • 2 GB DDR3 (DDR3 ECCSO-UDIMM)
  • MicroSD slot for onboard storage

Basic peripherals and Interconnect

  • USB 2.0: 4x with integrated PHY
  • GPIO: 8
  • I²C: 4
  • PCI: PCI (x2) + dual PCIe (x1)

Additional features

  • Carrier blade
  • Chassis enclosure
  • Universal bench ATX power supply

Software

  • U-Boot
  • Linux® BSP from Mentor Graphics Embedded
  • GCC tools (compiler, debugger)
  • CodeWarrior® evaluation copy

購入オプション

P1022COME-DS-PB-Image

クリックして展開

  • P1022COME-DS-PB
    アクティブ

  • QorIQ P1022 COM Express Development System, revB.

  • $2581.75 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
