TEA1721ADB1061
アクティブ -
Isolated universal mains flyback converter demo board.
- Demo board
- Quick start guide

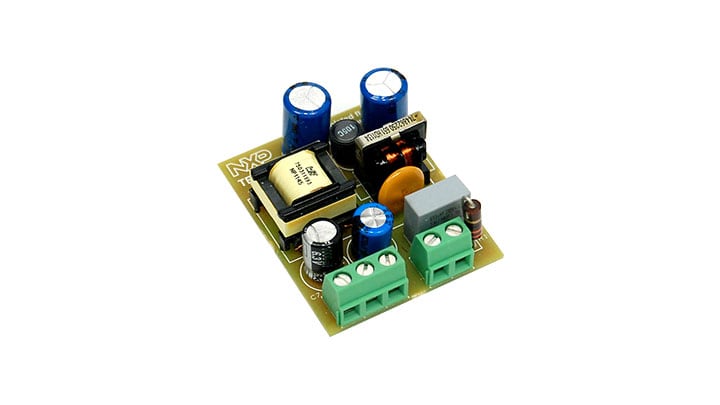

TEA1721 Isolated Universal Mains Flyback Converter Demo Board
The demo board is designed as an isolated 12 V and 3.3 V AC/DC SMPS for supplying up to 5 W to a load.
The switch-mode converter operates in flyback mode at a maximum frequency of around 51 kHz. Overcurrent and short-circuit protection are built in. The power consumption is between 10 mW and 20 mW under no-load conditions.
EMI filtering and surge protection using TVS diodes is implemented in this circuit.
The switch-mode converter operates in flyback mode at a maximum frequency of around 51 kHz. Overcurrent and short-circuit protection are built in. The power consumption is between 10 mW and 20 mW under no-load conditions.
EMI filtering and surge protection using TVS diodes is implemented in this circuit.
製品詳細
対応製品
パワーマネージメント
電源スイッチ内蔵AC-DCコントローラ
- TEA1721BT: HV Start-up Flyback Controller with Integrated MOSFET for 5 W Applications, F~Burst = 905 Hz
- TEA1721DT: HV Start-up Flyback Controller with Integrated MOSFET for 5 W Applications, F~Burst = 1270 Hz
- TEA1721FT: HV Start-up Flyback Controller with Integrated MOSFET for 5 W Applications, F~Burst = 1750 Hz
- TEA1723AT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 430 Hz
- TEA1723BT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 905 Hz
- TEA1723DT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 1270 Hz
- TEA1723FT: HV Start-up Flyback Controller with Integrated MOSFET for 11 W Applications, F~Burst = 1750 Hz
- TEA1721AT: HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz
Features
Key Features
- IC used: TEA1721AT
- Efficiency: 79.3% at 115 V(AC)-60 Hz / 80.0% at 230 V(AC)-50 Hz
Power Management
- AC line input voltage: 85 V(AC) to 265 V(AC)
- Output voltage: 12 V(DC) and 3.3 V(DC)
- Maximum output current: 12 V = 400 mA / 3.3 V = 400 mA
- Maximum output power: 5 W
- Output voltage stability: ±5 %
