TWR-CM3120-EVM - Printed Circuit Board bill of materials and design files
IO-Link Leader Transceiver Tower System Module
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

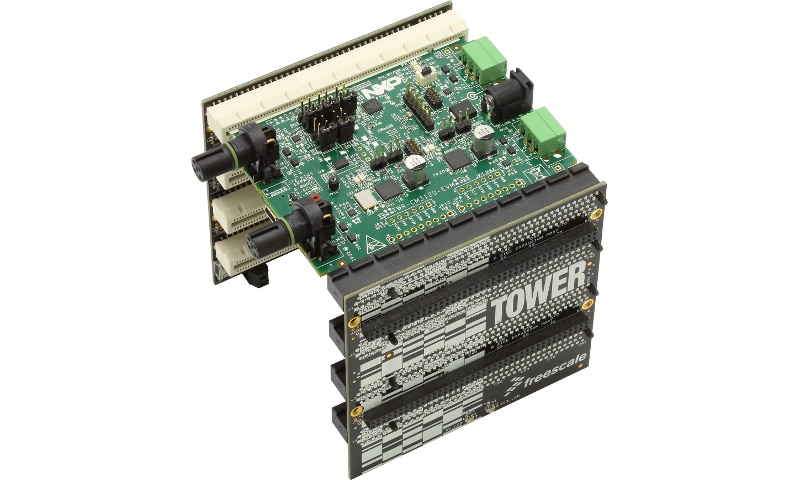

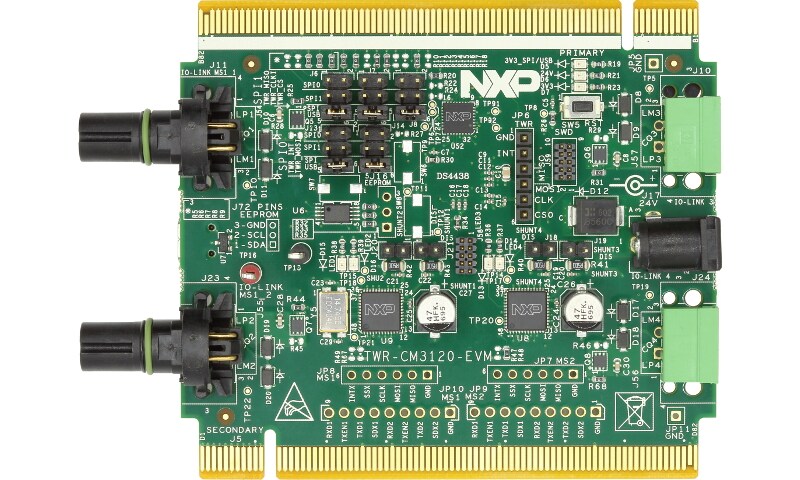

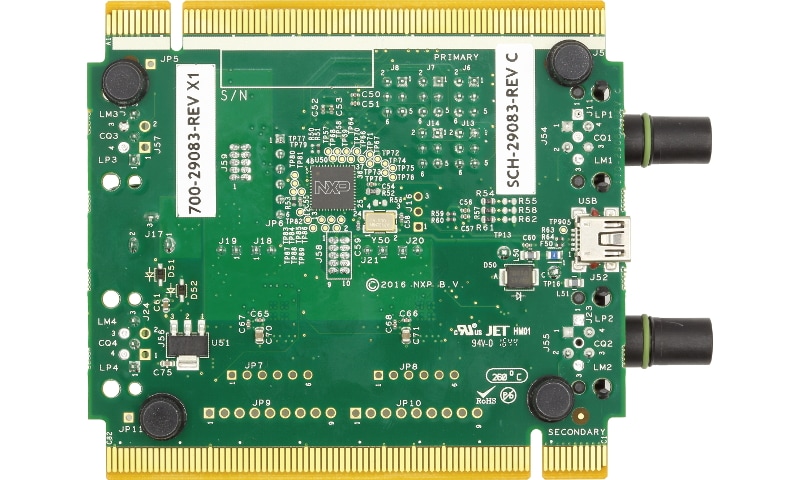

TWR-CM3120-EVM tower system board is a 4-port IO-Link leader solution. It includes two MC34CM3120 leader dual transceivers and one MKL17Z64VFM4 Kinetis MCU. Kinetis MCU comes with a flashed IO-Link stack software, which enables a fast evaluation of the IO-Link protocol. This Tower board can be connected to PC via standard SPI-to-USB converter.
製品詳細
Features
General Specifications
- Onboard ESD protection
Connectivity
- 4 fully featured IO-Link ports based on two CM3120 and Kinetis MKL17Z64VFM4
- modular solution - stackable for multiple of four port solution
Power Management
- Operating voltage range from 8.0 V to 32 V
Components
- optional external NMOS transistors to control current to the C/Q and L+ lines
- Four IO-Link communication status LEDs
Software
- IO-Link stack loaded in the embedded MCU
- integrated Bootloader through SPI for IO-Link stack updates
- Graphical Users Interface on PC
- Configurable through SPI interface
