BGU8011 GNSS FE evaluation board.
- BGU8011 FE evaluation board in ESD safe packing
BGU8011 GNSS FE evaluation board

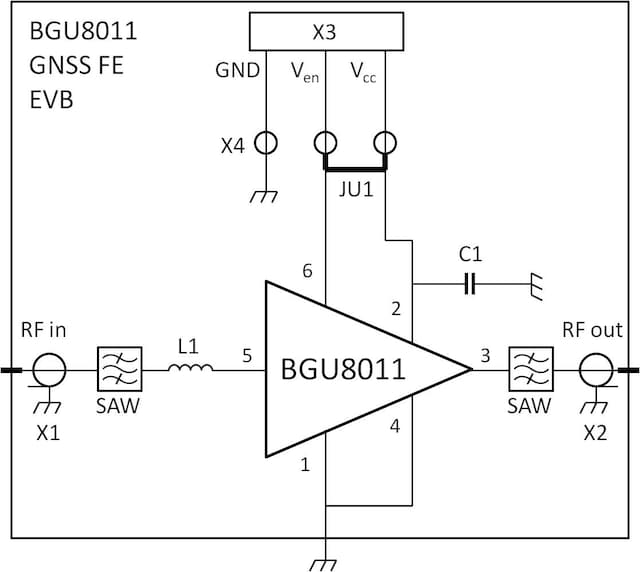

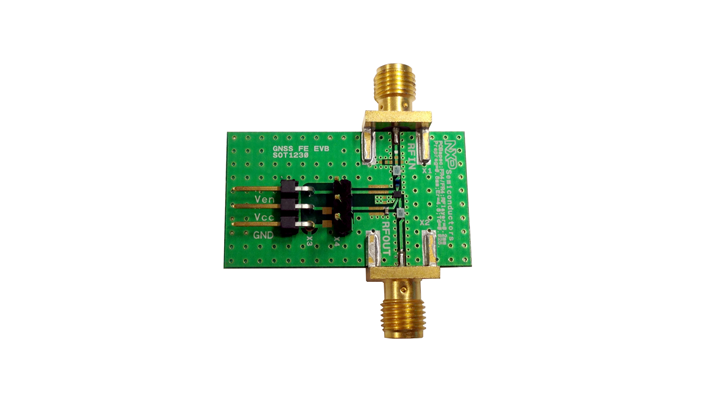

The BGU8011 GPS FE evaluation board simplifies the evaluation of the BGU8011 FE for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8011, the input series inductor, a decoupling capacitor and in- and output EPCOS B8313 SAW filters. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8011 can operate from a 1.5 V to 3.1 V single supply and consumes about 4.4 mA.
製品詳細
Features
Power Management
- Covers full GNSS L1 bands (GPS, COMPASS, Galileo, and GLONASS)
- Supply voltage 1.5 V to 3.1 V
- Optimized performance at 4.4 mA low supply current
- Power-down mode current consumption < 1 µA
- ESD protection on all pins (HBM > 2 kV)
- Integrated matching for the output
- Input and output DC decoupled
- Requires only one input matching inductor, one supply decoupling capacitor, and in- and output EPCOS B8313 SAW filters
Size
- 1.1 mm x 0.9 mm x 0.5 mm; 0.4 mm pitch: SOT1230
- 180 GHz transit frequency - SiGe:C technology
- Integrated temperature stabilized bias for easy design
- Noise figure (NF) = 1.5 dB
- Gain = 14.9 dB
- High input 1 dB compression point of -5 dBm
