DEMO9S08QG8E
-
MC9S08QH8 DEMO BOARD.
- Installation Guide
- Demonstration Board
- CodeWarrior Software
- Adapter cable
- Resource CD–ROM

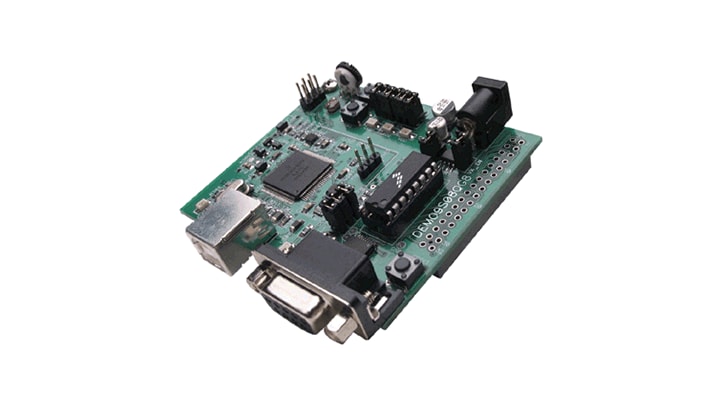

MC9S08QG8 Demonstration Board
The DEMO9S08QG8 is a cost-effective demonstration board for the NXP® MC9S08QG8 MCU.
- Developing application code is quick and easy with the integrated USB-to-BDM interface, CodeWarrior® Development Studio and software examples.
- A 32-pin connector allows you to connect the DEMO9S08QG8 board to an expanded evaluation environment.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
8ビットS08 MCU
- S08QG: 8-bit Small Package QG MCUs
Features
Processor
- 16-pin DIP
- socketed
- 8 kB Flash
- 512 B RAM
- Internal 32 kHz oscillator, trimmable to ±0.2%
- 12 GPIO, one Input Only, one Output only
- Timer interface module
- SCI and SPI communication ports
- IIC module
- 8 KBI inputs
- 2-Ch, 16-bit, timer interface
- 8-Ch, 10-bit analog to digital converter (ADC)
- Analog comparator w/ internal compare
MC9S08QG8 CPU
Clock
- External 32.768 kHz clock oscillator option
Connectivity
- USB-to-BDM interface
- RS-232 serial port w/ DB9 connector
- SPI, IIC ports available on connector J1
- 32-pin MCU I/O connector
- 2.0mm barrel connector
- DB9 serial connector
Power input selection jumper
- Power input from USB-BDM
- Power input from onboard regulator
- Power input from connector J1
- Power output through connector J1
- USB cable - 500 mA max
- PWR connector - 9 VDC typical, +7 VDC to +18 VDC
User components provided
- Three push switches; two Users, one Reset
- Three LED indicators; two Users, one VDD
Jumpers
- USER_EN
- PWR_SEL
- COM_SEL
- VX_EN
Size
- Board size 2.9 x 2.5
