S08SE Evaluation and Demonstration Board

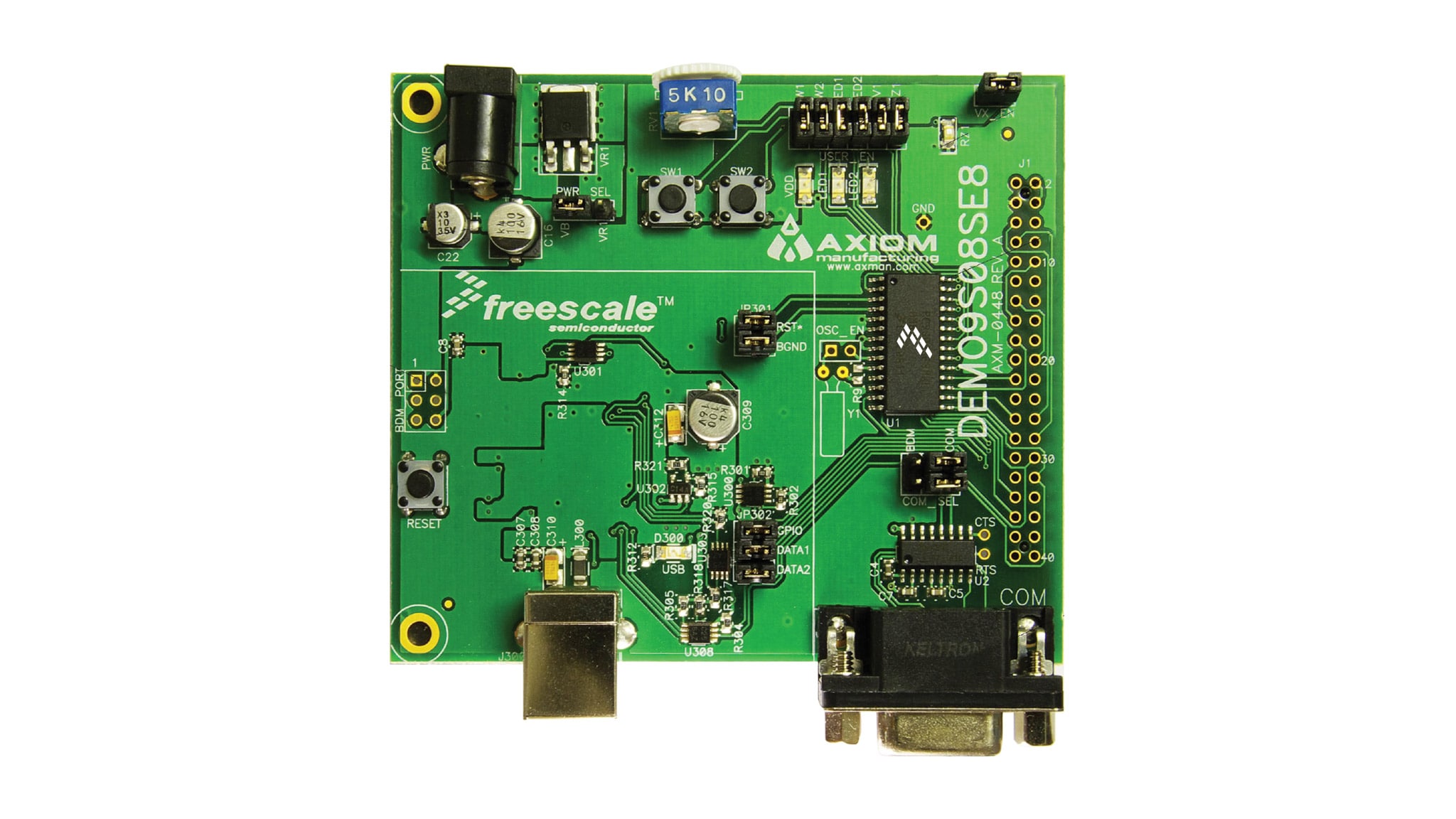

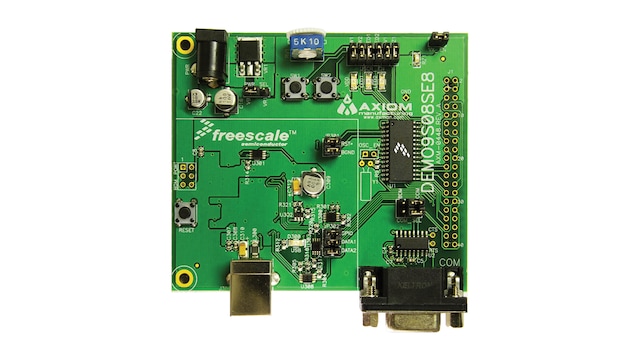

The DEMO9S08SE8 is an evaluation or demonstration board for the MC9S08SE8 microcontroller.
Development of applications is quick and easy with the integrated USB-BDM, sample software tools, and examples. An optional BDM_PORT port is also provided to allow use of a BDM_PORT cable. A 40-pin connector allows connecting the DEMO9S08SE8 board to an expanded evaluation environment.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
8ビットS08 MCU
- S08SE: 8-bit General Purpose SE MCUs
Features
Processor
- MC9S08SE8 CPU, 28SOIC
- External 32.768 kHz Clock Oscillator (not installed)
Connectivity
- Integrated USB-BDM
- RS-232 Serial Port w/ DB9 Connector
- 32-pin MCU I/O Connector
- 2.0 mm Barrel Connector
- BDM_PORT Pin Header (not installed)
- DB9 Serial Connector
- USB-B Connector
Power Management
- Power Input Selection Jumper
Components
- 3 Push Switches; 2 User, 1 Reset
- 3 LED Indicators; 2 User, 1 VDD
- Jumpers
