High Performance Auto Rotary and Linear Position Sensor
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

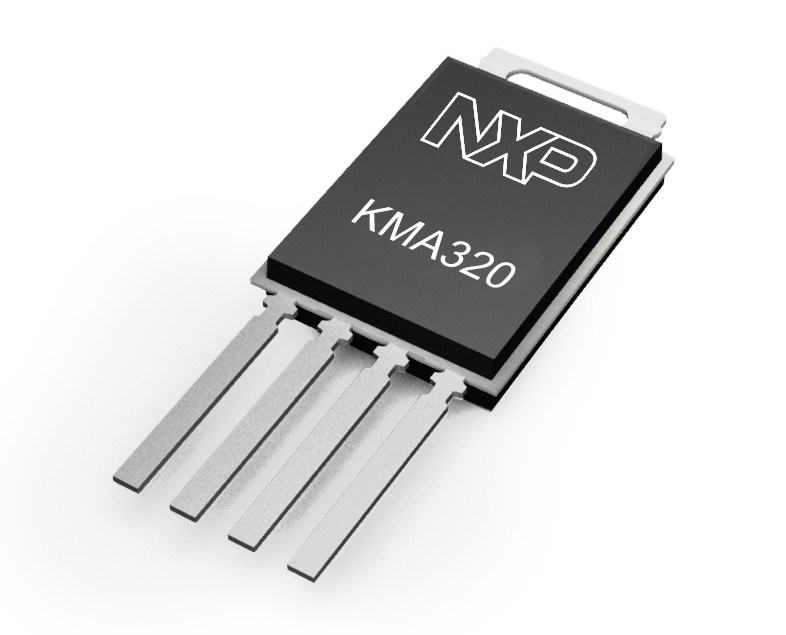

The KMA320/321/310 family is designed for high performance applications such as throttle/EGR position sensor, turbo charger/clutch/transmission actuator.
The sensors feature PCB-less design with integrated capacitor. The IC allows user-specific definition of angular range, zero angle position, and clamping voltages.
The settings are stored permanently in a non-volatile memory (NVM). The programmable angle sensor is pre‑programmed, pre-calibrated and therefore, ready to use.
The sensor is developed to ISO26262, and fulfills ASIL B(Analog) or ASIL C(SENT)
For additional information and sample availability, contact your local NXP® Sales Office or NXP Authorized Distributor.
製品詳細

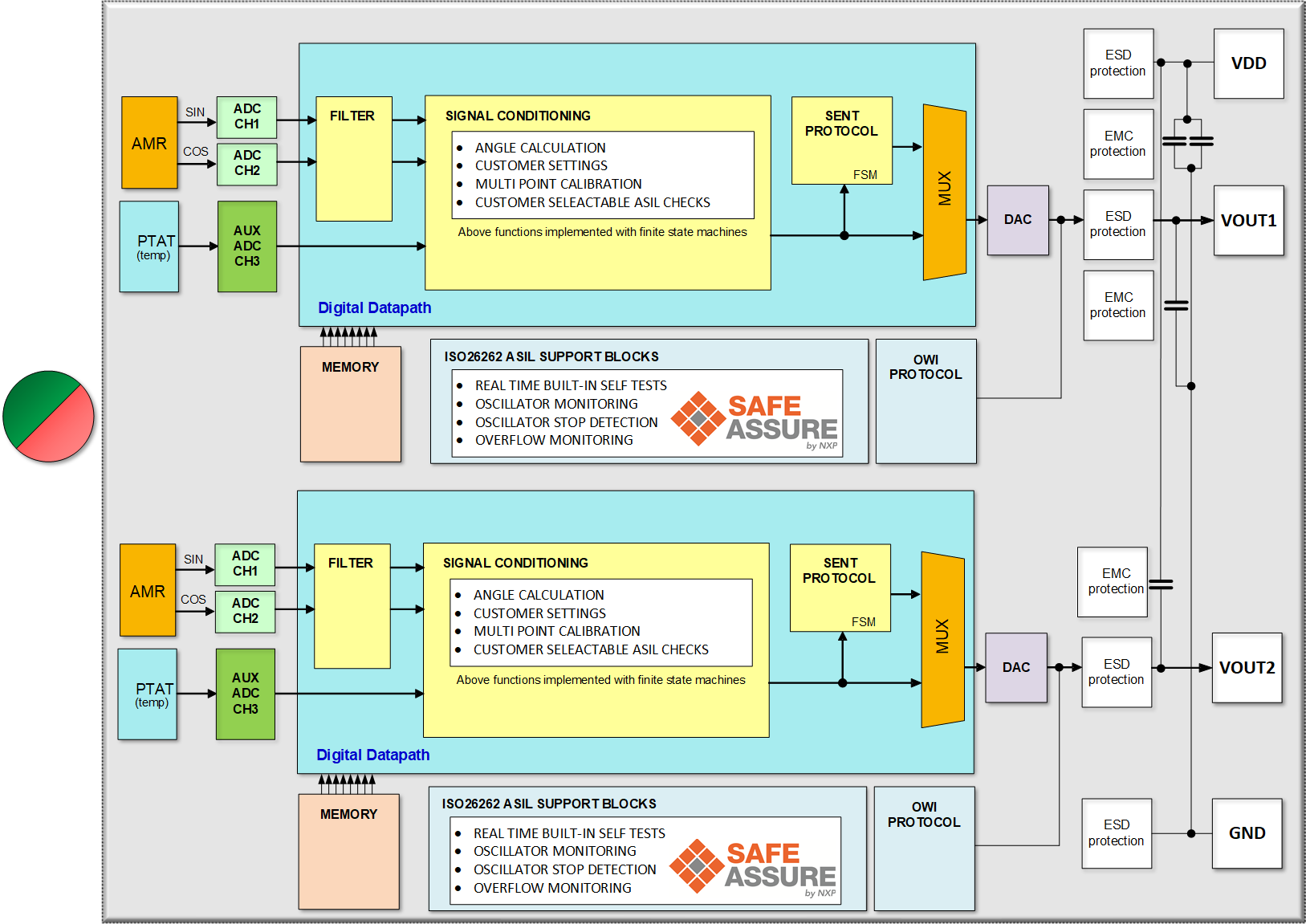

ブロック図
Features
Key Features
- AEC-Q100 qualified Dual Channel Automotive Angle Sensor
- Operating temperature up to 180 °C, suitable for high temperature applications in engine room (ETC, EGR)
- Based on integrated AMR technology, highly accurate
- SAE J2716 SENT and ratiometric analog output
- Designed to ISO 26262, support up to ASIL C with SENT output
- Programmable user adjustment, e.g. zero angle and angle range
- Multipoint calibration with 17 equidistant or seven selectable calibration points to enable linearity improvement and flexibility in application
- 8 × 12-bit customer memory space for easy traceability
- Robust for working magnetic field strength above 25 kA/m
- No upper field strength limit, effective increased stray field suppression capability
- PCB less package with integrated capacitor, system in package design
比較表
KMA3xx Family Solutions
| Part Number | Single/Dual Channel | Package |
|---|---|---|
| KMA320/A | Dual Channel | SIL4 (SOT1188-2) |
| KMA321/A | Single Channel | SIL4 (SOT1188-2) |
| KMA320 | Dual Channel | SIL4 (SOT1188-2) |
| KMA321 | Single Channel | SIL4 (SOT1188-2) |

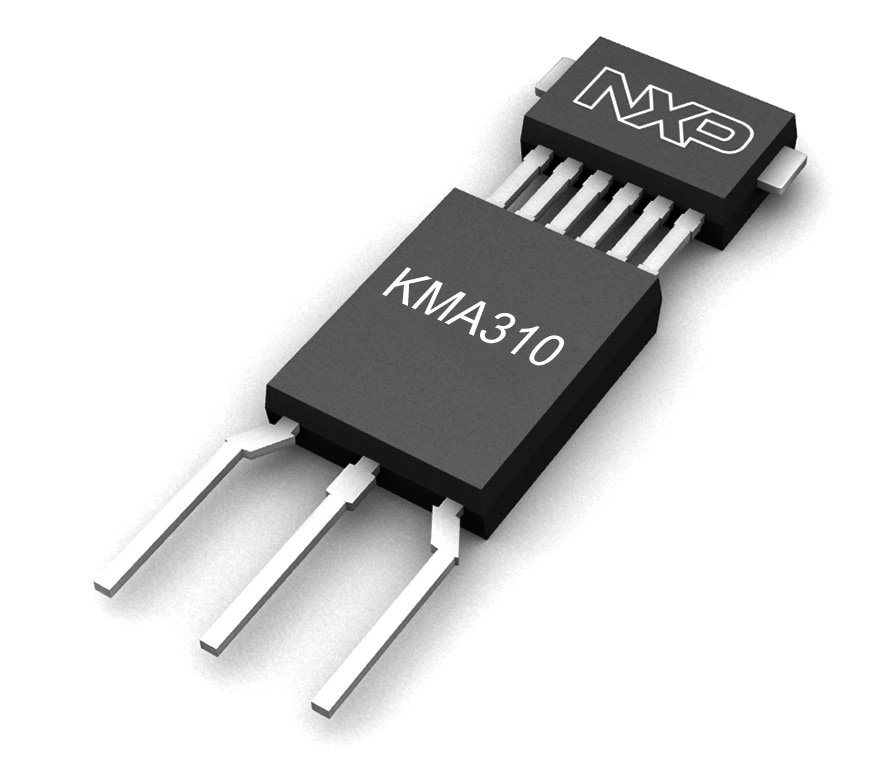

| KMA310 | Single Channel | SIL3 (SOT1288-3) |
| KMZ80 | Single Channel | SO8 (SOT96-1) |
