Motion Sensing Platform

MMA955xL
製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

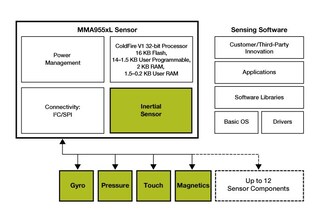

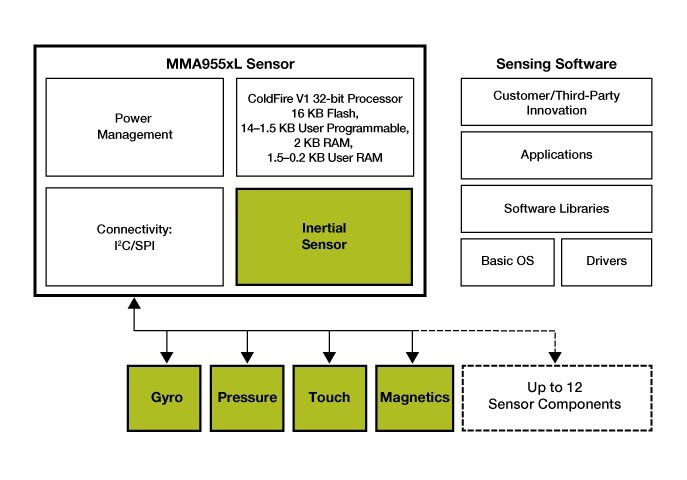

Used in mobile devices, the MMA955xL intelligent motion-sensing platform is an industry first, featuring:

  • Integration of a MEMS accelerometer
  • A 32-bit embedded ColdFire® MCU, flash memory and a dedicated architecture to manage other sensors
  • Programmable to provide freefall detection, tilt and 3-D orientation detection, tap and double tap detection, dead reckoning, shock, vibration and sudden motion detection, and power management

MMA955xL Family Members

  • MMA9550L contains motion sensor firmware
  • MMA9551L contains gesture and motion sensor firmware
  • MMA9553L contains pedometer and motion firmware
  • MMA9559L contains foundation firmware only

製品詳細

セクションを選択:

比較表

MMA955xL Sensor Feature Comparisons

MMA9550L MMA9551L MMA9553L MMA9555L MMA9559L
Fast Speed 3.1mA @8MHz 3.1mA @8MHz 3.1mA @8MHz 3.1mA @8MHz 3.1mA @8MHz
Standby 2µA 2µA 2µA 2µA 2µA
Accel Measurement 143µA @16Hz 143µA @16Hz 165µA @31Hz 112µA @31Hz 143µA @16Hz
ADC 10-, 12-, 14- and 16-bit 10-, 12-, 14- and 16-bit 10-, 12-, 14- and 16-bit 10-, 12-, 14- and 16-bit 10-, 12-, 14- and 16-bit
Programmable Single-wire background debug mode (BDM) pin interface Single-wire background debug mode (BDM) pin interface Single-wire background debug mode (BDM) pin interface Single-wire background debug mode (BDM) pin interface Single-wire background debug mode (BDM) pin interface
Key Elements Infrastructure-only functions Infrastructure + gestures Turn Key Pedometer Turn Key Pedometer Lightweight infrastructure
User Flash 6.5 KB 4.5 KB 1.5 KB - 14 KB
User RAM 576 B 452 B 164 B - 1.5 KB
Development tools KITMMA9550LEVM KITMMA9551LEVM KITMMA9550LEVM with FW update KITMMA9550LEVM with FW update MMA9559LKUBE
N true 0 PSPMMA955xLja 18 アプリケーション・ノート Application Note t789 5 アプリケーション・ノート・ソフトウェア Application Note Software t783 1 カタログ Brochure t518 1 サポート情報 Supporting Information t531 1 セレクタ・ガイド Selector Guide t528 1 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 1 ホワイト・ペーパ White Paper t530 2 ユーザ・ガイド User Guide t792 1 リファレンス・マニュアル Reference Manual t877 4 ja ja ja データ・シート Data Sheet 1 1 3.1 English The MMA955xL device an intelligent sensor, incorporating dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit programmable microcontroller. 1308257636911711701958 PSP 476.5 KB None None documents None 1308257636911711701958 /docs/en/data-sheet/MMA955xL.pdf 476532 /docs/en/data-sheet/MMA955xL.pdf MMA955XL documents N N 2016-10-31 MMA9553L: Freescale Intelligent Motion Sensing Platform Data Sheet for the MMA955xL including the MMA9553L /docs/en/data-sheet/MMA955xL.pdf /docs/en/data-sheet/MMA955xL.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Apr 30, 2015 980000996212993340 Data Sheet Y N MMA9553L: Freescale Intelligent Motion Sensing Platform Data Sheet for the MMA955xL including the MMA9553L リファレンス・マニュアル Reference Manual 4 2 2.2 English MMA9553LSWRM, MMA9553L Intelligent Pedometer Platform Software Reference Manual, This reference manual describes the features, architecture, usage examples, and programming model of the MMA9553L intelligent pedometer platform. 1366605922919716367967 PSP 688.1 KB None None documents None 1366605922919716367967 /docs/en/reference-manual/MMA9553LSWRM.pdf 688135 /docs/en/reference-manual/MMA9553LSWRM.pdf MMA9553LSWRM documents N N 2016-10-31 MMA9553LSWRM, MMA9553L Intelligent Pedometer Platform Software Reference Manual - Reference Manual /docs/en/reference-manual/MMA9553LSWRM.pdf /docs/en/reference-manual/MMA9553LSWRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf N en Jun 10, 2015 500633505221135046 Reference Manual Y N MMA9553LSWRM, MMA9553L Intelligent Pedometer Platform Software Reference Manual - Reference Manual 3 1.0 English This reference manual describes the features, architecture and programming model of the MMA955xL, an intelligent, three-axis accelerometer. 1308349565841720143833 PSP 3.5 MB None None documents None 1308349565841720143833 /docs/en/reference-manual/MMA955xLRM.pdf 3520286 /docs/en/reference-manual/MMA955xLRM.pdf MMA955XLHWRM documents N N 2016-10-31 Intelligent, Motion-Sensing Platform Hardware Reference Manual for MMA955XL, including the MMA9553L and the MMA9559L /docs/en/reference-manual/MMA955xLRM.pdf /docs/en/reference-manual/MMA955xLRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf N en Aug 15, 2013 500633505221135046 Reference Manual Y N Intelligent, Motion-Sensing Platform Hardware Reference Manual for MMA955XL, including the MMA9553L and the MMA9559L 4 0 English This software reference manual describes the features, architecture, and programming model of the MMA9550L, MMA9551L, and MMA9553L intelligent, motion-sensing platforms. The MMA955xL low-g, 3-axis accelerometer is a member of NXP&#8217;s Xtrinsic family of intelligent sensor platforms. The device incorporates dedicated accelerometer MEMS transducers, signal-conditioning, data conversion, a 32-bit programmable microcontroller. 1333744965510695694497 PSP 648.7 KB None None documents None 1333744965510695694497 /docs/en/reference-manual/MMA955xLSWRM.pdf 648677 /docs/en/reference-manual/MMA955xLSWRM.pdf MMA955XLSWRM documents N N 2012-04-06 MMA955xL Intelligent, Motion-Sensing Platform Software - Reference Manual /docs/en/reference-manual/MMA955xLSWRM.pdf /docs/en/reference-manual/MMA955xLSWRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf N en Apr 6, 2012 500633505221135046 Reference Manual Y N MMA955xL Intelligent, Motion-Sensing Platform Software - Reference Manual 5 0.1 English This reference manual describes the features, architecture and programming model of the MMA9559L Intelligent, Motion-Sensing Platform. This device incorporates dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit programmable microcontroller. For information about the device&#8217;s hardware, see the MMA955xL Intelligent, Motion-Sensing Hardware Reference Manual (MMA955xLRM). 1328135418986715138540 PSP 387.1 KB None None documents None 1328135418986715138540 /docs/en/reference-manual/MMA9559LSWRM.pdf 387086 /docs/en/reference-manual/MMA9559LSWRM.pdf MMA9559LSWRM documents N N 2012-02-01 MMA9559LSWRM.book /docs/en/reference-manual/MMA9559LSWRM.pdf /docs/en/reference-manual/MMA9559LSWRM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf N en Mar 13, 2012 500633505221135046 Reference Manual Y N MMA9559LSWRM.book アプリケーション・ノート Application Note 5 6 0 English This application note introduces digital filtering on the Xtrinsic intelligent sensing platforms. It is divided into two major sections: the first discusses basic digital filtering theory and general practices, while the second applies the theory and discusses specific filtering enablement features available on the MMA955xL platform. 1350329011049723138044 PSP 162.1 KB None None documents None 1350329011049723138044 /docs/en/application-note/AN4464.pdf 162078 /docs/en/application-note/AN4464.pdf AN4464 documents N N 2012-10-15 Digital Filtering with MMA955xL /docs/en/application-note/AN4464.pdf /docs/en/application-note/AN4464.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 15, 2012 645036621402383989 Application Note Y N Digital Filtering with MMA955xL 7 0 English AN4446: This application note addresses the related problem of how to detect the high point (or apogee) of a vertical trajectory in the absence of spinning. The instantaneous accelerometer reading cannot be used because the reading is zero from the moment it leaves the thrower's hands until the point of impact with the ground. 1344376591780703101158 PSP 268.7 KB None None documents None 1344376591780703101158 /docs/en/application-note/AN4446.pdf 268749 /docs/en/application-note/AN4446.pdf AN4446 documents N N 2012-08-07 AN4446, Using the MMA9550 Intelligent Accelerometer to Detect the High Point of a Vertical Trajectory - Application Notes /docs/en/application-note/AN4446.pdf /docs/en/application-note/AN4446.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 7, 2012 645036621402383989 Application Note Y N AN4446, Using the MMA9550 Intelligent Accelerometer to Detect the High Point of a Vertical Trajectory - Application Notes 8 1 English AN4317: Android is one of the most popular Operating Systems (OS) for smart phones and other portable devices. This application note introduces how the coordinate system on Android is defined, and how to convert the 3-axis directions on the driver code within the Android system. The sample code discussed is based on NXP&#8217;s driver code for Android 2.2 and 2.3, using the MMA8452Q as an example. 1312930741094703218454 PSP 143.2 KB None None documents None 1312930741094703218454 /docs/en/application-note/AN4315.pdf 143228 /docs/en/application-note/AN4315.pdf AN4315 documents N N 2011-08-09 AN4315, Using the NXP<sup>&#174;</sup> MMA9550L for High Resolution Spectral Estimation of Vibration Data - Application Notes /docs/en/application-note/AN4315.pdf /docs/en/application-note/AN4315.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Feb 9, 2012 645036621402383989 Application Note Y N AN4315, Using the NXP<sup>&#174;</sup> MMA9550L for High Resolution Spectral Estimation of Vibration Data - Application Notes 9 0 English AN4129SW.zip /docs/en/application-note-software/AN4129SW.zip /docs/en/application-note-software/AN4129SW.zip The NXP MMA955xL Xtrinsic family of devices are high-precision, intelligent accelerometers built on the ColdFire version 1 core. The MMA955xL family&#8217;s microcontroller core enables the development of custom applications in the built-in flash memory. Programming and debugging tasks are supported by NXP&#8217;s CodeWarrior Development Studio for Microcontrollers (Eclipse IDE). 1326930173715695324124 PSP 2.7 MB None None documents None 1326930173715695324124 /docs/en/application-note/AN4129.pdf 2693055 /docs/en/application-note/AN4129.pdf AN4129 documents N N 2012-01-18 Building Custom Applications on MMA9550L/MMA9551L /docs/en/application-note/AN4129.pdf /docs/en/application-note/AN4129.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 18, 2012 645036621402383989 Application Note Y N Building Custom Applications on MMA9550L/MMA9551L 10 0 English AN4128: The NXP MMA955xL Xtrinsic family devices are high-precision, intelligent accelerometers built on the ColdFire v1 platform. The MMA955xL family's microcontroller core is programmable and configurable with the Eclipse based CodeWarrior for Microcontrollers Development Studio software. CodeWarrior?s highly visual and automated Integrated Design Environment (IDE), accelerates the development of custom algorithms and features for complex embedded applications. 1320100018598709632126 PSP 863.7 KB None None documents None 1320100018598709632126 /docs/en/application-note/AN4128.pdf 863733 /docs/en/application-note/AN4128.pdf AN4128 documents N N 2016-10-31 AN4128, Installation of the MMA955xL CodeWarrior Service Pack - Application Notes /docs/en/application-note/AN4128.pdf /docs/en/application-note/AN4128.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 31, 2011 645036621402383989 Application Note Y N AN4128, Installation of the MMA955xL CodeWarrior Service Pack - Application Notes ユーザ・ガイド User Guide 1 11 0 English The MMA955xL devices are 3-axis accelerometers from NXP&#8217;s Xtrinsic family of intelligent, motion-sensing platforms. They incorporate dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit, programmable microcontroller. The KITMMA9550LEVM and KITMMA9551LEVM evaluation kits for the MMA955xL devices demonstrates the common accelerometer user cases and provides access to device-specific features. 1338247495722719781935 PSP 2.6 MB Registration without Disclaimer None documents Extended 1338247495722719781935 /secured/assets/documents/en/user-guide/MMA955xLSTUG.pdf 2618235 /secured/assets/documents/en/user-guide/MMA955xLSTUG.pdf MMA955XLSTUG documents Y N 2016-10-31 MMA9550L and MMA9551L Sensor Toolboxes - User’s Guide /webapp/Download?colCode=MMA955XLSTUG&lang_cd=ja /secured/assets/documents/en/user-guide/MMA955xLSTUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en May 28, 2012 132339537837198660 User Guide Y N MMA9550L and MMA9551L Sensor Toolboxes - User’s Guide アプリケーション・ノート・ソフトウェア Application Note Software 1 12 1 English The NXP MMA955xL Xtrinsic family of devices are high-precision, intelligent accelerometers built on the ColdFire version 1 core. The MMA955xL family&#8217;s microcontroller core enables the development of custom applications in the built-in flash memory. Programming and debugging tasks are supported by NXP&#8217;s CodeWarrior Development Studio for Microcontrollers (Eclipse IDE). 1394211262248673676157 PSP 68.5 KB None None documents None 1394211262248673676157 /docs/en/application-note-software/AN4129SW.zip 68477 /docs/en/application-note-software/AN4129SW.zip AN4129SW documents N N 2014-03-07 AN4129SW, Accompanying software for application note AN4129 /docs/en/application-note-software/AN4129SW.zip /docs/en/application-note-software/AN4129SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Feb 10, 2014 789425793691620447 Application Note Software D N AN4129SW, Accompanying software for application note AN4129 カタログ Brochure 1 13 2 English NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications 1542831695480719843505 PSP 1.2 MB None None documents None 1542831695480719843505 /docs/en/brochure/MEDSENSORSA4BR.pdf 1243036 /docs/en/brochure/MEDSENSORSA4BR.pdf MEDSENSORSA4BR documents N N 2018-11-21 Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf /docs/en/brochure/MEDSENSORSA4BR.pdf Brochure N 712453003803778552 2025-02-25 pdf N en Jan 11, 2019 712453003803778552 Brochure Y N Motion and Pressure Sensors for Medical Applications - Brochure ファクト・シート Fact Sheet 1 14 13 English Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. 1092086607381736729272 PSP 2.2 MB None None documents None 1092086607381736729272 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2216251 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf SNSRSOLUTNTMFS documents N N 2016-10-31 Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Fact Sheet N 736675474163315314 2025-02-25 pdf N en Feb 12, 2020 736675474163315314 Fact Sheet Y N Sensor Solutions セレクタ・ガイド Selector Guide 1 15 13 English For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. 1424471489332715853854 PSP 253.0 KB None None documents None 1424471489332715853854 /docs/en/product-selector-guide/SENSSELECT.pdf 252964 /docs/en/product-selector-guide/SENSSELECT.pdf SENSSELECT documents N N 2016-10-31 Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf /docs/en/product-selector-guide/SENSSELECT.pdf Selector Guide N 553557935274807777 2025-02-25 pdf N en May 13, 2024 553557935274807777 Selector Guide Y N Sensor Product Selector Guide サポート情報 Supporting Information 1 16 1.0 English This release note documents the NXP MMA9553L, version 1.33 pedometer product. This MMA9553L release was compiled and tested with the following development tools: CodeWarrior Development Studio for Microcontrollers Version 10.1 including support available for ColdFire V1 devices, MMA955xL devices and MMA955xL user-mode service pack. 1358548494708716366430 PSP 229.3 KB None None documents None 1358548494708716366430 /docs/en/supporting-information/MMA9553LSWRN.pdf 229318 /docs/en/supporting-information/MMA9553LSWRN.pdf MMA9553LSWRN documents N N 2016-10-31 MMA9553L Version 1.33 Software - Release Notes /docs/en/supporting-information/MMA9553LSWRN.pdf /docs/en/supporting-information/MMA9553LSWRN.pdf Supporting Information N 371282830530968666 2023-06-19 pdf N en Aug 27, 2013 371282830530968666 Supporting Information Y N MMA9553L Version 1.33 Software - Release Notes ホワイト・ペーパ White Paper 2 17 2 English Low power sensors with the integrated capability to reduce power consumption play an important role in extending the battery life in portable systems. NXP has extensive capabilities in sensors, microcontrollers, power management, and RF technologies. 1365095391795722334999 PSP 381.7 KB None None documents None 1365095391795722334999 /docs/en/white-paper/LOWPOWERSENSWP.pdf 381651 /docs/en/white-paper/LOWPOWERSENSWP.pdf LOWPOWERSENSWP documents N N 2016-10-31 Low Power Sensing /docs/en/white-paper/LOWPOWERSENSWP.pdf /docs/en/white-paper/LOWPOWERSENSWP.pdf White Paper N 918633085541740938 2025-02-25 pdf N en May 20, 2015 918633085541740938 White Paper Y N Low Power Sensing 18 1 Chinese 1363970116444726555210zh PSP 3.6 MB None None documents None 1363970116444726555210 /docs/zh/white-paper/SENFEIOTLFWP.pdf 3621913 /docs/zh/white-paper/SENFEIOTLFWP.pdf SENFEIOTLFWP documents N N 2016-10-31 The Role of Sensor Fusion and Remote Emotive Computing (REC) in the Internet of Things (IoT) - White Paper /docs/zh/white-paper/SENFEIOTLFWP.pdf /docs/zh/white-paper/SENFEIOTLFWP.pdf White Paper N 918633085541740938 2025-02-24 zh Jul 9, 2013 918633085541740938 White Paper Y N 白皮书：传感器融合和远程情感计算(REC)在物联网(IoT)中的作用 1 English The age of sensor technology is upon us. These days, it&#8217;s unusual to experience an electronic consumer product that doesn&#8217;t use sensors to create new experiences for its users. Sensors are experiencing a renaissance of sorts as micro-electromechanical systems (MEMS) technology becomes less expensive and further miniaturized, in turn fueling penetration of sensors into new applications and creating new potential for the sensor market. 1363970116444726555210 PSP 3.6 MB None None documents None 1363970116444726555210 /docs/en/white-paper/SENFEIOTLFWP.pdf 3621913 /docs/en/white-paper/SENFEIOTLFWP.pdf SENFEIOTLFWP documents N N 2016-10-31 The Role of Sensor Fusion and Remote Emotive Computing (REC) in the Internet of Things (IoT) - White Paper /docs/en/white-paper/SENFEIOTLFWP.pdf /docs/en/white-paper/SENFEIOTLFWP.pdf White Paper N 918633085541740938 2025-02-24 pdf N en Jul 9, 2013 918633085541740938 White Paper Y N The Role of Sensor Fusion and Remote Emotive Computing (REC) in the Internet of Things (IoT) - White Paper false 0 MMA955xL downloads ja true 1 Y PSP アプリケーション・ノート 5 /docs/en/application-note/AN4464.pdf 2012-10-15 1350329011049723138044 PSP 6 Oct 15, 2012 Application Note This application note introduces digital filtering on the Xtrinsic intelligent sensing platforms. It is divided into two major sections: the first discusses basic digital filtering theory and general practices, while the second applies the theory and discusses specific filtering enablement features available on the MMA955xL platform. None /docs/en/application-note/AN4464.pdf English documents 162078 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4464.pdf Digital Filtering with MMA955xL /docs/en/application-note/AN4464.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Digital Filtering with MMA955xL 162.1 KB AN4464 N 1350329011049723138044 /docs/en/application-note/AN4446.pdf 2012-08-07 1344376591780703101158 PSP 7 Aug 7, 2012 Application Note AN4446: This application note addresses the related problem of how to detect the high point (or apogee) of a vertical trajectory in the absence of spinning. The instantaneous accelerometer reading cannot be used because the reading is zero from the moment it leaves the thrower's hands until the point of impact with the ground. None /docs/en/application-note/AN4446.pdf English documents 268749 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4446.pdf AN4446, Using the MMA9550 Intelligent Accelerometer to Detect the High Point of a Vertical Trajectory - Application Notes /docs/en/application-note/AN4446.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4446, Using the MMA9550 Intelligent Accelerometer to Detect the High Point of a Vertical Trajectory - Application Notes 268.7 KB AN4446 N 1344376591780703101158 /docs/en/application-note/AN4315.pdf 2011-08-09 1312930741094703218454 PSP 8 Feb 9, 2012 Application Note AN4317: Android is one of the most popular Operating Systems (OS) for smart phones and other portable devices. This application note introduces how the coordinate system on Android is defined, and how to convert the 3-axis directions on the driver code within the Android system. The sample code discussed is based on NXP&#8217;s driver code for Android 2.2 and 2.3, using the MMA8452Q as an example. None /docs/en/application-note/AN4315.pdf English documents 143228 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4315.pdf AN4315, Using the NXP<sup>&#174;</sup> MMA9550L for High Resolution Spectral Estimation of Vibration Data - Application Notes /docs/en/application-note/AN4315.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN4315, Using the NXP<sup>&#174;</sup> MMA9550L for High Resolution Spectral Estimation of Vibration Data - Application Notes 143.2 KB AN4315 N 1312930741094703218454 /docs/en/application-note/AN4129.pdf 2012-01-18 1326930173715695324124 PSP 9 Jan 18, 2012 Application Note The NXP MMA955xL Xtrinsic family of devices are high-precision, intelligent accelerometers built on the ColdFire version 1 core. The MMA955xL family&#8217;s microcontroller core enables the development of custom applications in the built-in flash memory. Programming and debugging tasks are supported by NXP&#8217;s CodeWarrior Development Studio for Microcontrollers (Eclipse IDE). None /docs/en/application-note/AN4129.pdf English documents 2693055 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4129.pdf Building Custom Applications on MMA9550L/MMA9551L /docs/en/application-note/AN4129.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Building Custom Applications on MMA9550L/MMA9551L 2.7 MB AN4129 N 1326930173715695324124 /docs/en/application-note/AN4128.pdf 2016-10-31 1320100018598709632126 PSP 10 Oct 31, 2011 Application Note AN4128: The NXP MMA955xL Xtrinsic family devices are high-precision, intelligent accelerometers built on the ColdFire v1 platform. The MMA955xL family's microcontroller core is programmable and configurable with the Eclipse based CodeWarrior for Microcontrollers Development Studio software. CodeWarrior?s highly visual and automated Integrated Design Environment (IDE), accelerates the development of custom algorithms and features for complex embedded applications. None /docs/en/application-note/AN4128.pdf English documents 863733 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4128.pdf AN4128, Installation of the MMA955xL CodeWarrior Service Pack - Application Notes /docs/en/application-note/AN4128.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4128, Installation of the MMA955xL CodeWarrior Service Pack - Application Notes 863.7 KB AN4128 N 1320100018598709632126 アプリケーション・ノート・ソフトウェア 1 /docs/en/application-note-software/AN4129SW.zip 2014-03-07 1394211262248673676157 PSP 12 Feb 10, 2014 Application Note Software The NXP MMA955xL Xtrinsic family of devices are high-precision, intelligent accelerometers built on the ColdFire version 1 core. The MMA955xL family&#8217;s microcontroller core enables the development of custom applications in the built-in flash memory. Programming and debugging tasks are supported by NXP&#8217;s CodeWarrior Development Studio for Microcontrollers (Eclipse IDE). None /docs/en/application-note-software/AN4129SW.zip English documents 68477 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN4129SW.zip AN4129SW, Accompanying software for application note AN4129 /docs/en/application-note-software/AN4129SW.zip documents 789425793691620447 Application Note Software N en None D zip 1 N N AN4129SW, Accompanying software for application note AN4129 68.5 KB AN4129SW N 1394211262248673676157 カタログ 1 /docs/en/brochure/MEDSENSORSA4BR.pdf 2018-11-21 1542831695480719843505 PSP 13 Jan 11, 2019 Brochure NXP provides a broad portfolio of accelerometers, motion and Pressure sensors designed for high-functionality, accuracy and reliability for medical applications None /docs/en/brochure/MEDSENSORSA4BR.pdf English documents 1243036 None 712453003803778552 2025-02-25 N /docs/en/brochure/MEDSENSORSA4BR.pdf Motion and Pressure Sensors for Medical Applications - Brochure /docs/en/brochure/MEDSENSORSA4BR.pdf documents 712453003803778552 Brochure N en None Y pdf 2 N N Motion and Pressure Sensors for Medical Applications - Brochure 1.2 MB MEDSENSORSA4BR N 1542831695480719843505 サポート情報 1 /docs/en/supporting-information/MMA9553LSWRN.pdf 2016-10-31 1358548494708716366430 PSP 16 Aug 27, 2013 Supporting Information This release note documents the NXP MMA9553L, version 1.33 pedometer product. This MMA9553L release was compiled and tested with the following development tools: CodeWarrior Development Studio for Microcontrollers Version 10.1 including support available for ColdFire V1 devices, MMA955xL devices and MMA955xL user-mode service pack. None /docs/en/supporting-information/MMA9553LSWRN.pdf English documents 229318 None 371282830530968666 2023-06-19 N /docs/en/supporting-information/MMA9553LSWRN.pdf MMA9553L Version 1.33 Software - Release Notes /docs/en/supporting-information/MMA9553LSWRN.pdf documents 371282830530968666 Supporting Information N en None Y pdf 1.0 N N MMA9553L Version 1.33 Software - Release Notes 229.3 KB MMA9553LSWRN N 1358548494708716366430 セレクタ・ガイド 1 /docs/en/product-selector-guide/SENSSELECT.pdf 2016-10-31 1424471489332715853854 PSP 15 May 13, 2024 Selector Guide For system designers who want to work with various sensor types such as accelerometers, pressure sensors and magnetic sensors for applications in automotive, industrial IoT and medical. None /docs/en/product-selector-guide/SENSSELECT.pdf English documents 252964 None 553557935274807777 2025-02-25 N /docs/en/product-selector-guide/SENSSELECT.pdf Sensor Product Selector Guide /docs/en/product-selector-guide/SENSSELECT.pdf documents 553557935274807777 Selector Guide N en None Y pdf 13 N N Sensor Product Selector Guide 253.0 KB SENSSELECT N 1424471489332715853854 データ・シート 1 /docs/en/data-sheet/MMA955xL.pdf 2016-10-31 1308257636911711701958 PSP 1 Apr 30, 2015 Data Sheet The MMA955xL device an intelligent sensor, incorporating dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit programmable microcontroller. None /docs/en/data-sheet/MMA955xL.pdf English documents 476532 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MMA955xL.pdf MMA9553L: Freescale Intelligent Motion Sensing Platform Data Sheet for the MMA955xL including the MMA9553L /docs/en/data-sheet/MMA955xL.pdf documents 980000996212993340 Data Sheet N en None Y pdf 3.1 N N MMA9553L: Freescale Intelligent Motion Sensing Platform Data Sheet for the MMA955xL including the MMA9553L 476.5 KB MMA955XL N 1308257636911711701958 ファクト・シート 1 /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf 2016-10-31 1092086607381736729272 PSP 14 Feb 12, 2020 Fact Sheet Overview Over the past 25 years, NXP Semiconductors Sensor Products Division has supplied the world with more than 650 million micro-electromechanical systems (MEMS)-based sensors. None /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf English documents 2216251 None 736675474163315314 2025-02-25 N /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf Sensor Solutions /docs/en/fact-sheet/SNSRSOLUTNTMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 13 N N Sensor Solutions 2.2 MB SNSRSOLUTNTMFS N 1092086607381736729272 ホワイト・ペーパ 2 /docs/en/white-paper/LOWPOWERSENSWP.pdf 2016-10-31 1365095391795722334999 PSP 17 May 20, 2015 White Paper Low power sensors with the integrated capability to reduce power consumption play an important role in extending the battery life in portable systems. NXP has extensive capabilities in sensors, microcontrollers, power management, and RF technologies. None /docs/en/white-paper/LOWPOWERSENSWP.pdf English documents 381651 None 918633085541740938 2025-02-25 N /docs/en/white-paper/LOWPOWERSENSWP.pdf Low Power Sensing /docs/en/white-paper/LOWPOWERSENSWP.pdf documents 918633085541740938 White Paper N en None Y pdf 2 N N Low Power Sensing 381.7 KB LOWPOWERSENSWP N 1365095391795722334999 /docs/en/white-paper/SENFEIOTLFWP.pdf 2016-10-31 1363970116444726555210 PSP 18 Jul 9, 2013 White Paper The age of sensor technology is upon us. These days, it&#8217;s unusual to experience an electronic consumer product that doesn&#8217;t use sensors to create new experiences for its users. Sensors are experiencing a renaissance of sorts as micro-electromechanical systems (MEMS) technology becomes less expensive and further miniaturized, in turn fueling penetration of sensors into new applications and creating new potential for the sensor market. None /docs/en/white-paper/SENFEIOTLFWP.pdf English documents 3621913 None 918633085541740938 2025-02-24 N /docs/en/white-paper/SENFEIOTLFWP.pdf The Role of Sensor Fusion and Remote Emotive Computing (REC) in the Internet of Things (IoT) - White Paper /docs/en/white-paper/SENFEIOTLFWP.pdf documents 918633085541740938 White Paper N en None Y pdf 1 N N The Role of Sensor Fusion and Remote Emotive Computing (REC) in the Internet of Things (IoT) - White Paper 3.6 MB SENFEIOTLFWP N 1363970116444726555210 ユーザ・ガイド 1 /secured/assets/documents/en/user-guide/MMA955xLSTUG.pdf 2016-10-31 1338247495722719781935 PSP 11 May 28, 2012 User Guide The MMA955xL devices are 3-axis accelerometers from NXP&#8217;s Xtrinsic family of intelligent, motion-sensing platforms. They incorporate dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit, programmable microcontroller. The KITMMA9550LEVM and KITMMA9551LEVM evaluation kits for the MMA955xL devices demonstrates the common accelerometer user cases and provides access to device-specific features. Registration without Disclaimer /secured/assets/documents/en/user-guide/MMA955xLSTUG.pdf English documents 2618235 None 132339537837198660 2023-06-18 Y /webapp/Download?colCode=MMA955XLSTUG&lang_cd=ja MMA9550L and MMA9551L Sensor Toolboxes - User’s Guide /secured/assets/documents/en/user-guide/MMA955xLSTUG.pdf documents 132339537837198660 User Guide N en Extended Y pdf 0 Y N MMA9550L and MMA9551L Sensor Toolboxes - User’s Guide 2.6 MB MMA955XLSTUG N 1338247495722719781935 リファレンス・マニュアル 4 /docs/en/reference-manual/MMA9553LSWRM.pdf 2016-10-31 1366605922919716367967 PSP 2 Jun 10, 2015 Reference Manual MMA9553LSWRM, MMA9553L Intelligent Pedometer Platform Software Reference Manual, This reference manual describes the features, architecture, usage examples, and programming model of the MMA9553L intelligent pedometer platform. None /docs/en/reference-manual/MMA9553LSWRM.pdf English documents 688135 None 500633505221135046 2023-06-18 N /docs/en/reference-manual/MMA9553LSWRM.pdf MMA9553LSWRM, MMA9553L Intelligent Pedometer Platform Software Reference Manual - Reference Manual /docs/en/reference-manual/MMA9553LSWRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 2.2 N N MMA9553LSWRM, MMA9553L Intelligent Pedometer Platform Software Reference Manual - Reference Manual 688.1 KB MMA9553LSWRM N 1366605922919716367967 /docs/en/reference-manual/MMA955xLRM.pdf 2016-10-31 1308349565841720143833 PSP 3 Aug 15, 2013 Reference Manual This reference manual describes the features, architecture and programming model of the MMA955xL, an intelligent, three-axis accelerometer. None /docs/en/reference-manual/MMA955xLRM.pdf English documents 3520286 None 500633505221135046 2023-06-18 N /docs/en/reference-manual/MMA955xLRM.pdf Intelligent, Motion-Sensing Platform Hardware Reference Manual for MMA955XL, including the MMA9553L and the MMA9559L /docs/en/reference-manual/MMA955xLRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 1.0 N N Intelligent, Motion-Sensing Platform Hardware Reference Manual for MMA955XL, including the MMA9553L and the MMA9559L 3.5 MB MMA955XLHWRM N 1308349565841720143833 /docs/en/reference-manual/MMA955xLSWRM.pdf 2012-04-06 1333744965510695694497 PSP 4 Apr 6, 2012 Reference Manual This software reference manual describes the features, architecture, and programming model of the MMA9550L, MMA9551L, and MMA9553L intelligent, motion-sensing platforms. The MMA955xL low-g, 3-axis accelerometer is a member of NXP&#8217;s Xtrinsic family of intelligent sensor platforms. The device incorporates dedicated accelerometer MEMS transducers, signal-conditioning, data conversion, a 32-bit programmable microcontroller. None /docs/en/reference-manual/MMA955xLSWRM.pdf English documents 648677 None 500633505221135046 2022-12-07 N /docs/en/reference-manual/MMA955xLSWRM.pdf MMA955xL Intelligent, Motion-Sensing Platform Software - Reference Manual /docs/en/reference-manual/MMA955xLSWRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0 N N MMA955xL Intelligent, Motion-Sensing Platform Software - Reference Manual 648.7 KB MMA955XLSWRM N 1333744965510695694497 /docs/en/reference-manual/MMA9559LSWRM.pdf 2012-02-01 1328135418986715138540 PSP 5 Mar 13, 2012 Reference Manual This reference manual describes the features, architecture and programming model of the MMA9559L Intelligent, Motion-Sensing Platform. This device incorporates dedicated accelerometer MEMS transducers, signal conditioning, data conversion, and a 32-bit programmable microcontroller. For information about the device&#8217;s hardware, see the MMA955xL Intelligent, Motion-Sensing Hardware Reference Manual (MMA955xLRM). None /docs/en/reference-manual/MMA9559LSWRM.pdf English documents 387086 None 500633505221135046 2022-12-07 N /docs/en/reference-manual/MMA9559LSWRM.pdf MMA9559LSWRM.book /docs/en/reference-manual/MMA9559LSWRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0.1 N N MMA9559LSWRM.book 387.1 KB MMA9559LSWRM N 1328135418986715138540 true Y Products
