32-bit Power Architecture® Microcontrollers

MPC5121e 新規採用非推奨

NXP ® MPC5121e and MPC5123 MCUs provide an excellent computing platform for OEM, aftermarket, commercial telematics and consumer applications—including embedded solutions requiring network connectivity, graphics and a graphical user interface.

  • Optimal for applications such as automotive center stack systems
  • An array of I/Os and dedicated cores reduces bill-of-materials costs while improving functionality
  • Offers competitive cost, quality, reliability and excellent performance
  • Includes widespread mobileGT ® alliance firmware and software driver support
  • Supports real-time operating systems (Green Hills, QNX and Wind River, Linux®)

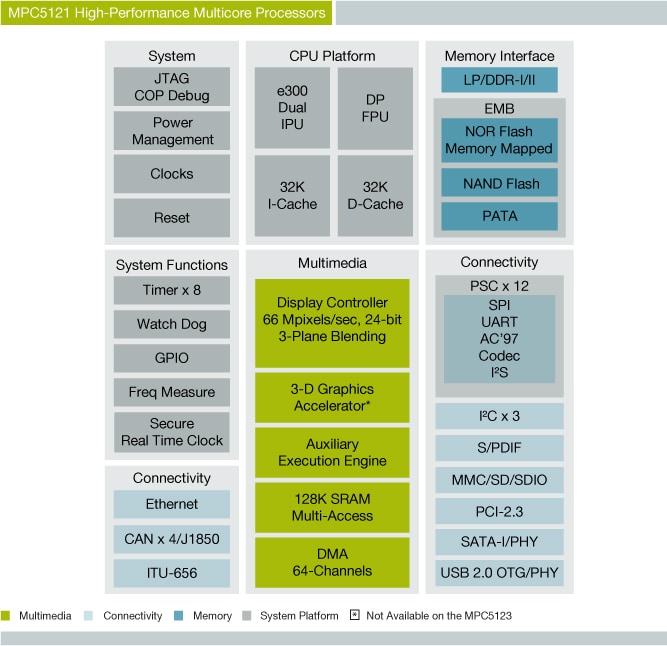

ブロック図

Freescale mobileGT MPC5121E Microcontroller Block Diagram

NXP<sup>&#174;</sup> mobileGT<sup>&#174;</sup> MPC5121E Microcontroller Block Diagram
図を取得する PDF

Features

  • e300 core built on Power Architecture technology
  • Up to 400 MHz performance and 760 MIPS
  • AXE, a 32-bit RISC audio accelerator engine
  • PowerVR® MBX Lite 2D/3D Graphics Engine (not included in the MPC5123)
  • DIU integrated display controller supports up to XGA resolution
  • 12 programmable serial controllers (PSC)
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 15 years after launch
