1805-2170 MHz, 1.3 W Avg., 28 V RF LDMOS Wideband Integrated Power Amplifiers
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

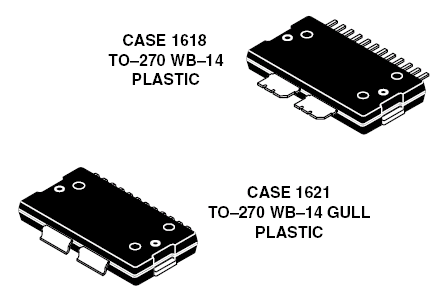

The MD7IC2012NR1 and MD7IC2012GNR1 wideband integrated circuits are designed with on-chip matching that make them usable from 1805 to 2170 MHz. This multi-stage structure is rated for 24 to 32 volt operation and covers all typical cellular base station modulation formats.
製品詳細
RF Performance Tables
Driver Application - 2100 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ1A = IDQ1B = 20 mA, IDQ2A = IDQ2B = 70 mA, Pout = 1.3 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 2110 MHz | 31.0 | 14.7 | –51.3 |
| 2140 MHz | 31.3 | 14.8 | –51.2 |
| 2170 MHz | 31.5 | 14.9 | –50.6 |
- Capable of Handling 5:1 VSWR, @ 32 Vdc, 2140 MHz, 14 Watts CW Output Power (3 dB Input Overdrive from Rated Pout)
- Typical Pout @ 1 dB Compression Point ≃ 12 Watts CW
Driver Application - 1800 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ1A = IDQ1B = 20 mA, IDQ2A = IDQ2B = 70 mA, Pout = 1.3 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 1805 MHz | 32.8 | 13.4 | –51.0 |
| 1840 MHz | 32.2 | 13.6 | –51.2 |
| 1880 MHz | 31.6 | 13.8 | –51.8 |
