1880-2025 MHz, 24 W Avg., 28 V Single W-CDMA Lateral N-Channel RF Power MOSFETs
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

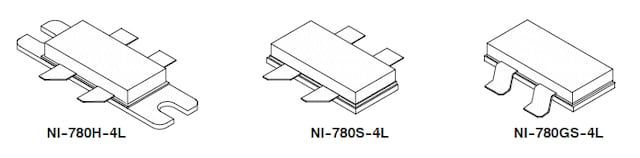

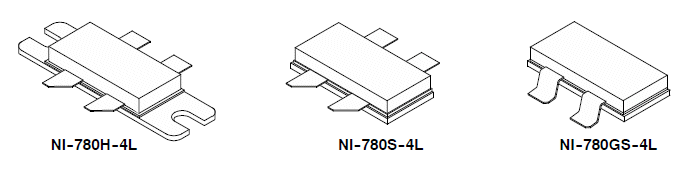

The MRF8P20140WHR3, MRF8P20140WHSR3 and MRF8P20140WGHSR3 are designed for CDMA base station applications with frequencies from 1880 to 2025 MHz. Can be used in Class AB and Class C for all typical cellular base station modulation formats.
製品詳細
RF Performance Table
2025 MHz
Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 500 mA, VGSB = 1.2 Vdc, Pout = 24 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
| 1880 MHz | 16.0 | 42.8 | 8.0 | –31.0 |
| 1920 MHz | 16.0 | 43.7 | 8.1 | –32.6 |
| 2025 MHz | 15.9 | 42.0 | 8.1 | –31.2 |
- Capable of Handling 10:1 VSWR, @ 30 Vdc, 1920 MHz, 160 Watts CW Output Power (3 dB Input Overdrive from Rated Pout)
- Typical Pout @ 3 dB Compression Point ≃ 170 Watts
