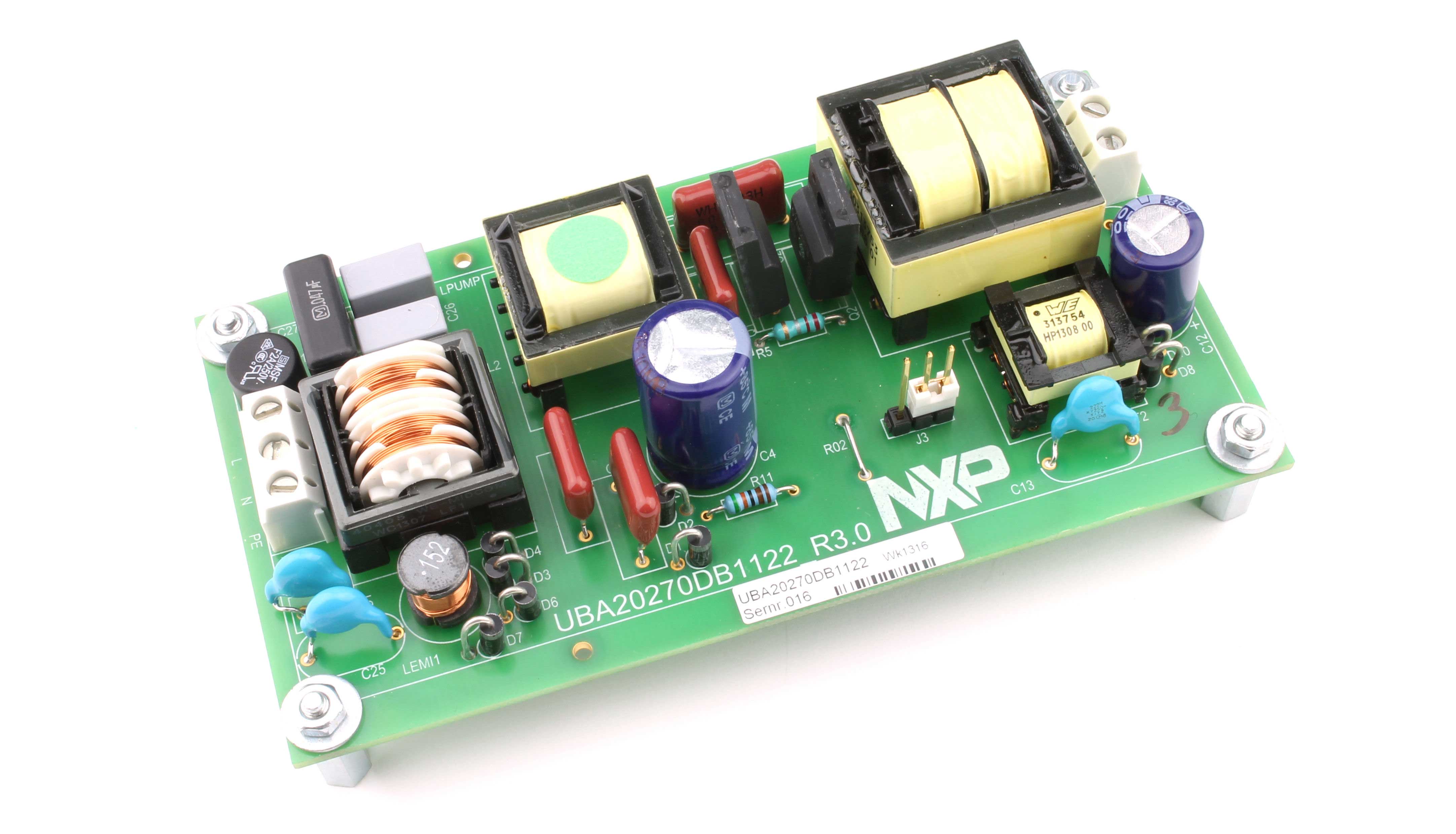

230V 35W LED Spot high PF demo board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.
The UBA20270 originally is a resonant CFL controller, but as shown in this design it can be used as LED driver as well. The board uses a passive PFC topology giving Class C mains harmonics performance for a single stage solution. Unlike single stage flyback solutions this board has neglectable LED current ripple.
