2496-2690 MHz, 9 W Avg., 28 V Airfast® RF Power LDMOS Transistors

AFT26HW050S
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

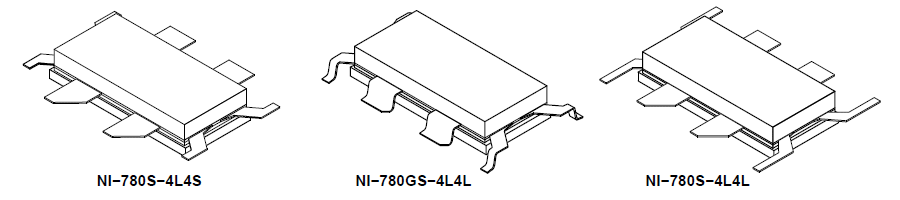

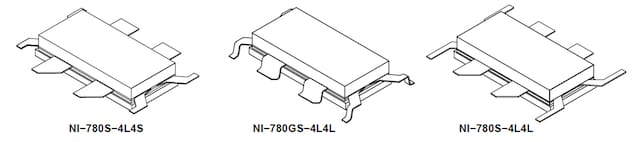

画像にカーソルを合わせると拡大表示されます。

The AFT26HW050SR3, AFT26HW050GSR3 and AFT26H050W26SR3 9 watt asymmetrical Doherty RF power LDMOS transistors are designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2496 to 2690 MHz.

製品詳細

セクションを選択:

RF Performance Table

2600 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 100 mA, VGSB = 1.4 Vdc, Pout = 9 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
2620 MHz14.948.67.9–28.4
2655 MHz14.648.37.9–32.6
2690 MHz14.247.17.8–37.3
