250 W CW over 2400-2500 MHz, 32 V RF Power LDMOS Transistor
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The MRF7S24250N 250 W CW RF power transistor is designed for industrial, scientific, medical (ISM) and industrial heating applications at 2450 MHz. This device is suitable for use in CW, pulse and linear applications. This high gain, high efficiency rugged device is targeted to replace industrial magnetrons and will provide longer life and easier servicing.
製品詳細
RF Performance Tables
Typical Performance

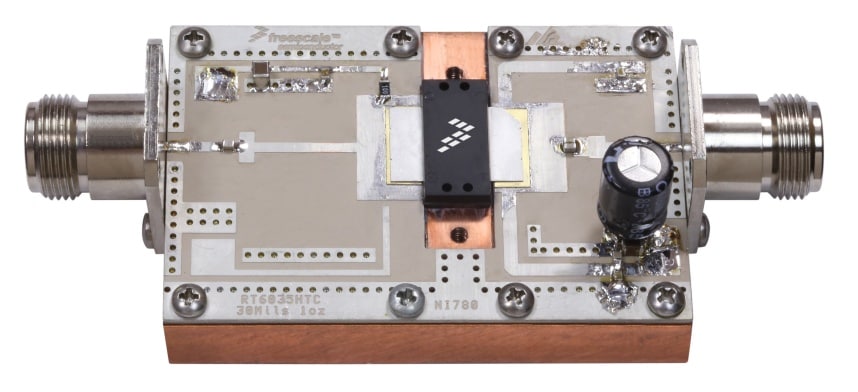

In 2400–2500 MHz reference circuit, VDD = 32 Vdc| Frequency (MHz) |
Signal Type | Pin (W) |
Gps (dB) |
ηD (%) |
Pout (W) |
| 2400 | CW | 9.0 | 14.5 | 55.5 | 255 |
| 2450 | 9.0 | 14.7 | 54.8 | 263 | |
| 2500 | 9.0 | 14.3 | 55.5 | 242 |
Load Mismatch/Ruggedness
| Frequency (MHz) |
Signal Type | VSWR | Pin (W) |
Test Voltage |
Result |
| 2450 | CW | > 10:1 at all Phase Angles | 14 (3 dB Overdrive) | 32 | No Device Degradation |
