32-bit Microcontrollers

MPC535
製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

The advanced Power Architecture® MPC535 32-bit embedded microcontroller from NXP® is an excellent choice for complex, cost-sensitive industrial applications that operate in a wide range of climates and environments. Ideal applications include building control/security, service processors and commercial POS (point-of-sale) systems. With a highly integrated set of peripherals including 1 MB flash memory, a 40 MHz Power Architecture core and floating point unit, you can speed products to market at a cost-effective price point.

The MPC535 is backed by the exceptional performance record of Our MPC500 family of 32-bit embedded controllers.

With the MPC535, as with other members of the NXP MPC500 family, you have a clear migration path between products and from previous generations. As needs change, you can easily modify or upgrade products cost-effectively and with minimal development impact.

The MPC535 leverages a wide range of development tools and support software already available for this computing platform, thereby helping to minimize development time.

NXP also offers a multi-output power supply device, the MC33394, which provides the voltage levels and sequencing necessary to allow plug-and-play use of the MPC500 family.

もっと見る

製品詳細

ブロック図

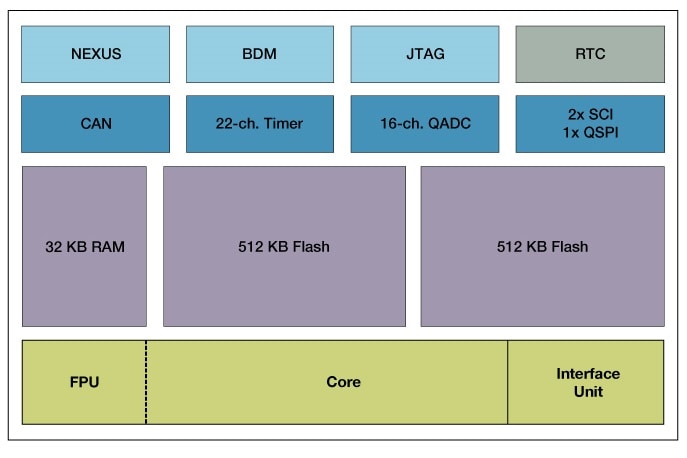

MPC535 Block Diagram

MPC535 Block Diagram
図を取得する PDF

Features

  • 1 MB of internal flash memory (divided into two blocks of 512 KB)
  • 32 KB static RAM (CALRAM)
  • A 22-timer channel modular I/O system (MIOS14)
  • One TouCAN module
  • One enhanced queued analog system with analog multiplexors (AMUX) for 20 total analog channels. These modules are configured so each module can access all 20 of the analog inputs to the part
  • One queued serial multi-channel module, which contains a queued serial peripheral interface (QSPI) and two serial controller interfaces (SCI/UART)
  • A J1850 (DLCMD2) communications module
  • A NEXUS debug port (class 3)—IEEE®-ISTO 5001-1999
  • JTAG and background debug mode (BDM)
