470-860 MHz, 600 W, 50 V Broadband RF Power LDMOS Transistors
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

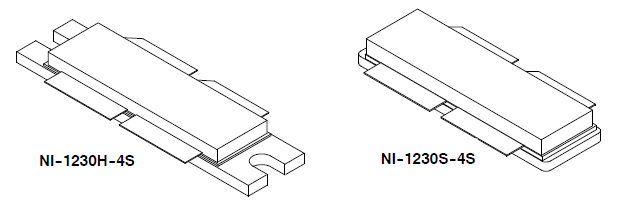

MRFE6VP8600HR6 and MRFE6VP8600HSR6 are optimized for broadband operation from 470 to 860 MHz. Devices have an integrated input matching network for better power distribution. These devices are ideally suited for use in analog or digital television transmitters.
製品詳細
RF Performance Tables
Narrowband Performance
Typical Narrowband Performance: VDD = 50 Volts, IDQ = 1400 mA, Channel Bandwidth = 8 MHz, Input Signal PAR = 9.5 dB @ 0.01% Probability on CCDF. ACPR measured in 7.61 MHz Signal Bandwidth @ ±4 MHz Offset with an Integration Bandwidth of 4 kHz.| Signal Type | Pout (W) |
f (MHz) |
Gps (dB) |
ηD (%) |
ACPR (dBc) |
IRL (dB) |
| DVB-T (8k OFDM) | 125 Avg. | 860 | 19.3 | 30.0 | –65.5 | –12 |
Pulse Broadband Performance
Typical Pulse Broadband Performance: VDD = 50 Volts, IDQ = 1400 mA, Pulse Width = 100 µsec, Duty Cycle = 10%| Signal Type | Pout (W) |
f (MHz) |
Gps (dB) |
ηD (%) |
| Pulse | 600 Peak | 470 | 19.3 | 47.1 |
| 650 | 20.0 | 53.1 | ||
| 860 | 18.8 | 48.9 |
