920-960 MHz, 58 W Avg., 28 V Single W-CDMA Lateral N-Channel RF Power MOSFET
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

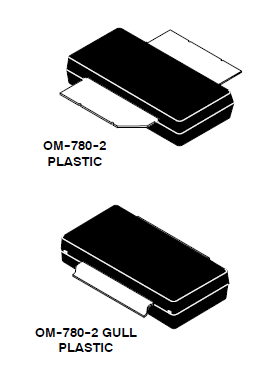

The MRF8S9202NR3 and MRF8S9202GNR3 are designed for CDMA base station applications with frequencies from 920 to 960 MHz. Can be used in Class AB and Class C for all typical cellular base station modulation formats.
製品詳細
RF Performance Table
900 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ = 1300 mA, Pout = 58 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
| 920 MHz | 19.0 | 36.3 | 6.3 | –38.2 |
| 940 MHz | 19.1 | 37.2 | 6.2 | –38.0 |
| 960 MHz | 18.9 | 37.3 | 6.1 | –37.1 |
- Capable of Handling 7:1 VSWR, @ 32 Vdc, 920 MHz, 290 Watts CW Output Power (3 dB Input Overdrive from Rated Pout), Designed for Enhanced Ruggedness
- Typical Pout @ 1 dB Compression Point ≃ 200 Watts CW
