OM13032
アクティブ -

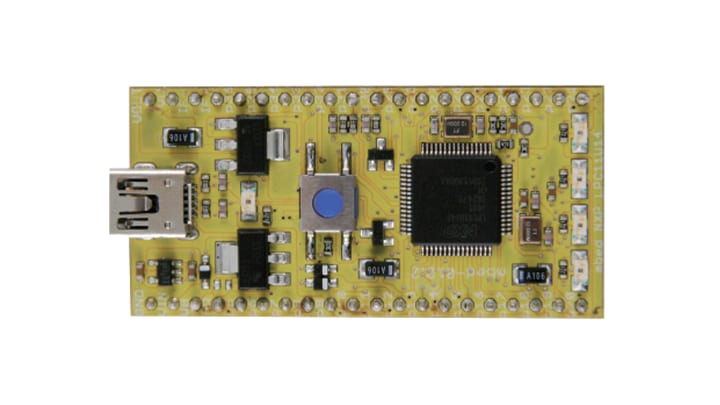

ARM mbed LPC11U24 Board.
Arm mbed LPC11U24 Board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
This board is no longer in production. The replacement for this board is the OM13058 (LPCXpresso11U68)
The mbed NXP® LPC11U24 Microcontroller in particular is designed for prototyping low cost USB devices, battery powered applications and 32-bit Arm® Cortex™-M0 based designs. It is packaged as a small DIP form-factor for prototyping with through-hole PCBs, stripboard and breadboard, and includes a built-in USB FLASH programmer.
The mbed Microcontrollers provide experienced embedded developers a powerful and productive platform for building proof-of-concepts. For developers new to 32-bit microcontrollers, mbed provides an accessible prototyping solution to get projects built with the backing of libraries, resources and support shared in the mbed community.
製品詳細
Features
Microcontroller
- NXP® LPC11U24 MCU
- Low-power Arm® Cortex™-M0 Core
- 48 MHz, 8 KB RAM, 32 KB FLASH
Connectivity
- USB Device
- 2 x SPI
- I²C
- UART
- 6 x ADC
- GPIO
- 40-pin 0.1" pitch DIP package, 54 x 26 mm
Power Management
- 5 V USB
- 4.5 V - 9 V supply
- 2.4 V - 3.3 V battery
Size
- Prototyping form-factor
Support
- mbed.org Developer Website
- Lightweight Online Compiler
- High-level C/C++ SDK
- Cookbook of published libraries and projects
- Built-in USB drag 'n' drop FLASH programmer
