Double-Balanced Mixer and Oscillator

SA612AD
製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

The SA612A is a low-power VHF monolithic double-balanced mixer with on-board oscillator and voltage regulator. It is intended for low cost, low power communication systems with signal frequencies to 500 MHz and local oscillator frequencies as high as 200 MHz. The mixer is a 'Gilbert cell' multiplier configuration which provides gain of 14 dB or more at 45 MHz.

The oscillator can be configured for a crystal, a tuned tank operation, or as a buffer for an external L.O. Noise figure at 45 MHz is typically below 6 dB and makes the device well suited for high performance cordless phone/cellular radio. The low power consumption makes the SA612A excellent for battery operated equipment. Networking and other communications products can benefit from very low radiated energy levels within systems. The SA612A is available in an 8-lead SO (surface-mounted miniature package).

製品画像を見る

ブロック図

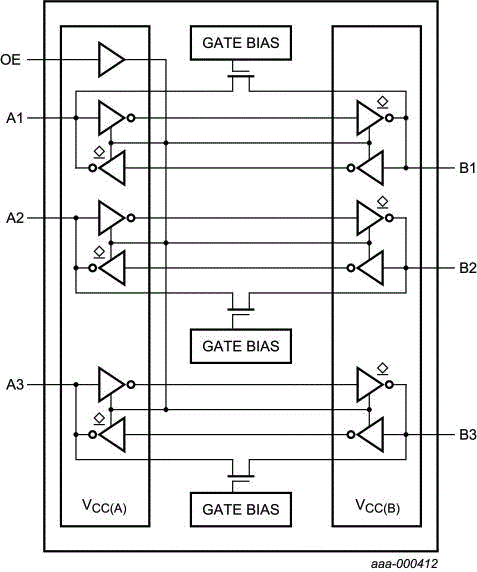

NTS0103 Block Diagram

NTS0103 Block Diagram
図を取得する PDF

Features

Key Features

  • Low current consumption
  • Low cost
  • Operation to 500 MHz
  • Low radiated energy
  • Low external parts count; suitable for crystal/ceramic filter
  • Excellent sensitivity, gain, and noise figure

購入/パラメータ

1 結果

除外 1 NRND

パーツ

説明を表示

コンピュータ支援設計 モデル

パッケージタイプ

機能

RF frequency [max] (MHz)

VCC [min] (V)

VCC [max] (V)

ICC [max] (mA)

Mixer gain [min] (dB)

Noise figure [Typ] (dB)

状況

SA612AD
データ・シート

SO8

Mixer

500

4.5

8

3@6 V

14

5@45 MHz

製造中止
