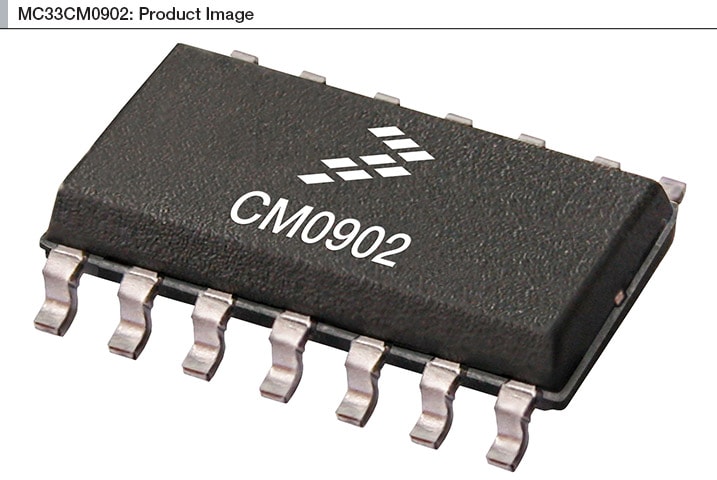

Dual CAN High-Speed Transceiver
MC34CM0902 removed from active portfolio. Possible Replacement Part: TJA1059TK.
The NXP® MC34CM0902 dual CAN high-speed physical layer is a cost-effective product designed to target standard CAN high-speed applications requiring multiple transceivers. The transceivers are used to convert digital protocol information into analog CAN communication.

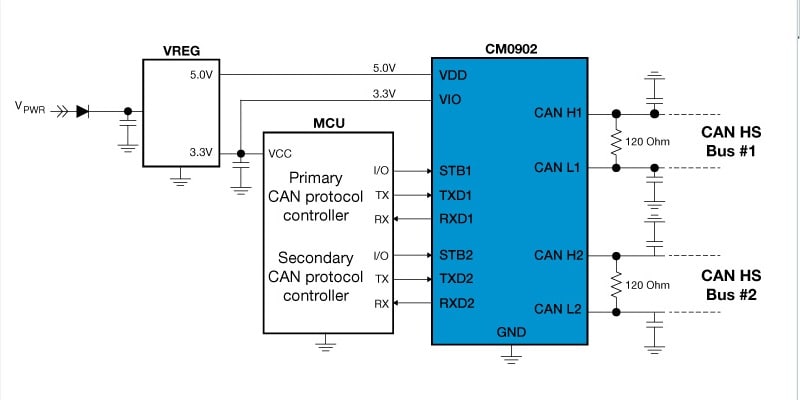

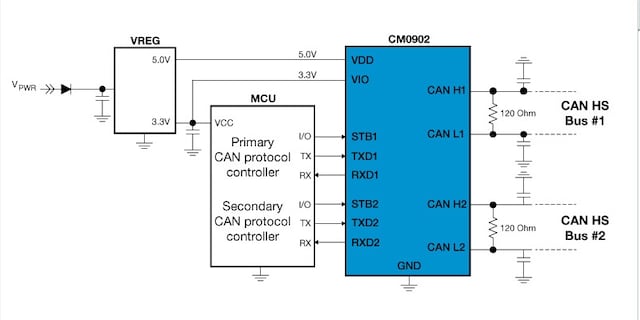

- Provides the physical interface between two fully independent CAN protocol controller of an MCU and the physical dual wires of the CAN bus
- Packaged in an 14-pin SOICN with industry standard pinout and offers excellent EMC and ESD performance without the need for external filter components
- Features a CAN bus Wake-up mechanism and it is suitable for industrial applications
- Industry-specific product options are available
