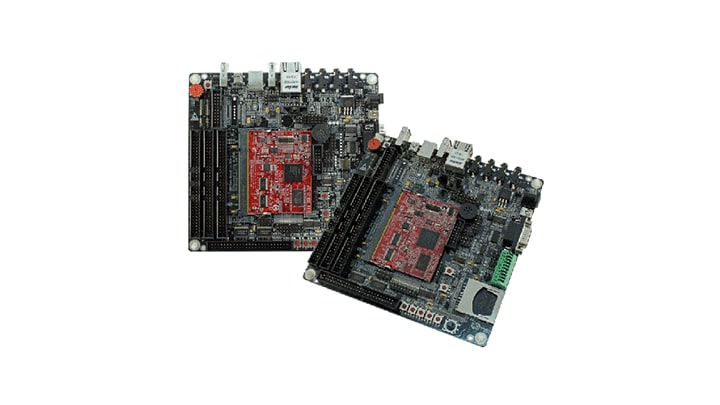

EA LPC1788 Evaluation Board.
EA LPC1788 Evaluation Board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
This board is no longer manufactured and will only be available while supplies last. The replacement for this board is the OM13085 board.
The EA LPC177x/8x Evaluation Board allows you to quickly and easily evaluate the LPC177x/8x family of microcontrollers. The microcontroller, board, and the accompanying features make it a great starting point for your next Cortex-M3 project.
Populated with the LPC1788 to demonstrate LPC177x/8x features.
製品詳細
Features
Clock Crystals
- 12 MHz crystal for CPU, 32.768 kHz crystal for RTC
Memory
- 128 MB NAND FLASH + 512 kB internal
- 32 MB SDRAM + 96 kB internal
- 256 kbit I²C EEPROM for storing
Connectivity
- 200 pos expansion connector (SODIMM standard), 0.6 mm pitch
- 100/10 M Ethernet interface based on SMSC LAN8720 Ethernet PHY
