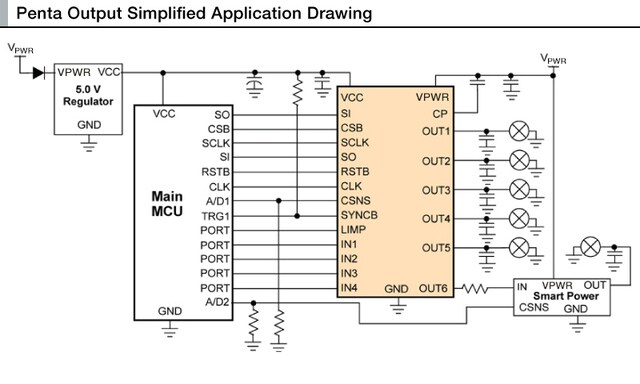

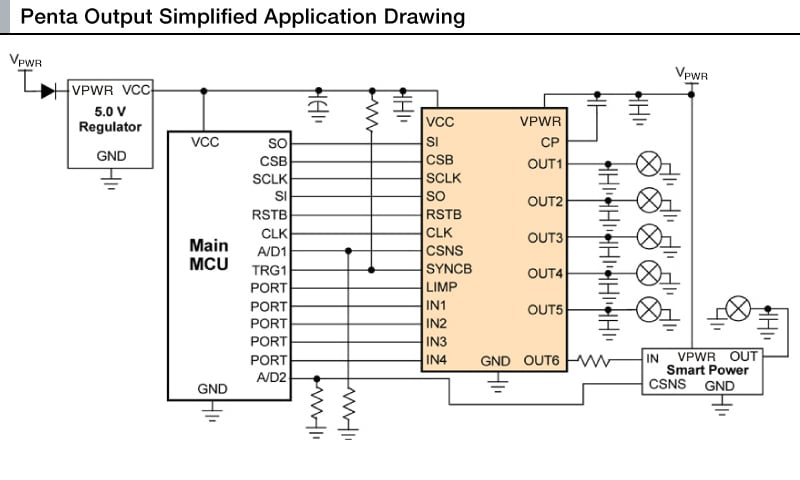

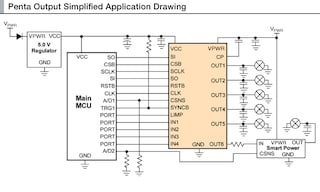

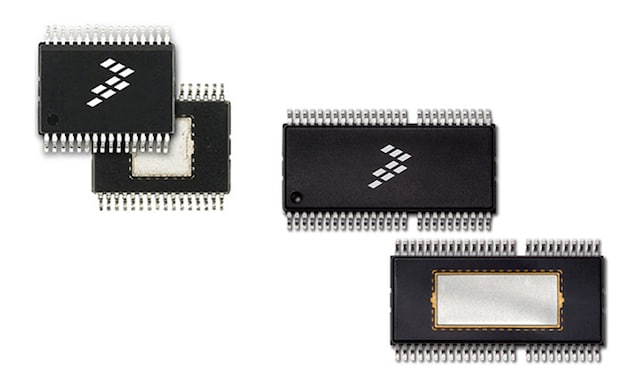

External Industrial Lighting 5MHz SPI-Controlled Switch

MC12XSF 製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

The NXP® 12XSF eXtreme Switch products belong to an expanding family that can control and diagnose various types of loads, such as incandescent bulbs or light emitting diodes (LEDs), with enhanced precision.

  • Combines flexibility through daisy chainable SPI at 5.0 MHz, extended digital and analog feedback, which supports safety and robustness
  • Facilitates electronic control unit designs supported by the use of compatible MCU software and PCB footprints, for each device variant

製品詳細

セクションを選択:

比較表

12XSF Family Comparison

Product # of outputs RDSon (mOhm) Package Suggested tool
MC07XSF517 Penta 3 x 7.0
2 x 17.0		 SOIC EP 54 KIT07XS6517EVB
MC08XSF421 Quad 2 x 8.0
2 x 21.0		 SOIC EP 32 FRDM-MC12XSF
MC17XSF400 Quad 4 x 17.0 SOIC EP 32 FRDM-MC12XSF
MC17XSF500 Penta 5 x 17.0 SOIC EP 32 FRDM-MC12XSF
MC40XSF500 Penta 5 x 40.0 SOIC EP 32 FRDM-MC12XSF
N true 0 PSPMC12XSFja 8 アプリケーション・ノート Application Note t789 2 データ・シート Data Sheet t520 5 ユーザ・ガイド User Guide t792 1 ja ja ja データ・シート Data Sheet 5 1 1.0 English The 12XSF is the latest SMARTMOS<sup>&#174;</sup> achievement in DC motors and lighting drivers. 1426112063698737473724 PSP 1.5 MB None None documents None 1426112063698737473724 /docs/en/data-sheet/MC12XSFD3.pdf 1525757 /docs/en/data-sheet/MC12XSFD3.pdf MC12XSFD3 documents N N 2015-03-11 MC12XSFD3, Penta 40 mOhm High-side Switch - Data Sheet /docs/en/data-sheet/MC12XSFD3.pdf /docs/en/data-sheet/MC12XSFD3.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Mar 11, 2015 980000996212993340 Data Sheet Y N MC12XSFD3, Penta 40 mOhm High-side Switch - Data Sheet 2 1.0 English The 12XSF is the latest SMARTMOS<sup>&#174;</sup> achievement in DC motors and lighting drivers for industrial applications. 1421772453675685586337 PSP 1.5 MB None None documents None 1421772453675685586337 /docs/en/data-sheet/MC12XSFD4.pdf 1512087 /docs/en/data-sheet/MC12XSFD4.pdf MC12XSFD4 documents N N 2015-01-20 MC12XSFD4, Dual 8.0 mOhm and Dual 21 mOhm High-side Switch - Data Sheet /docs/en/data-sheet/MC12XSFD4.pdf /docs/en/data-sheet/MC12XSFD4.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Feb 18, 2015 980000996212993340 Data Sheet Y N MC12XSFD4, Dual 8.0 mOhm and Dual 21 mOhm High-side Switch - Data Sheet 3 1.0 English The 12XSF is the latest SMARTMOS<sup>&#174;</sup> achievement in DC motors and lighting drivers. 1421882509252748558821 PSP 1.7 MB None None documents None 1421882509252748558821 /docs/en/data-sheet/MC12XSFD1.pdf 1669869 /docs/en/data-sheet/MC12XSFD1.pdf MC12XSFD1 documents N N 2015-01-22 MC12XSFD1, 17 mOhm and 7.0 mOhm High-side Switches - Data Sheet /docs/en/data-sheet/MC12XSFD1.pdf /docs/en/data-sheet/MC12XSFD1.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Jan 21, 2015 980000996212993340 Data Sheet Y N MC12XSFD1, 17 mOhm and 7.0 mOhm High-side Switches - Data Sheet 4 2.0 English The 07XSF517 is the latest achievement in lighting drivers. It belongs to an expanding family to control and diagnose incandescent lamps and light-emitting diodes (LEDs) with enhanced precision. It combines flexibility through daisy chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety and robustness. 1373574854701713846473 PSP 2.2 MB None None documents None 1373574854701713846473 /docs/en/data-sheet/MC07XSF517.pdf 2185131 /docs/en/data-sheet/MC07XSF517.pdf MC07XSF517 documents N N 2013-07-12 MC07XSF517, Triple 7.0 mOhm and Dual 17 mOhm High Side Switch - Data sheet /docs/en/data-sheet/MC07XSF517.pdf /docs/en/data-sheet/MC07XSF517.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Sep 30, 2013 980000996212993340 Data Sheet Y N MC07XSF517, Triple 7.0 mOhm and Dual 17 mOhm High Side Switch - Data sheet 5 2.0 English The 17XSF500 is the latest achievement in lighting drivers. It belongs to an expanding family to control and diagnose incandescent lamps and light-emitting diodes (LEDs) with enhanced precision. It combines flexibility through daisy chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety, and robustness. 1373566740712713896158 PSP 1.8 MB None None documents None 1373566740712713896158 /docs/en/data-sheet/MC17XSF500.pdf 1835435 /docs/en/data-sheet/MC17XSF500.pdf MC17XSF500 documents N N 2013-07-12 MC17XSF500, Penta 17 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC17XSF500.pdf /docs/en/data-sheet/MC17XSF500.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Sep 30, 2013 980000996212993340 Data Sheet Y N MC17XSF500, Penta 17 mOhm High Side Switch - Data Sheet アプリケーション・ノート Application Note 2 6 3.0 English This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. 10jsBvfc PSP 3.5 MB None None documents None 10jsBvfc /docs/en/application-note/AN2409.pdf 3536520 /docs/en/application-note/AN2409.pdf AN2409 documents N N 2016-10-31 AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf /docs/en/application-note/AN2409.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 21, 2014 645036621402383989 Application Note Y N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 7 1.0 English The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. 1225311007711718167766 PSP 1.0 MB None None documents None 1225311007711718167766 /docs/en/application-note/AN3670.pdf 1013814 /docs/en/application-note/AN3670.pdf AN3670 documents N N 2016-10-31 AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf /docs/en/application-note/AN3670.pdf Application Note N 645036621402383989 2024-01-19 pdf N en Oct 29, 2008 645036621402383989 Application Note Y N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 ユーザ・ガイド User Guide 1 8 2.0 English The FRDM-17XSF5-EVB, FRDM-17XSF4-EVB, FRDM-08XSF4-EVB and FRDM-40XSF5-EVB evaluation boards feature one of the ICs belonging to NXP&#8217;s 12XSF high-side switch products family. 1462565398894733056482 PSP 4.8 MB None None documents None 1462565398894733056482 /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf 4756895 /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf KTFRDM-MC12XSFUG documents N N 2018-07-18 KTFRDM-MC12XSFUG, FRDM-17XSF5-EVB, FRDM-17XSF4-EVB, FRDM-08XSF4-EVB and FRDM-40XSF5-EVB evaluation boards - User's guide /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Jul 18, 2018 132339537837198660 User Guide Y N KTFRDM-MC12XSFUG, FRDM-17XSF5-EVB, FRDM-17XSF4-EVB, FRDM-08XSF4-EVB and FRDM-40XSF5-EVB evaluation boards - User's guide false 0 MC12XSF downloads ja true 1 Y PSP アプリケーション・ノート 2 /docs/en/application-note/AN2409.pdf 2016-10-31 10jsBvfc PSP 6 Oct 21, 2014 Application Note This application note provides guidelines for handling and assembly of SOIC package during Printed Circuit Board (PCB) assembly. None /docs/en/application-note/AN2409.pdf English documents 3536520 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN2409.pdf AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note /docs/en/application-note/AN2409.pdf documents 645036621402383989 Application Note N en None Y pdf 3.0 N N AN2409, Small Outline Integrated Circuit (SOIC) Package - Application Note 3.5 MB AN2409 N 10jsBvfc /docs/en/application-note/AN3670.pdf 2016-10-31 1225311007711718167766 PSP 7 Oct 29, 2008 Application Note The MC33781 and MC33784 together constitute NXP Semiconductors's implementation of the Distributed System Interface (DSI) Bus Standard, Version 2.02. None /docs/en/application-note/AN3670.pdf English documents 1013814 None 645036621402383989 2024-01-19 N /docs/en/application-note/AN3670.pdf AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 /docs/en/application-note/AN3670.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN3670, Implementing a DSI Network Using the MC33781 and the MC33784 1.0 MB AN3670 N 1225311007711718167766 データ・シート 5 /docs/en/data-sheet/MC12XSFD3.pdf 2015-03-11 1426112063698737473724 PSP 1 Mar 11, 2015 Data Sheet The 12XSF is the latest SMARTMOS<sup>&#174;</sup> achievement in DC motors and lighting drivers. None /docs/en/data-sheet/MC12XSFD3.pdf English documents 1525757 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC12XSFD3.pdf MC12XSFD3, Penta 40 mOhm High-side Switch - Data Sheet /docs/en/data-sheet/MC12XSFD3.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.0 N N MC12XSFD3, Penta 40 mOhm High-side Switch - Data Sheet 1.5 MB MC12XSFD3 N 1426112063698737473724 /docs/en/data-sheet/MC12XSFD4.pdf 2015-01-20 1421772453675685586337 PSP 2 Feb 18, 2015 Data Sheet The 12XSF is the latest SMARTMOS<sup>&#174;</sup> achievement in DC motors and lighting drivers for industrial applications. None /docs/en/data-sheet/MC12XSFD4.pdf English documents 1512087 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC12XSFD4.pdf MC12XSFD4, Dual 8.0 mOhm and Dual 21 mOhm High-side Switch - Data Sheet /docs/en/data-sheet/MC12XSFD4.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.0 N N MC12XSFD4, Dual 8.0 mOhm and Dual 21 mOhm High-side Switch - Data Sheet 1.5 MB MC12XSFD4 N 1421772453675685586337 /docs/en/data-sheet/MC12XSFD1.pdf 2015-01-22 1421882509252748558821 PSP 3 Jan 21, 2015 Data Sheet The 12XSF is the latest SMARTMOS<sup>&#174;</sup> achievement in DC motors and lighting drivers. None /docs/en/data-sheet/MC12XSFD1.pdf English documents 1669869 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC12XSFD1.pdf MC12XSFD1, 17 mOhm and 7.0 mOhm High-side Switches - Data Sheet /docs/en/data-sheet/MC12XSFD1.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.0 N N MC12XSFD1, 17 mOhm and 7.0 mOhm High-side Switches - Data Sheet 1.7 MB MC12XSFD1 N 1421882509252748558821 /docs/en/data-sheet/MC07XSF517.pdf 2013-07-12 1373574854701713846473 PSP 4 Sep 30, 2013 Data Sheet The 07XSF517 is the latest achievement in lighting drivers. It belongs to an expanding family to control and diagnose incandescent lamps and light-emitting diodes (LEDs) with enhanced precision. It combines flexibility through daisy chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety and robustness. None /docs/en/data-sheet/MC07XSF517.pdf English documents 2185131 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC07XSF517.pdf MC07XSF517, Triple 7.0 mOhm and Dual 17 mOhm High Side Switch - Data sheet /docs/en/data-sheet/MC07XSF517.pdf documents 980000996212993340 Data Sheet N en None Y pdf 2.0 N N MC07XSF517, Triple 7.0 mOhm and Dual 17 mOhm High Side Switch - Data sheet 2.2 MB MC07XSF517 N 1373574854701713846473 /docs/en/data-sheet/MC17XSF500.pdf 2013-07-12 1373566740712713896158 PSP 5 Sep 30, 2013 Data Sheet The 17XSF500 is the latest achievement in lighting drivers. It belongs to an expanding family to control and diagnose incandescent lamps and light-emitting diodes (LEDs) with enhanced precision. It combines flexibility through daisy chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety, and robustness. None /docs/en/data-sheet/MC17XSF500.pdf English documents 1835435 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC17XSF500.pdf MC17XSF500, Penta 17 mOhm High Side Switch - Data Sheet /docs/en/data-sheet/MC17XSF500.pdf documents 980000996212993340 Data Sheet N en None Y pdf 2.0 N N MC17XSF500, Penta 17 mOhm High Side Switch - Data Sheet 1.8 MB MC17XSF500 N 1373566740712713896158 ユーザ・ガイド 1 /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf 2018-07-18 1462565398894733056482 PSP 8 Jul 18, 2018 User Guide The FRDM-17XSF5-EVB, FRDM-17XSF4-EVB, FRDM-08XSF4-EVB and FRDM-40XSF5-EVB evaluation boards feature one of the ICs belonging to NXP&#8217;s 12XSF high-side switch products family. None /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf English documents 4756895 None 132339537837198660 2022-12-07 N /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf KTFRDM-MC12XSFUG, FRDM-17XSF5-EVB, FRDM-17XSF4-EVB, FRDM-08XSF4-EVB and FRDM-40XSF5-EVB evaluation boards - User's guide /docs/en/user-guide/KTFRDM-MC12XSFUG.pdf documents 132339537837198660 User Guide N en None Y pdf 2.0 N N KTFRDM-MC12XSFUG, FRDM-17XSF5-EVB, FRDM-17XSF4-EVB, FRDM-08XSF4-EVB and FRDM-40XSF5-EVB evaluation boards - User's guide 4.8 MB KTFRDM-MC12XSFUG N 1462565398894733056482 true Y Products
