Flexray Adaptor Board for NXP FRDC
The adaptor boards allow routing from NXP® host evaluation boards and Our FlexRay™ DaughterCard (FLXRAYIPMFR4200 and MFR4310). The figure below shows the concept of the design:
| Adaptor Board | Part Number | |
| MPC500 | FLXRAYADPT500 | FLXRAYADPT500 |
| MPC5500 | FLXRAYADPT5500 | FLXRAYADPT5500 |

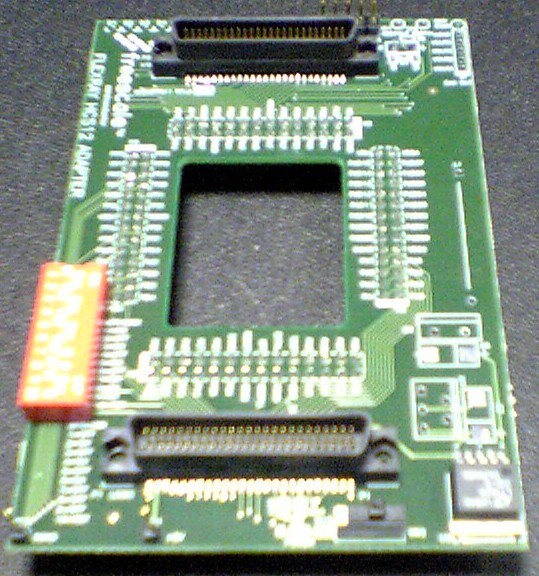

| S12 | SCFLXRAYADPTS12 (different from S12X) | SCFLXRAYADPTS12 |
The required adaptor board must be ordered separately when ordering the FLXRAYIPMFR4200 or MFR4310FRDC. They are connected together by two IP connectors (logic and I/O). The logic connector routes all interfacing signals and the I/O connector routes a number of other signals for monitoring.
The EVBs which are used with the adaptor boards are:- CME564 available from Axiom Manufacturing
- MPC5553DEMO / MPC5554DEMO available from NXP
- M68KIT912DP256 available from NXP
