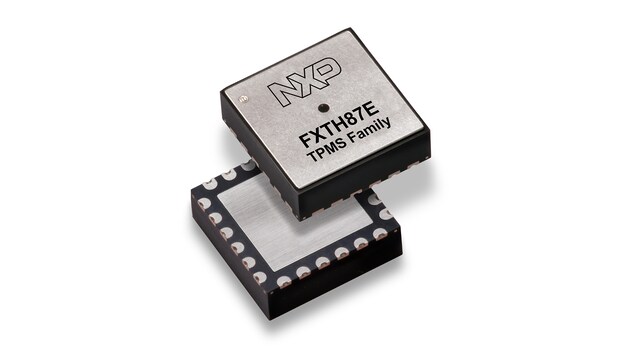

FXTH87E Tire Pressure Monitor Sensor (TPMS) Family

FXTH87E アーカイブス
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

The FXTH87E is a highly integrated tire pressure sensor family and is providing the following features.

  • Small footprint in a 7mm x 7mm package
  • Low power consumption at 180 nA tvp (Stand-by current @ 3.0V, 25°C)
  • Large memory size at 16 kB
  • A field-proven dual-axis accelerometer architecture; the XZ axis offers motion detection and tire localization capabilities

製品詳細

ブロック図

FXTH87E TPMS Family Block Diagram

FXTH87E TPMS Family Block Diagram
図を取得する PDF

Features

  • QFN 7 x 7 x 2.2 mm package enables visible solder joint for inspection
  • 100–500 kPa and 100–900 kPa pressure ranges
  • Z-axis or dual XZ-axis accelerometers
  • Accelerometer standard or precision tolerances available
  • Low-power wake-up timer, free-running counter, and periodic reset is driven by LFO
  • Dedicated state machines for reduced power consumption
  • 8-bit MCU/S08 core with SIM, interrupt and debug/monitor
  • 512 Bytes RAM / 16 k Flash (8 k for NXP® library, 8 k for applications)
  • Internal 315/434 MHz RF transmitter
  • Internal 125 kHz LF receiver
  • Six multipurpose GPIO pins (including two A/D inputs)
