Half-bridge power IC for CFL lamps

UBA2024BT
製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

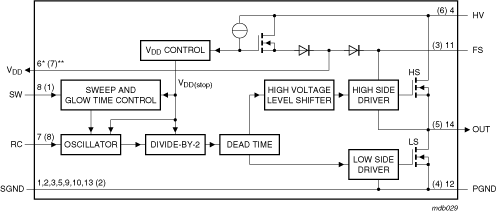

The UBA2024 is a family of high-voltage monolithic Integrated Compact Fluorescent Lamp (CFL) drivers for a large range of lamp powers. Specific versions are optimized for 230 V and 110 V mains supplies. The product family integrates full CFL controller functionality with high voltage half-bridge transistors. All products in the UBA2024 family are pin-to-pin compatible enabling a single application design covering a wide range of power ratings.

購入/パラメータ

1 結果

除外 1 NRND

パーツ

説明を表示

コンピュータ支援設計 モデル

パッケージタイプ

UBA2024BT
データ・シート

置き換え部品: UBA2024T

SO14
