Integrated GPON Optical Network Termination System-on-Chip
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

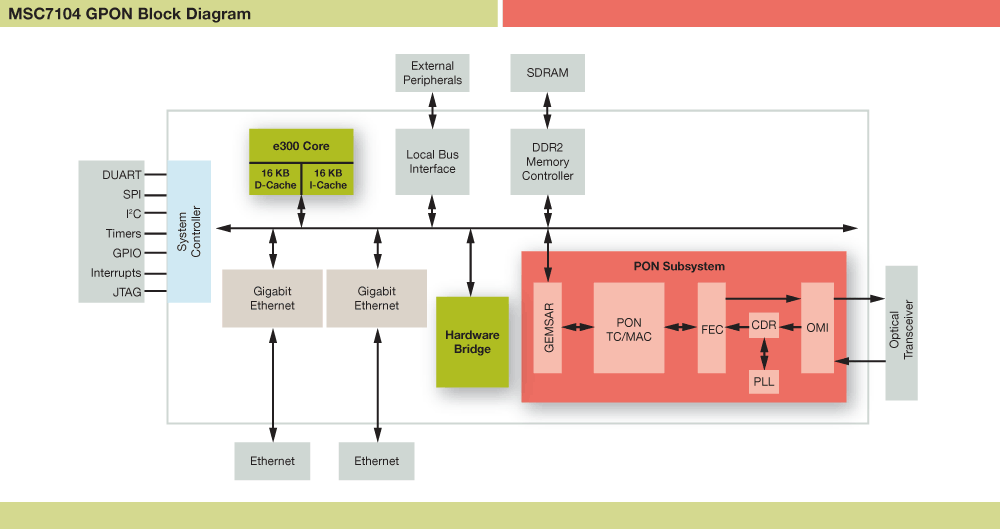

The MSC7104 GPON is a system-on-chip (SoC) solution for broadband passive optical network termination (ONT) applications. It integrates a GPON TC/MAC, Gigabit Ethernet TC/MACs and a clock and data recovery (CDR) unit to a core built on Power Architecture™ technology.
The MSC7104 GPON provides a highly integrated solution designed to minimize ONT costs through silicon integration and a reduction of external components. The MSC7104 GPON SoC device is based on NXP®’s e300 processor platform built on Power Architecture technology, which provides the foundation for the company’s PowerQUICC®™ II Pro communications processor family. The MSC7104 GPON device’s e300 core operates at 266 MHz and includes a 16 KB instruction cache and a 16 KB data cache. The SoC integrates a DDR2 memory controller, a PowerQUICC II-compatible local bus controller (LBIU), two 10/100/1000 Ethernet controllers, a dual universal asynchronous receiver/transmitter (DUART), I2C, a serial peripheral interface (SPI), an interrupt controller and parallel general-purpose input/outputs (GPIOs).
