Schematics, BOM and Gerber files for IoT Module Baseboard (OM40006)

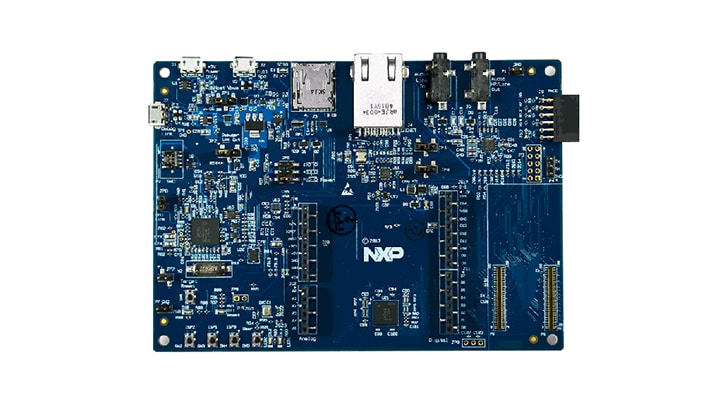

IoT Module Base Board
- アーカイブされたコンテンツは更新されておらず、参考としてのみ利用可能です。
The IoT module base board has been designed to provide easy access to the peripherals available on NXP's MCU IoT modules, such as the LPC54018 IoT module (OM40007). This baseboard provides several on-board peripherals for rapid prototyping and evaluation, including SDRAM, USB interface, LCD with touchscreen, stereo audio codec, digital microphone, Ethernet PHY, micro SD and Arduino® UNO expansion connectors.
In addition, the baseboard enables use of a wide range of development tools, including NXP's MCUXpresso Integrated Development Environment (IDE) and other popular toolchains including IAR and Keil.
