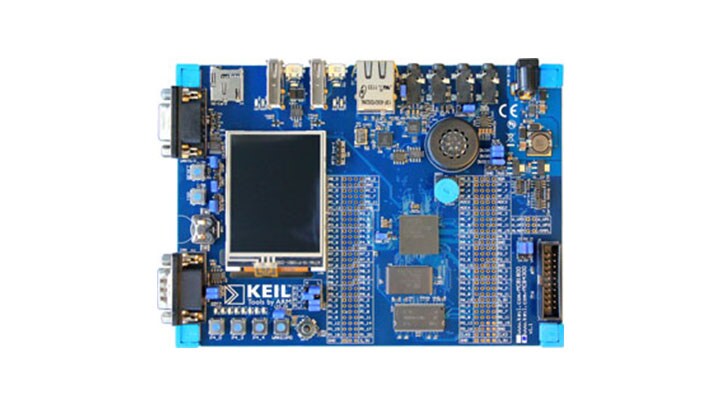

Keil MCB1857 Evaluation Board.
Keil MCB1857 Evaluation Board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The Keil MCB1857 Evaluation Board enables you to create and test working programs based on the LPC1800 family of Arm Cortex™-M3 based devices.
The MCB1857 Evaluation Board and Starter Kit includes the MDK-Arm Lite Edition Tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCB1857 evaluation board, and a Quickstart guide are included.
製品詳細
Features
Microcontroller
- 180 MHz Arm Cortex-M3 processor-based MCU in LBGA256
Memory
- 136 kB On-Chip SRAM
- 1 MB dual bank On-Chip Flash
- On-Board Memory: 16 MB NOR Flash, 4 MB Quad-SPI Flash, 16 MB SDRAM, and 16 kB EEPROM (I²C)
Connectivity
- 10/100 Ethernet Port
- High-speed USB 2.0 Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
- Full-speed USB 2.0 Host/Device interface (USB host + micro USB Device connectors)
- CAN interfaces
- Serial/UART Port
- MicroSD Card Interface
Debug
- 20-pin JTAG (0.1 inches)
- 10-pin Cortex debug (0.05 inches)
- 20-pin Cortex debug + ETM Trace (0.05 inches)
Debug Interface Connectors:
Sensors
- Digital Temperature Sensor (I²C)
Display
- Color QVGA TFT LCD with touchscreen
Audio
- Audio codec with Line-In/Out and Microphone/headphone connector + Speaker
Power Management
- Analog Voltage Control for ACD Input
User Components
- 4 user push-buttons + reset
