OM13091
アクティブ -

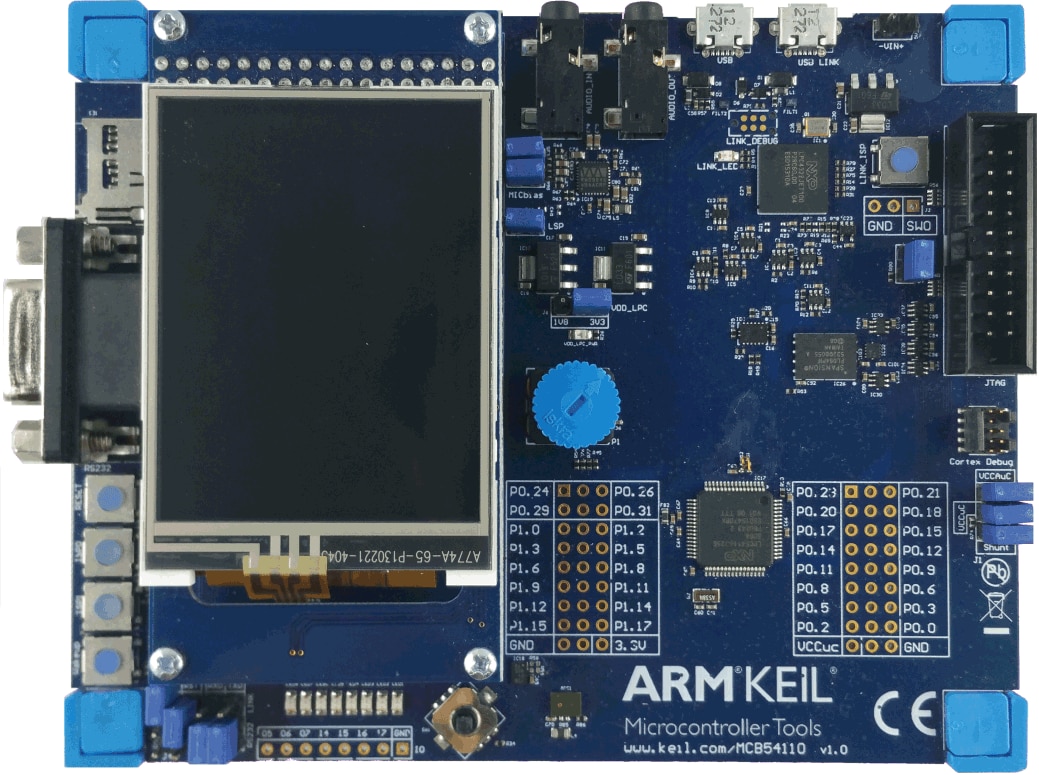

Keil MCB54110 Development Board.
Keil MCB54110 Development Board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
This board is no longer manufactured and will only be available while supplies last.
This board is no longer in production. The replacement for this board would be the LPCXpresso54114, developed by NXP to enable evaluation and prototyping with the LPC54110 family. The replacement board can be kitted with many Arduino and LPCXpresso shield boards. In particular, the kit version of the replacement board is OM13090 which includes the LPCXpresso54114 board and Mic/Audio/OLED (MAO) shield board.
The Keil MCB54110 Development Board introduces you to the NXP® LPC54110 family and allows you to create and test working programs for this advanced architecture.
The MCB54110 Development Board include MDK-Arm Evaluation Tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Many sample applications including several USB examples and quick start guide for the MCB54110 are included.
Order Number: OM13091
製品詳細
Features
Memory
- LPC54114J256BD64 and onboard memory 8 MB SPI Flash
- MicroSD Card Interface
Connectivity
- Full speed USB ports with micro A/B connector
- Serial/UART Port (RS-232)
Power Management
- Analog Voltage Control for ADC Input
Debug
- Support for external debug probe
Display
- Color QVGA TFT LCD with touchscreen
Audio
- Audio codec with line in/out
User Components
- 8 x user LEDs, plus Reset, ISP (2), and user buttons
