Low-noise amplifier evaluation board with BGU7003 for 2.4 GHz ISM/WLAN
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

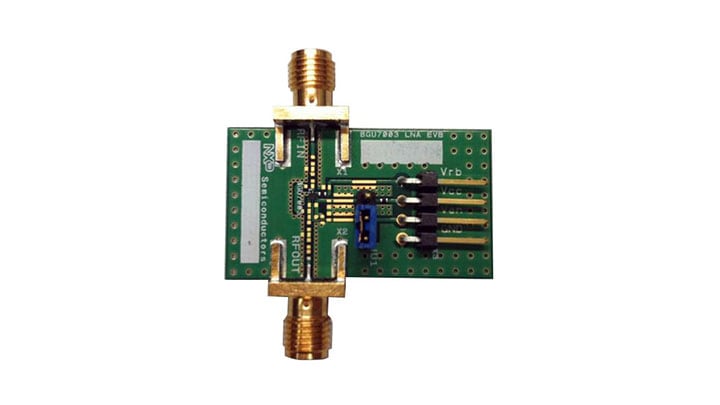

The BGU7003 LNA evaluation board simplifies the evaluation of the BGU7003 LNA for the 100 MHz FM application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU7003, including the input and output matching circuitry as well as a decoupling capacitors to optimize the performance. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7003 board is optimized for 2.8 V operation and consumes about 5 mA.
製品詳細
Features
Connectivity
- Two SMA connectors for input and output connection to RF test equipment
Power Management
- Evaluation of the power on settling time ton and the power off settling time toff
Target Applications
- FM applications, like portable audio devices and mobile computing devices like feature phones, tablet PC's and notebook PC's.
