Mechatronics Tower System Module
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

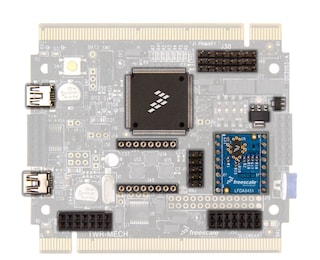

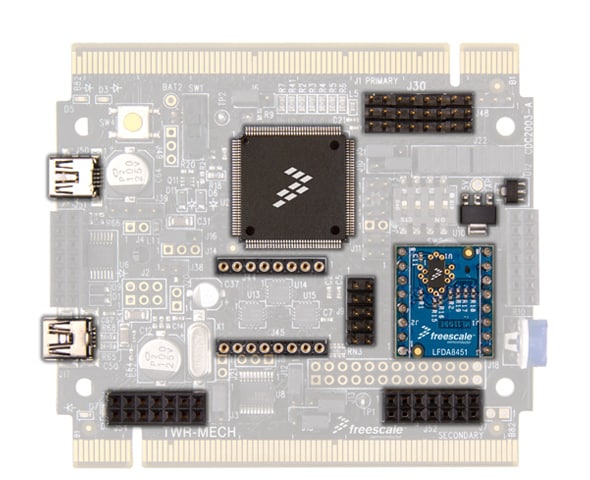

The NXP® Tower® Mechatronics Board can be demonstrated within NXP Mechatronics Robot, an easy-to-use mechatronics development and demonstration platform.
- The Tower System Mechatronic Board has a 3-axis accelerometer, 3-axis magnetometer and a 12-channel touch sensor
- It is programmable in C/C++ using CodeWarrior® and an on-board OSBDM flash programming tool
- For fast prototyping or for individuals without C/C++ experience, the Tower System Mechatronics Board is supported by Stick OS
製品詳細
Features
Microcontroller
- MCF52259 32-bit MCU with 64K RAM, 512K flash
Connectivity
- Optional plug in sensor daughter boards available for: touch, accelerometer, magnetometer
- Integrated open source BDM (8-bit 9S08JM60 USB enabled MCU)
Debug
-
Integrated open source BDM (8-bit 9S08JM60 USB enabled MCU)
User Components
- MPR121 capacitive touch sensor
- MMA8451Q 3-axis accelerometer
Tools and OS Support
- Supported by Stick OS
- Programmable in C/C++ using CodeWarrior®
- Control up to eight PWM RC servo motors (compatible with VEX™ 3 wire servos)
- Can be used standalone, or plugged into the Tower® System
