NXP I²C demonstration board 2005-1 kit
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

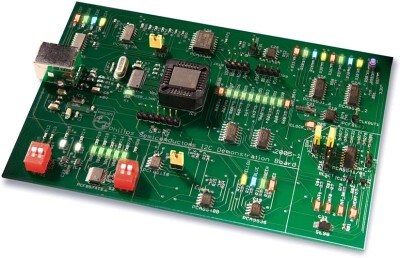

The I²C Demonstration Board 2005-1 is an I²C-based system that allows field application engineers, designers, and educators to use their Personal Computer (PC) to easily test, demonstrate, and experiment with I²C interface devices. The demonstration board is a valuable training tool that allows multiple operations to be performed in a setting similar to a real system environment.
As the inventor and world leader in I²C devices, we have a vast portfolio of I²C interface products used to control, expand, and interconnect I²C-bus systems. These products include general purpose I/O expanders, LED blinkers/dimmers/controllers, repeaters/hubs/extenders, real-time clock/calendars, temperature sensors, DIP switches, multiplexers and switches, bus controllers, and serial EEPROMs.
製品詳細
Features
Connectivity
- I2C speeds up to 400 kHz
Sensors
- External Temperature Sensor
Support
- PC software for easy, point-and-click device control
- Software-controllable 3.3- and 5-V power supplies
- USB-based solution
- External Temperature Sensor. The remote channel of the SA56004 can monitor a diode junction such as the substrate PNP of a microprocessor or a diode-connected transistor such as a 2N3904 (NPN) or 2N3906 (PNP). With factory trimming, remote sensor accuracy of ±1 °C is achieved.
