Octal SMBus and I2C registered interface
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

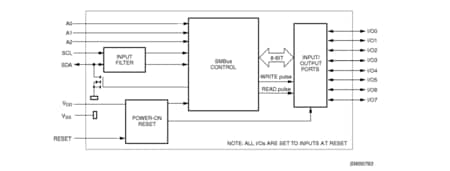

The PCA9556 is a silicon CMOS circuit which provides parallel input/output expansion for SMBus applications. The PCA9556 consists of an 8-bit input port register, 8-bit output port register, and an SMBus interface. It has low current consumption and a high impedance open drain output pin, I/O0.
The SMBus system controller can reset the PCA9556 in the event of a timeout by asserting a LOW on the reset input. The SMBus system controller can also invert the PCA9556 inputs by writing to the active HIGH polarity inversion bits. Finally, the system controller can enable the PCA9556?s I/Os as either inputs or outputs by writing to the configuration register.
The power-on reset puts the registers in their default state and initializes the SMBus state machine. The RESET pin causes the same reset/initialization to occur without depowering the part.
The PCA9557 8-bit I²C SMBus I/O port with reset is the higher performance pin-for-pin replacement for the PCA9556.
