PCA8538 evaluation board
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

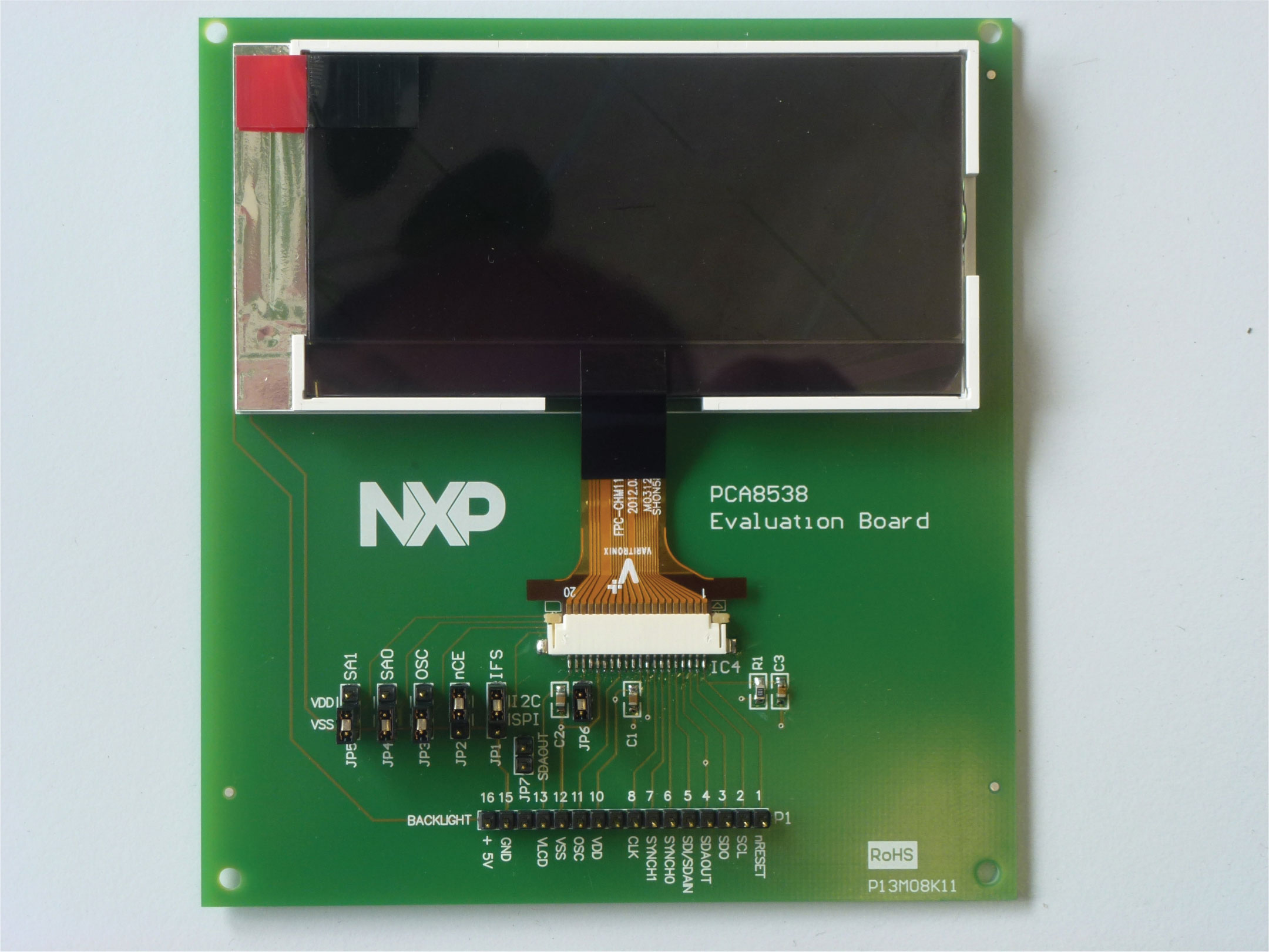

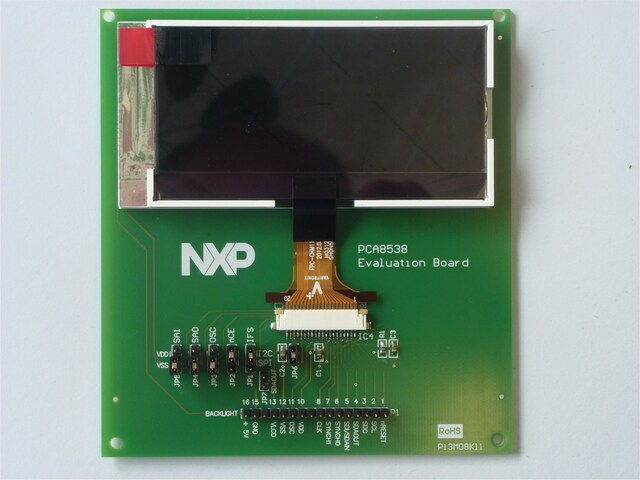

This board was developed in orde to provide a tool for engineers, wishing to demonstrate and evaluate this LCD driver, and to get hands-on experience with writing code for it. Code written using this board can serve as an example for the final application. This enables rapid prototyping. The board can be connected to any existing application with either I²C-bus or SPI-bus interface. This application then needs to provide also the power supply, with the supply voltage ranging from 2.5 V to 5.5 V.
Related demoboard: OM13518
製品詳細
Features
Connectivity
- Jumpers for interface selection (I2C or SPI)
- Connector pins for easy connection to external microcontroller or application
- Jumper for selection of internal or external oscillator
Display
- Provides tool for evaluating the PCA8538 LCD driver
- Features a vertical alignment (VA) COG display module with integrated backlight
