OM13063
アクティブ -

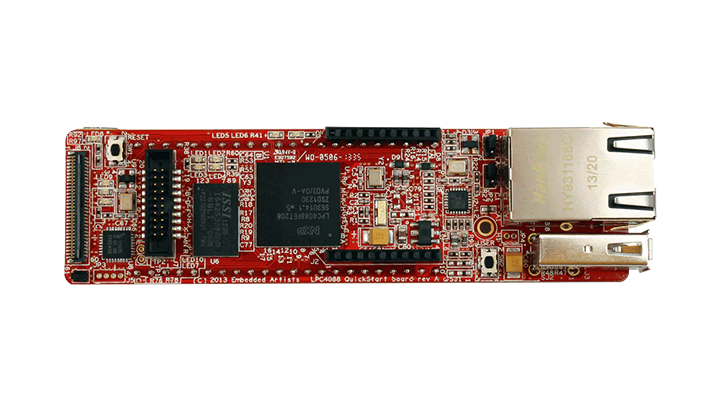

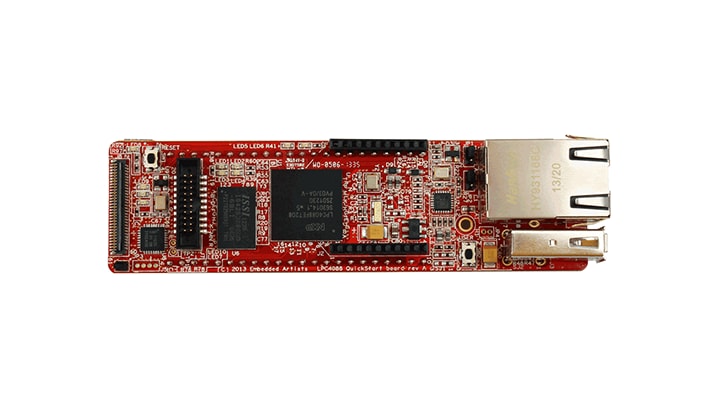

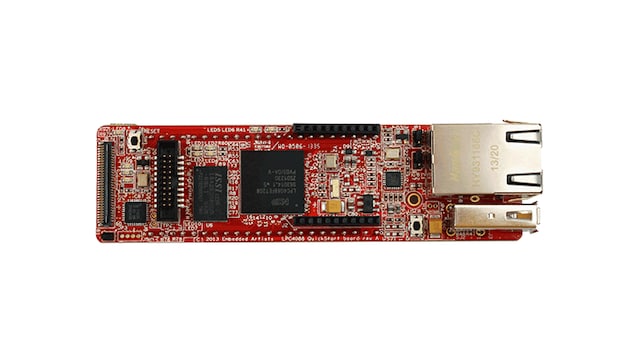

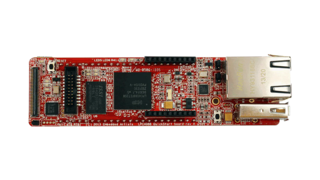

LPC4088 QuickStart Board.
Quickstart Board for LPC4088
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
This board is no longer manufactured and will only be available while supplies last.
Embedded Artists' LPC4088 QuickStart Board is an easy to use Arm Cortex-M4 rapid prototyping board in a standard through hole DIP package (44-pin), targeted at high-performance as well as low-power applications. Communication interfaces, large on-board memories and LCD controller enables graphical user inteface applications. The LPC4088 QuickStart Board is mbed Enabled, to take full advantage of the mbed platform.製品詳細
Features
Microcontroller
- Arm® Cortex®-M4 LPC4088 microcontroller in a BGA package, running at up to 120 MHz
Memory
- 8 MB Quad SPI and 512 kB on-chip program flash
- 32 MB SDRAM (x32 bit databus for high-bandwidth access), 96 kB on-chip SRAM, and 4 kB on-chip E²PROM data memory
Connectivity
- 10/100 Mbit/s Ethernet (RJ45)
- USB Host (A type) and Device (micro-B) interfaces
- Mbed HDG debug interface
- 20-pin SWD/Trace connector (Arm standard debug connector)
- 61 pin 0.3 mm pitch FPC connector for display expansion
- 20-pin XBee compatible connector for RF module add-on
Debug
- CMSIS-DAP Interface On-board (debug interface functions)
- 12 MHz main and 32.768 kHz RTC crystals
