RF Transistor Starter kit for NXP RF wideband transistors BFU6x0F and BFU7x0F

OM7827 アーカイブス
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

Archived content is no longer updated and is made available for historical reference only.

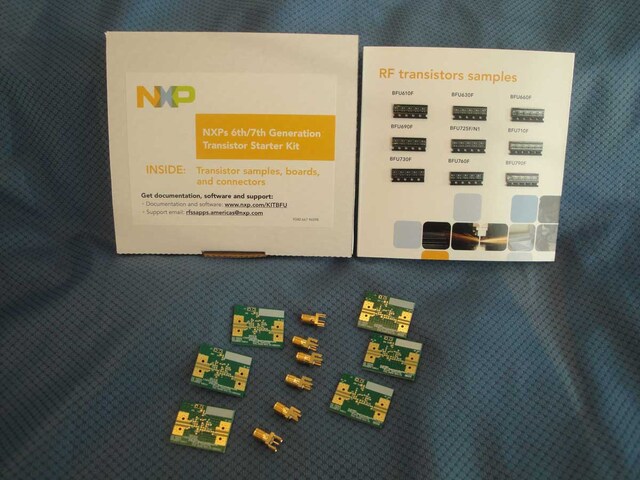

The 6th and 7th Generation RF Transistor Starter kit gives engineers a head start on designs by providing the tools needed to design and prototype circuits before releasing their PCBs to fab. Starting with a comprehensive model library, engineers can design with the 6th and 7th Generation RF devices and quickly transition to prototype circuits with the included unpopulated PCBs. The starter kit includes unpopulated PCBs with flexible configuration options for feedback and emitter degeneration to accommodate a wide range of architectures. Also included are SMA connectors and loose devices. The only additional requirements to prototype a design are 0402 sized passives and a soldering iron.

製品詳細

対応製品

RF

中電力増幅器

  • BFU610F: NPN Wideband Silicon RF Transistor
  • BFU630F: NPN Wideband Silicon RF Transistor
  • BFU660F: NPN Wideband Silicon RF Transistor
  • BFU690F: NPN Wideband Silicon RF Transistor
  • BFU710F: NPN Wideband Silicon Germanium RF Transistor
  • BFU725F: NPN Wideband Silicon Germanium RF Transistor
  • BFU730F: NPN Wideband Silicon Germanium RF Transistor
  • BFU760F: NPN Wideband Silicon Germanium RF Transistor
  • BFU790F: NPN Wideband Silicon Germanium RF Transistor

Features

Kit features

  • Enables fast circuit design and prototype
  • Flexible PCB configurations allow options for feedback and emitter degeneration
  • Standard footprints for 0402 matching and bias components
  • Included EVBs, devices and connectors
  • Device models and PCB artwork available online for fast design
