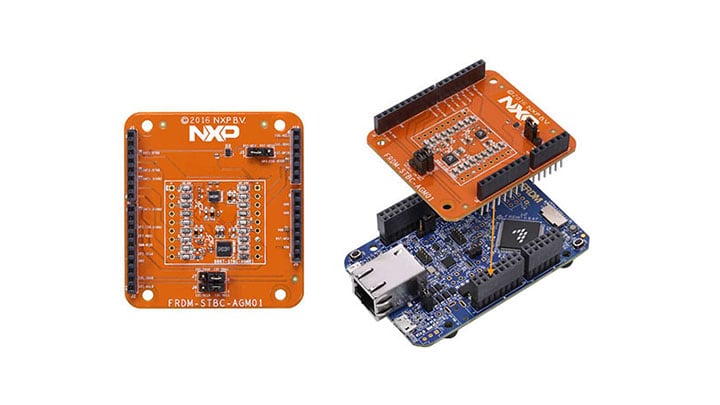

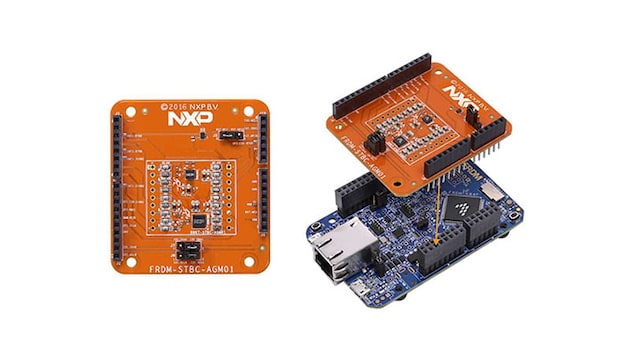

Sensor Toolbox Development Boards for a 9-Axis Solution using FXAS21002C and FXOS8700CQ

FRDM-STBC-AGM01
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

Sensor Toolbox provides a wide variety of sensor boards with compatible software tools for NXP’s 9-axis solution (FXAS21002C Gyroscope + FXOS8700CQ E-compass sensor)

Sensor Boards:

Embedded Software Framework:

  • IoT Sensing SDK (ISSDK): Provides Embedded sensor projects for the Demo and Custom Kits through MCUXpresso (Find under ‘Kits’)

Evaluation and Visualization Software:

もっと見る

製品詳細

Features

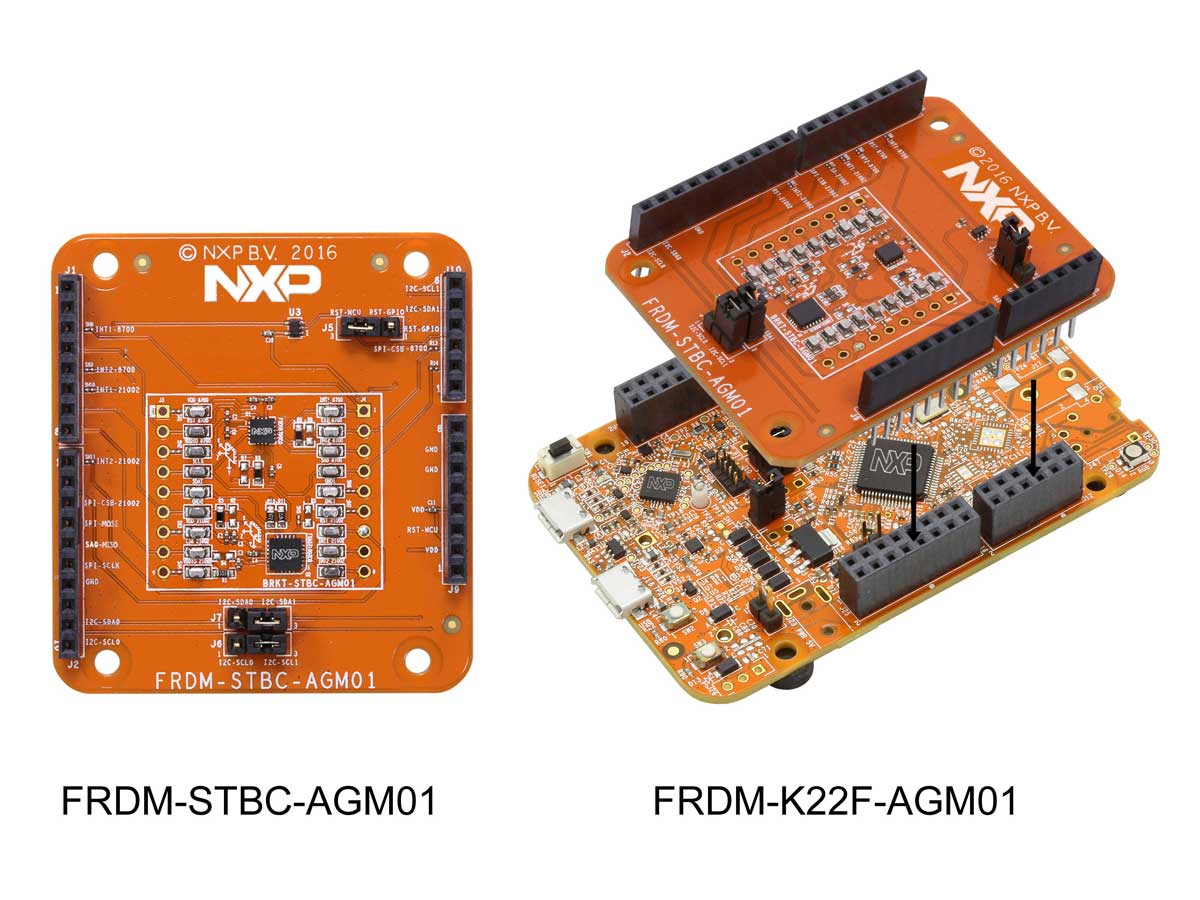

Demonstration / Custom Kits

  • Enables 'Out of the box' demos and evaluation using the Sensor Toolbox - CE
    • Graph Visualization, Register level analysis, real-time interrupt evaluation, and data logging for each sensor: FXOS8700CQ and FXAS21002C
  • Enables embedded sensor project development using IoT Sensing SDK
    • Example projects for both sensors such as interrupt, polling and FIFO based streaming
    • Algorithms such as Sensor Fusion and Pedometer
  • Enables visualization of 9-Axis sensor data and orientation results using Sensor Fusion Visualization Software

Sensor Shield Board

  • Compatible with Arduino® and most NXP Freedom development boards

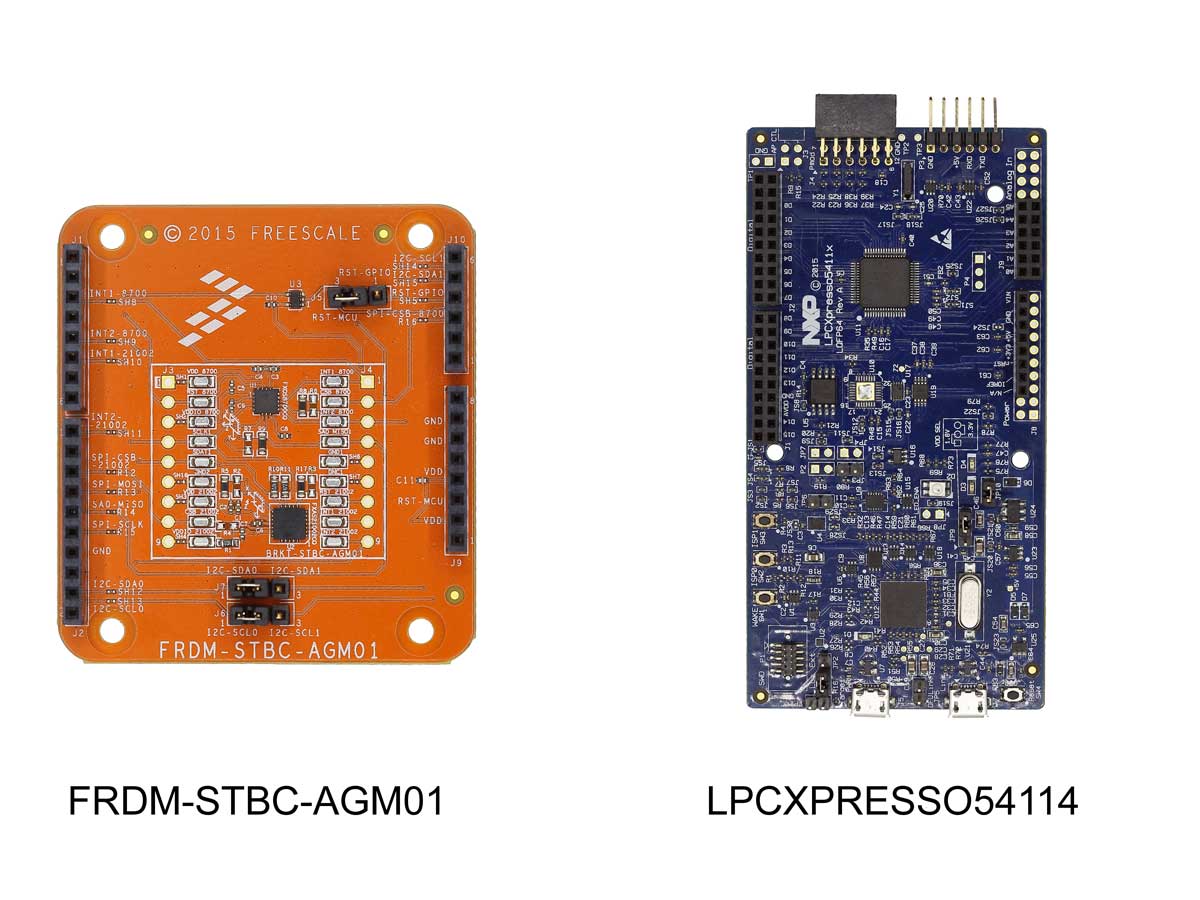

  • Can be paired with MCUs such as LPCXpresso54114 to make a custom kit
  • Allows evaluation of current consumption and pin voltage characteristics

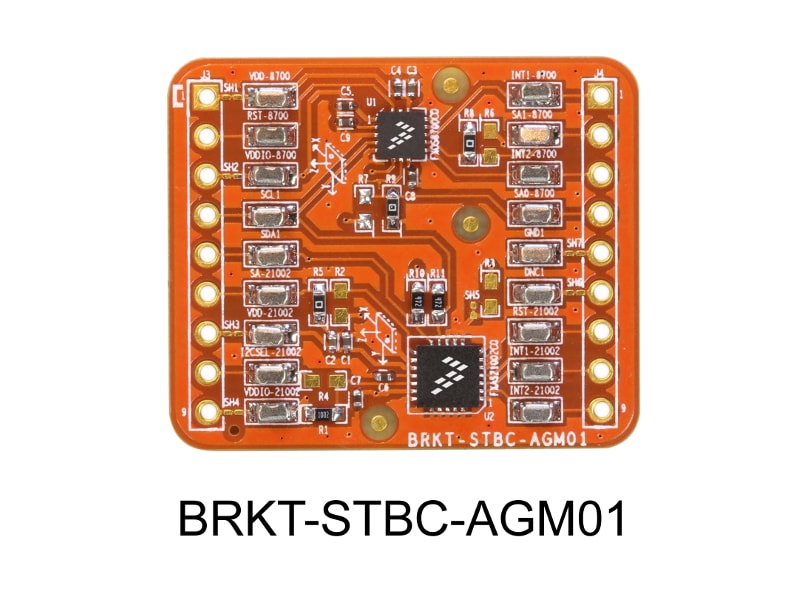

Breakout board

  • Small form factor with the same design as the FRDMSTBC-AGM01
  • Enables easy prototyping: Can be easily wired or clipped onto host systems
