Small Engine Control

KIT912P812ECUEVM 製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

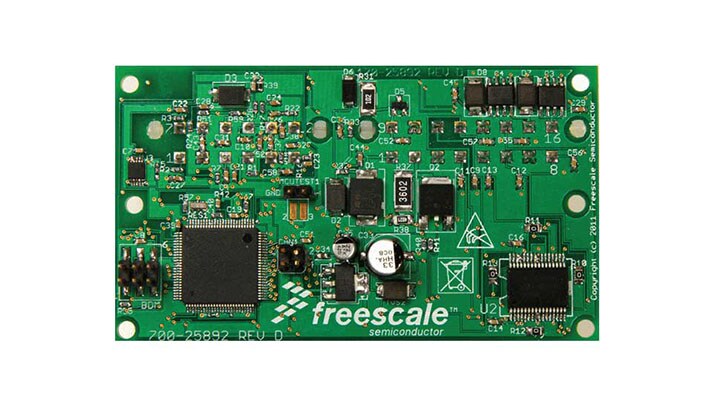

This reference design board supports the NXP® MM912_P812 engine control IC combining an MCU (S12P) and analog control die (MC33812) intended for motorcycle and other single/dual cylinders small engine control applications.

Analog control IC consists of three integrated low side drivers, one pre-driver, a +5.0 V, voltage preregulator, an MCU watchdog circuit, an ISO 9141 K-Line interface, and a parallel interface for MCU communication.

Archived content is no longer updated and is made available for historical reference only.

製品詳細

ブロック図

Small Engine Control

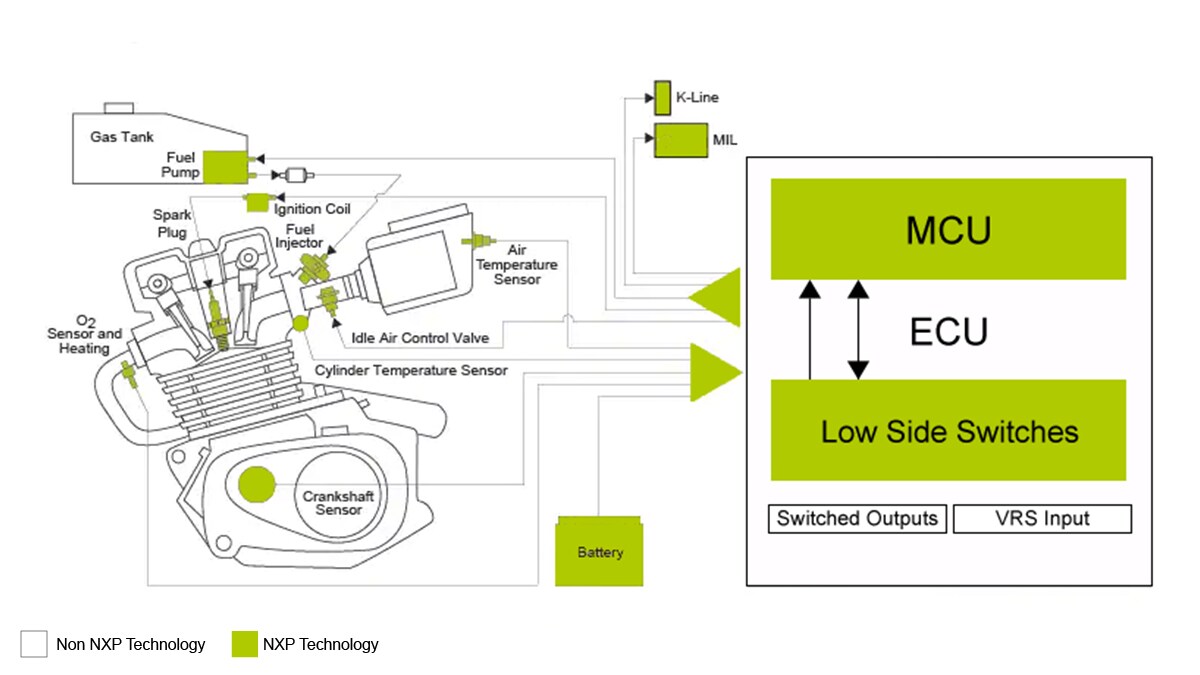

Small Engine Control Block Diagram
図を取得する PDF

Features

Power

  • VCC voltage pre-regulator provides +5.0 V power for the MCU
  • Designed to operate over the range of ~4.7 V ≤ VPWR ≤ 36 V

Communication

  • ISO-9141 K-Line transceiver for communicating diagnostic messages
  • All signal lines are accessible

Operation

  • Lamp driver current limit 1.5 A typical
  • Relay/Injector/Fuel pump driver current limit 4.0 A typical

Timer

  • MCU watchdog timer circuit with parallel refresh/time setting line
