Solenoid Monitor Integrated Circuit
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.

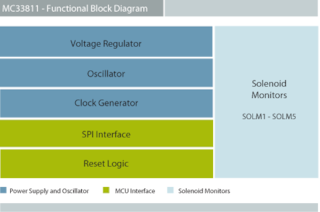

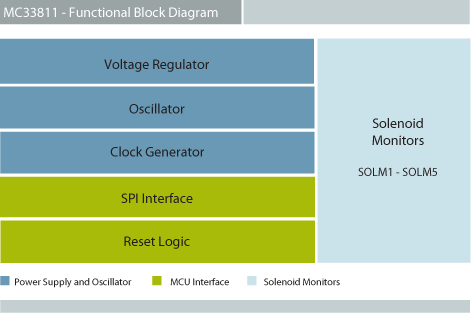

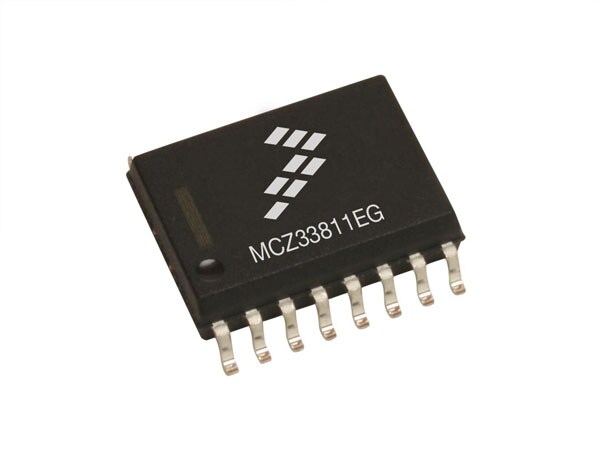

The NXP® MC33811 is a 5 channel solenoid monitor IC that is used to verify proper electrical and mechanical solenoid operation.
- Contains five solenoid driver voltage monitoring stages and a SPI for fault communication and setup
- The IC has the ability to determine the correct movement of solenoid armatures by analyzing the variation in the voltage profile, across the solenoid driver MOSFET, which represents the actual solenoid current profile
- These features, along with cost effective packaging, make the MC33811 ideal for powertrain solenoid monitoring applications
製品詳細
Features
System Features
- Typical operating voltage range, 10.5 < VPWR > 15.5 volts
- Interfaces to 3.3 and 5 volt microprocessors via SPI protocol
- Reset pin to initialize all 5 fault outputs
- Internal Voltage Regulator
- Internal Oscillator
- Unique solenoid current profile detection circuitry
- This product is included in product longevity program, with assured supply for a minimum of 15 years after launch
