SPI ±20/20g, ±50/50g, ±100/100g, Medium-g, Digital or Analog Accelerometer
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Targeting automotive applications, the MMA62xx family provides dual axis (x and y) silicon capacitive, micro-machined accelerometers with serial peripheral interface (SPI)-compatibility.
- Incorporates full digital signal processing for filtering, trim and data formatting
- Includes optimization for analog output
- Offers an over-damped transducer
製品詳細

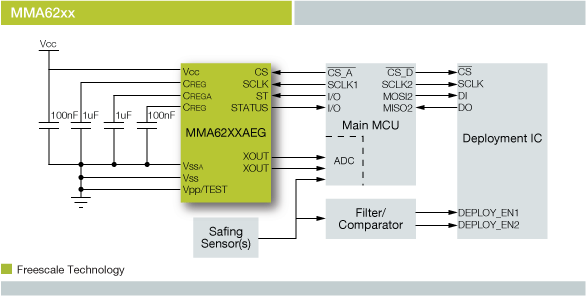

ブロック図
Features
Key Features
- Available in ±20/20g, ±50/50g, or ±100/100g versions. Additional g-ranges between 20 and 100g may be available upon request
- Full-scale range is independently specified for each axis
- Selection of low-pass filters
- First order IIR high-pass filter option
- Ratiometric analog voltage output
- Capture/hold input for system-wide synchronization support
- 3.3 or 5-volt single supply operation
- On-chip temperature sensor and voltage regulator
- Internal self-test
- Minimal external component requirements
- Pb-free 20-pin SOIC package
- Automotive AE -Q100 qualified
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MMA62xx is included in the 15-year program.
部品番号： MMA6255AKEG.
