TEA1936XDB1463 - Multi Standard 45W Mobile Charging.

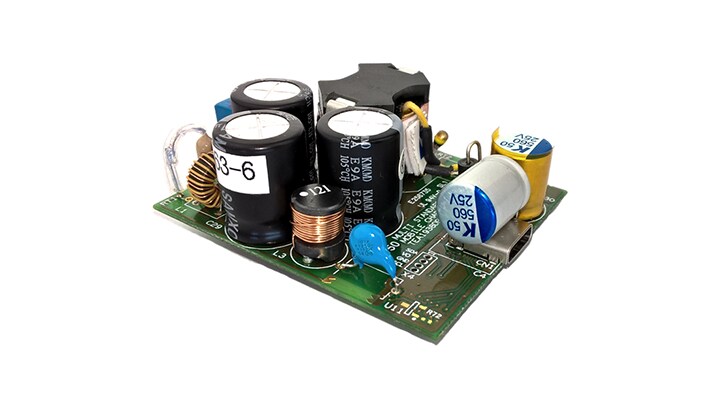

- TEA1936XDB1463 demo board
- Quick start guide
TEA1936XDB1463 - Multi Standard 45W Mobile Charging
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The Multi-Standard 45W Mobile Charger enables the design of power supplies featuring extreme low standby power with the output voltage in full regulation, very high efficiency and high reliability. The NXP chipset used is targeting mobile and notebook power supplies with power requirements up to 100W. Supplies can be designed easily and with a minimum number of external components.
The Multi-Standard Charger supports the following standards:
- USB PD3.0 / PPS
- USB PD2.0
- QC3.0 and QC2.0 certified
製品詳細
Key Parametrics
| Symbol | Parameter | Value |
|---|---|---|
| Vi | input voltage | 90 to 264 V |
| fi | input frequency | 47 to 64 Hz |
| Vo | output voltages | 5 V, 9 V, 12 V |
| Iout | maximum output current | 3 A (@ 5 V), 3 A (@ 9 V), 2.25 A (@ 12 V) |
| Pout | output power [nominal]
[peak] |
27.0 W
28.5 W |
| n | efficiency [average] | > 90 % |
| Pi(noload) | no-load input power | < 30 mW |
| Tambient_adapt | ambient temperature adapter inside casing | -40 °C to 85 °C |
| - | energy standard | ENERGY STAR v6.0,
CoC. tier 2 |
| - | Electro Magnetic Interference (EMI) | CISPR22 compliant,
EN 55022 |
| L x B x H | board dimensions | 48 mm x 41 mm x 21 mm |
| TEA19361 | Primary Flyback Controller | |
| TEA1993 | Synchronous Rectification Controller | |
| TEA19051 | QC4.0/QC4.0+/PPS Controller | PD3.0= 5V/3A, 9V/3A, 12V/2.25A
QC2.0/3.0= 3.3V…. 12V / 27W (max) |
