Universal LCD driver for low multiplex rates

PCF8576T
製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

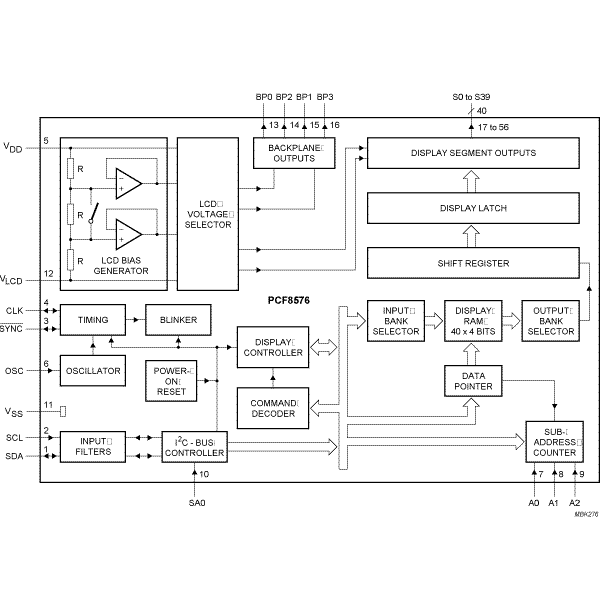

The PCF8576 is a peripheral device which interfaces to almost any Liquid Crystal Display (LCD) with low multiplex rates. It generates the drive signals for any static or multiplexed LCD containing up to four backplanes and up to 40 segments and can easily be cascaded for larger LCD applications. The PCF8576 is compatible with most microprocessors/microcontrollers and communicates via a two-line bidirectional I²C-bus. Communication overheads are minimized by a display RAM with auto-incremented addressing, by hardware subaddressing and by display memory switching (static and duplex drive modes).

購入/パラメータ

1 結果

除外 1 NRND

パーツ

説明を表示

コンピュータ支援設計 モデル

パッケージタイプ

Max number of elements

Segments/elements of MUX 1:1

Segments/elements of MUX 1:2

Segments/elements of MUX 1:3

Segments/elements of MUX 1:4

VDD1 [min] (V)

VDD1 [max] (V)

VLCD [min] (V)

VLCD [max] (V)

ffr

Cascade for larger conf

PCF8576T
データ・シート

VSO56

160

40

80

120

160

2

9

2

9

64.0

Y

N true 0 PSPPCF8576Tja 8 アプリケーション・ノート Application Note t789 2 サポート情報 Supporting Information t531 1 データ・シート Data Sheet t520 1 パッケージ情報 Packing Information t935 1 ユーザ・ガイド User Guide t792 2 ja ja ja データ・シート Data Sheet 1 1 4.0 English 1442069208854706251865 PSP 212.0 KB None None documents None 1442069208854706251865 /docs/en/data-sheet/PCF8576.pdf 212000 /docs/en/data-sheet/PCF8576.pdf PCF8576 documents N 2015-09-12 Universal LCD driver for low multiplex rates /docs/en/data-sheet/PCF8576.pdf /docs/en/data-sheet/PCF8576.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Oct 2, 2001 980000996212993340 Data Sheet Y N Universal LCD driver for low multiplex rates アプリケーション・ノート Application Note 2 2 1.0 English 1442086925102718658114 PSP 931.7 KB None None documents None 1442086925102718658114 /docs/en/application-note/AN11267.pdf 931745 /docs/en/application-note/AN11267.pdf AN11267 documents N N 2016-07-11 EMC and system level ESD design guidelines for LCD drivers /docs/en/application-note/AN11267.pdf /docs/en/application-note/AN11267.pdf Application Note N 645036621402383989 2025-02-10 pdf N en Mar 6, 2015 645036621402383989 Application Note Y N EMC and system level ESD design guidelines for LCD drivers 3 1.0 English 1442087330310721534478 PSP 763.2 KB None None documents None 1442087330310721534478 /docs/en/application-note/AN10853.pdf 763238 /docs/en/application-note/AN10853.pdf AN10853 documents N N 2016-07-11 ESD and EMC sensitivity of IC /docs/en/application-note/AN10853.pdf /docs/en/application-note/AN10853.pdf Application Note N 645036621402383989 2025-02-10 pdf N en Mar 14, 2013 645036621402383989 Application Note Y N ESD and EMC sensitivity of IC ユーザ・ガイド User Guide 2 4 7.0 English NXP Semiconductors developed a simple bidirectional 2-wire bus for efficient inter-IC control. This bus is called the Inter-IC or I2C-bus. Only two bus lines are required: a serial data line (SDA) and a serial clock line (SCL). Serial, 8-bit oriented, bidirectional data transfers can be made at up to 100 kbit/s in the Standard-mode, up to 400 kbit/s in the Fast-mode, up to 1 Mbit/s in the Fast-mode Plus (Fm+), or up to 3.4 Mbit/s in the High-speed mode. 1442125286808710770774 PSP 751.0 KB None None documents None 1442125286808710770774 /docs/en/user-guide/UM10204.pdf 750958 /docs/en/user-guide/UM10204.pdf UM10204 documents N N 2016-07-12 I2C-bus specification and user manual /docs/en/user-guide/UM10204.pdf /docs/en/user-guide/UM10204.pdf User Guide N 132339537837198660 2024-10-24 en Oct 1, 2021 132339537837198660 User Guide Y N I2C-bus specification and user manual 6.0 Japanese 1442125286808710770774ja PSP 751.0 KB None None documents None 1442125286808710770774 /docs/ja/user-guide/UM10204.pdf 750958 /docs/ja/user-guide/UM10204.pdf UM10204 documents N N 2016-07-12 I2C-bus specification and user manual /docs/ja/user-guide/UM10204.pdf /docs/ja/user-guide/UM10204.pdf User Guide N 132339537837198660 2024-10-24 pdf N ja Apr 28, 2014 132339537837198660 User Guide Y N I2C-bus specification and user manual 5 1.0 English 1442125429801702674389 PSP 749.6 KB Registration without Disclaimer None documents Extended 1442125429801702674389 /secured/assets/documents/en/user-guide/UM10528.pdf 749626 /secured/assets/documents/en/user-guide/UM10528.pdf UM10528 documents Y N 2012-02-06 PCA9632 demonstration board OM13269 /webapp/Download?colCode=UM10528&lang_cd=ja /secured/assets/documents/en/user-guide/UM10528.pdf User Guide N 132339537837198660 2025-02-10 pdf Y en Feb 6, 2012 132339537837198660 User Guide Y N PCA9632 demonstration board OM13269 パッケージ情報 Package Information 1 6 1.0 English 1455079514721718165922 PSP 531.8 KB None None documents None 1455079514721718165922 /docs/en/package-information/SOT190-1.pdf 531803 /docs/en/package-information/SOT190-1.pdf SOT190-1 documents N N 2016-02-12 plastic very small outline package; 56 leads /docs/en/package-information/SOT190-1.pdf /docs/en/package-information/SOT190-1.pdf Package Information N 302435339416912908 2024-07-12 pdf N en Feb 8, 2016 302435339416912908 Package Information Y N plastic very small outline package; 56 leads パッケージ情報 Packing Information 1 7 1.0 English 1442131707659708001255 PSP 199.9 KB None None documents None 1442131707659708001255 /docs/en/packing/SOT190-1_118.pdf 199868 /docs/en/packing/SOT190-1_118.pdf SOT190-1_118 documents N N 2013-04-17 VSO56; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 /docs/en/packing/SOT190-1_118.pdf /docs/en/packing/SOT190-1_118.pdf Packing Information N 145666923842250347 2024-07-12 pdf N en Apr 15, 2013 145666923842250347 Packing Information Y N VSO56; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 サポート情報 Supporting Information 1 8 1.0 English SSOP, TSSOP & VSO FOOTPRINT (WAVE SOLDERING) 1442126381432716559822 PSP 16.6 KB None None documents None 1442126381432716559822 /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf 16645 /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf SSOP-TSSOP-VSO-WAVE documents N N 2016-10-08 Footprint for wave soldering /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf Supporting Information N 371282830530968666 2024-10-21 pdf N en Oct 8, 2009 371282830530968666 Supporting Information Y N Footprint for wave soldering false 0 PCF8576T downloads ja true 1 Y PSP アプリケーション・ノート 2 /docs/en/application-note/AN11267.pdf 2016-07-11 1442086925102718658114 PSP 2 Mar 6, 2015 Application Note None /docs/en/application-note/AN11267.pdf English documents 931745 None 645036621402383989 2025-02-10 N /docs/en/application-note/AN11267.pdf EMC and system level ESD design guidelines for LCD drivers /docs/en/application-note/AN11267.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N EMC and system level ESD design guidelines for LCD drivers 931.7 KB AN11267 N 1442086925102718658114 /docs/en/application-note/AN10853.pdf 2016-07-11 1442087330310721534478 PSP 3 Mar 14, 2013 Application Note None /docs/en/application-note/AN10853.pdf English documents 763238 None 645036621402383989 2025-02-10 N /docs/en/application-note/AN10853.pdf ESD and EMC sensitivity of IC /docs/en/application-note/AN10853.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N ESD and EMC sensitivity of IC 763.2 KB AN10853 N 1442087330310721534478 サポート情報 1 /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf 2016-10-08 1442126381432716559822 PSP 8 Oct 8, 2009 Supporting Information SSOP, TSSOP & VSO FOOTPRINT (WAVE SOLDERING) None /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf English documents 16645 None 371282830530968666 2024-10-21 N /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf Footprint for wave soldering /docs/en/supporting-information/SSOP-TSSOP-VSO-WAVE.pdf documents 371282830530968666 Supporting Information N en None Y pdf 1.0 N N Footprint for wave soldering 16.6 KB SSOP-TSSOP-VSO-WAVE N 1442126381432716559822 データ・シート 1 /docs/en/data-sheet/PCF8576.pdf 2015-09-12 1442069208854706251865 PSP 1 Oct 2, 2001 Data Sheet None /docs/en/data-sheet/PCF8576.pdf English documents 212000 None 980000996212993340 2022-12-07 /docs/en/data-sheet/PCF8576.pdf Universal LCD driver for low multiplex rates /docs/en/data-sheet/PCF8576.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4.0 N Universal LCD driver for low multiplex rates 212.0 KB PCF8576 N 1442069208854706251865 パッケージ情報 1 /docs/en/packing/SOT190-1_118.pdf 2013-04-17 1442131707659708001255 PSP 7 Apr 15, 2013 Packing Information None /docs/en/packing/SOT190-1_118.pdf English documents 199868 None 145666923842250347 2024-07-12 N /docs/en/packing/SOT190-1_118.pdf VSO56; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 /docs/en/packing/SOT190-1_118.pdf documents 145666923842250347 Packing Information N en None Y pdf 1.0 N N VSO56; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 199.9 KB SOT190-1_118 N 1442131707659708001255 ユーザ・ガイド 2 /docs/ja/user-guide/UM10204.pdf 2016-07-12 1442125286808710770774ja PSP 4 Apr 28, 2014 User Guide None /docs/ja/user-guide/UM10204.pdf Japanese documents 750958 None 132339537837198660 2024-10-24 N /docs/ja/user-guide/UM10204.pdf I2C-bus specification and user manual /docs/ja/user-guide/UM10204.pdf documents 132339537837198660 User Guide N ja None Y pdf 6.0 N N I2C-bus specification and user manual 751.0 KB UM10204 N 1442125286808710770774 /secured/assets/documents/en/user-guide/UM10528.pdf 2012-02-06 1442125429801702674389 PSP 5 Feb 6, 2012 User Guide Registration without Disclaimer /secured/assets/documents/en/user-guide/UM10528.pdf English documents 749626 None 132339537837198660 2025-02-10 Y /webapp/Download?colCode=UM10528&lang_cd=ja PCA9632 demonstration board OM13269 /secured/assets/documents/en/user-guide/UM10528.pdf documents 132339537837198660 User Guide N en Extended Y pdf 1.0 Y N PCA9632 demonstration board OM13269 749.6 KB UM10528 N 1442125429801702674389 true Y Products
