WLAN LNA + Switch
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

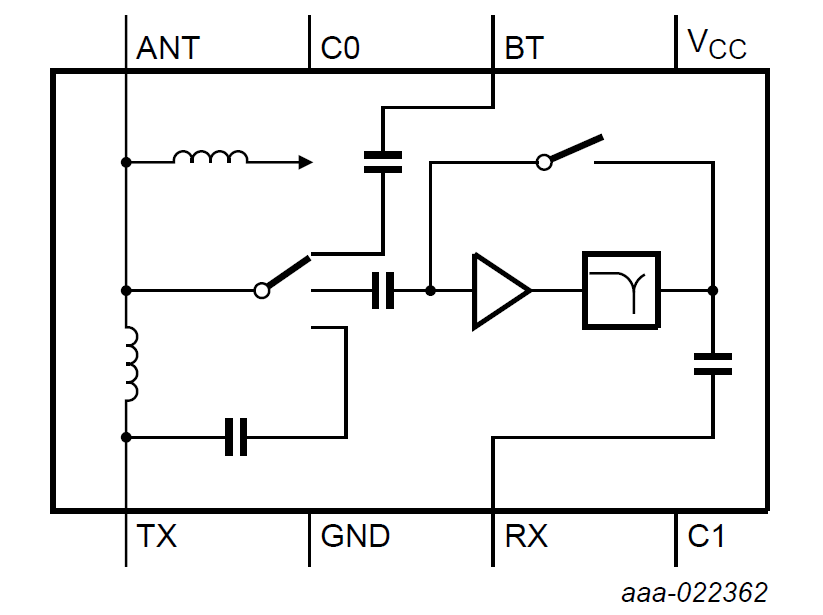

The BGS8424 is, also known as the WLAN3101H, a fully integrated MMIC low-noise amplifier, and SP3T switch for Bluetooth® path and transmit path. For WLAN applications in the 2.4 GHz to 2.5 GHz ISM band. Manufactured using the high performance QUBiC eighth generation SiGe:C technology of NXP®.
The BGS8424 couples good noise figure, linearity, efficiency, low insertion loss. Also the CMOS switches with the process stability and ruggedness are the hallmarks of the SiGe:C technology.
The BGS8424 has a 1.5 mm × 1.5 mm footprint HX2SON8 package and a maximum thickness of 330 μm.
製品詳細
Features
- Covers full ISM low band 2400 MHz to 2500 MHz
- Noise figure = 2 dB
- Gain 15.7 dB
- High input 1 dB compression point Pi(1dB) of -4.5 dBm
- High in of band IP3i of 6 dBm
- Supply voltage 2.7 V to 5.25 V
- Bypass mode current consumption of 4 μA at a supply voltage of 3.6 V
- Optimized performance at low supply current of 8.4 mA
- Integrated concurrent 5 GHz notch filter
- 4 modes of operation (high gain receive, bypass receive, transmit, and Bluetooth modes)
- Integrated matching for input and output
- Requires only one supply decoupling capacitor
- ESD protection on all pins (HBM > 2 kV)
- Small 8-pin leadless package 1.5 mm × 1.5 mm × 0.32 mm; 0.4 mm pitch
