ZigBee Evaluation Kit with NFC Commissioning

JN5169HA アクティブ
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

Note: JN5189/88T is preferred for any new design. No new software releases planned

The NXP® JN516x-EK004 evaluation kit is designed for use with the NXP JN516x range of ultra-low-power, high-performance wireless microcontrollers, which are suitable for ZigBee and other IEEE802.15.4-based network applications in areas such as Smart Lighting and Home Automation. The kit also provides the necessary components to implement contactless NFC commissioning, as well as the monitoring and control of wireless networks from devices on the Internet – the ‘Internet of Things’ (IoT).

Using the demonstration applications available for the kit, designers can quickly produce demonstrators or proof-of-concept products. The same software can then be used for end products, using JN516x ICs or modules.

The JN516x-EK004 evaluation kit can be ordered using the reference JN5169HA/EVAL1.

For support documentation, please click here.

Features

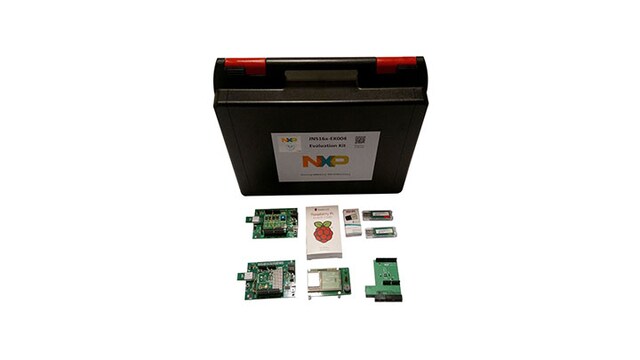

    This comprehensive kit includes carrier boards with NFC I²C tags, JN5169 modules, plug-in expansion boards, a PN7120 NFC controller board, USB dongles, and a specially programmed Raspberry Pi board. Together with a JN516x Software Developer’s Kit (SDK), JN516x-EK004 provides everything that is required for wireless network development. Special points to note are:

  • The Raspberry Pi board is programmed as an IoT Gateway, allowing the development of wireless networks that connect to the Internet and other IP-based networks
  • The NFC controller board (PN7120) is integrated into the IoT Gateway and NFC connected tags (NTAG® I²C) are integrated into the carrier boards. Together, they facilitate the quick and easy commissioning of nodes through simple NFC taps

購入オプション

JN5169HA-Image

クリックして展開

  • JN5169HA
    アクティブ

  • ZigBee Evaluation Kit with NFC Commissioning.
